- 89 - BIOS Setup

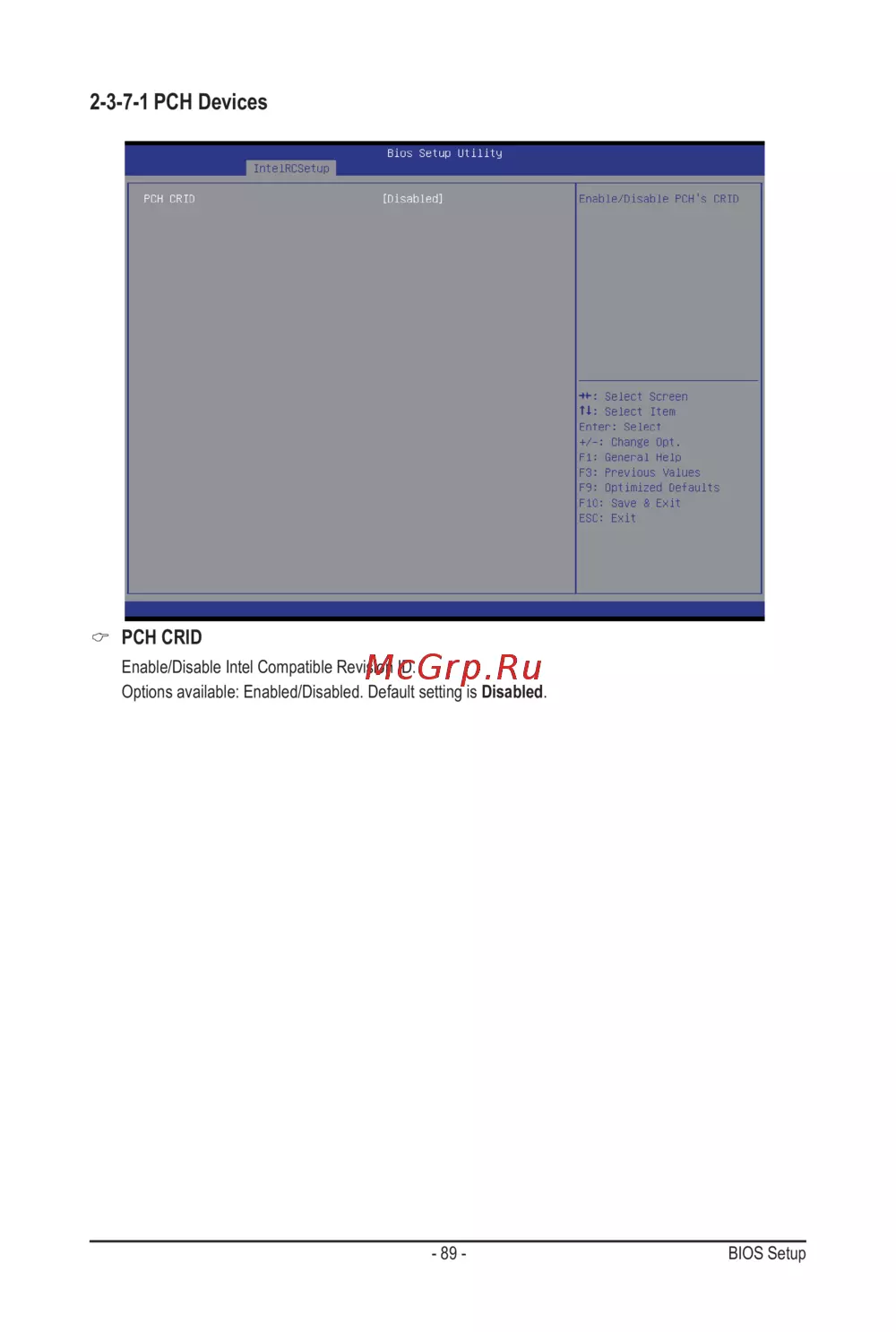

2-3-7-1 PCH Devices

PCH CRID

Enable/Disable Intel Compatible Revision ID.

Options available: Enabled/Disabled. Default setting is Disabled.
