Gigabyte MD60-SC0 (rev. 1.1) [93/127] When sata type is set to ide ahci mode

- 93 - BIOS Setup

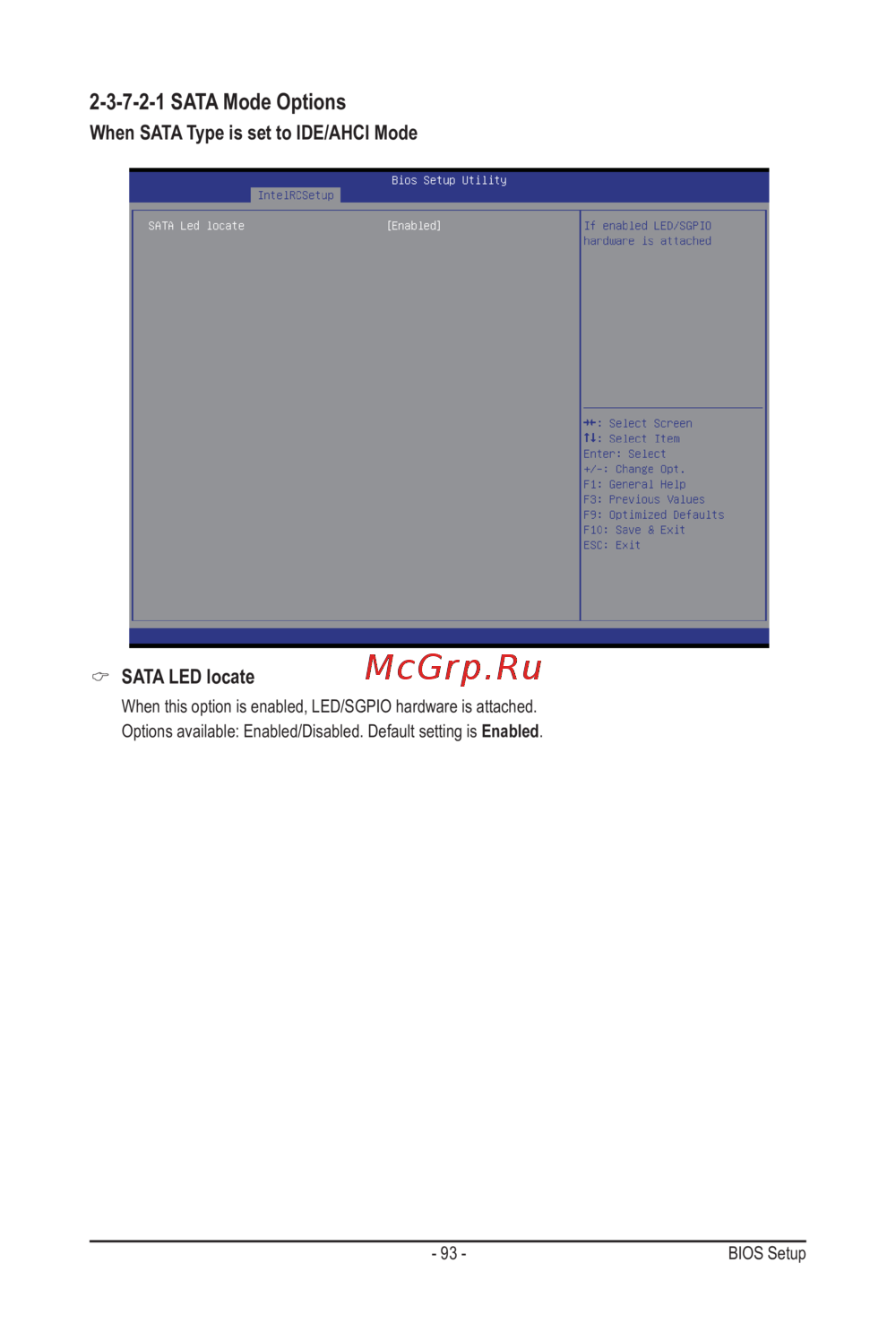

2-3-7-2-1 SATA Mode Options

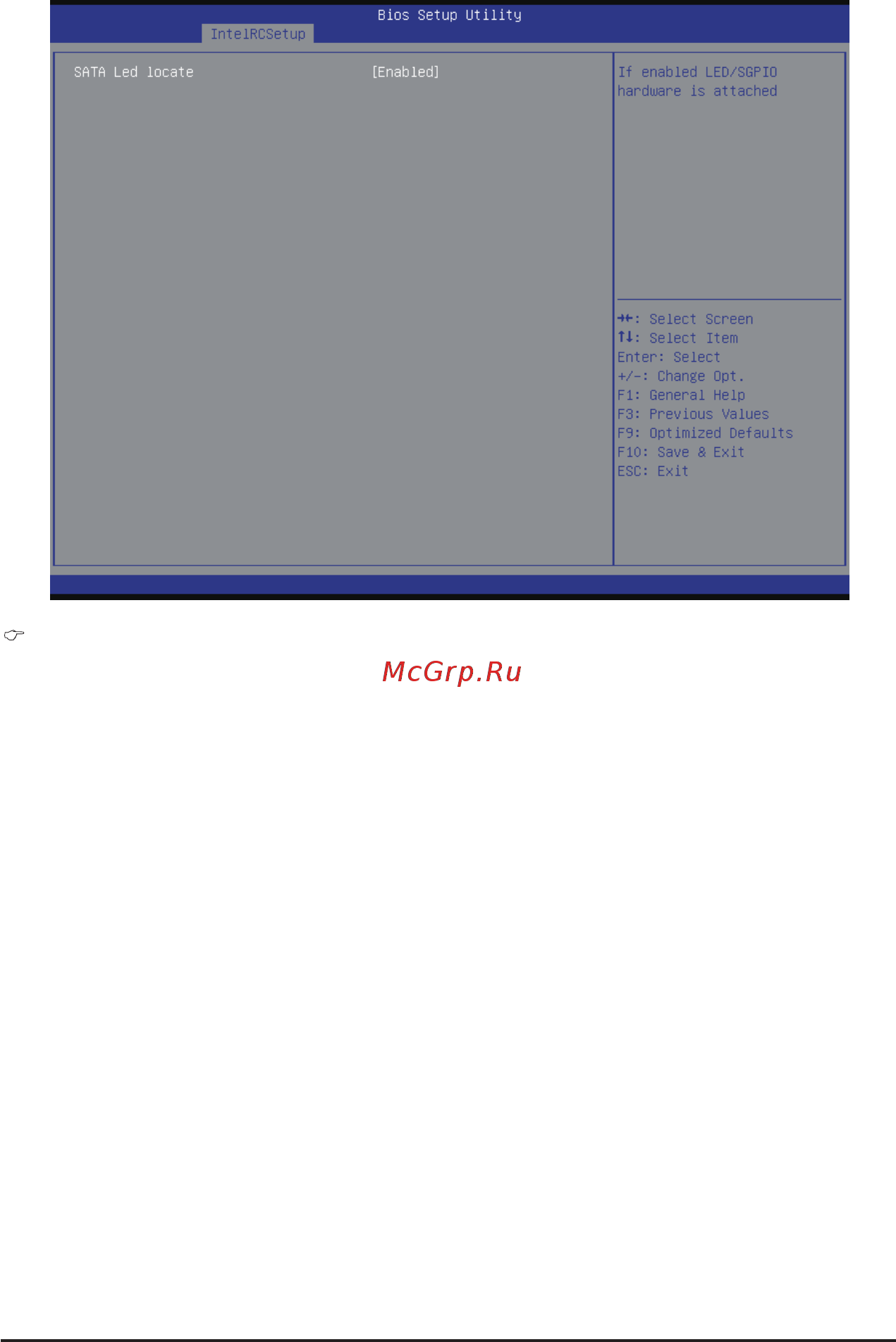

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode
