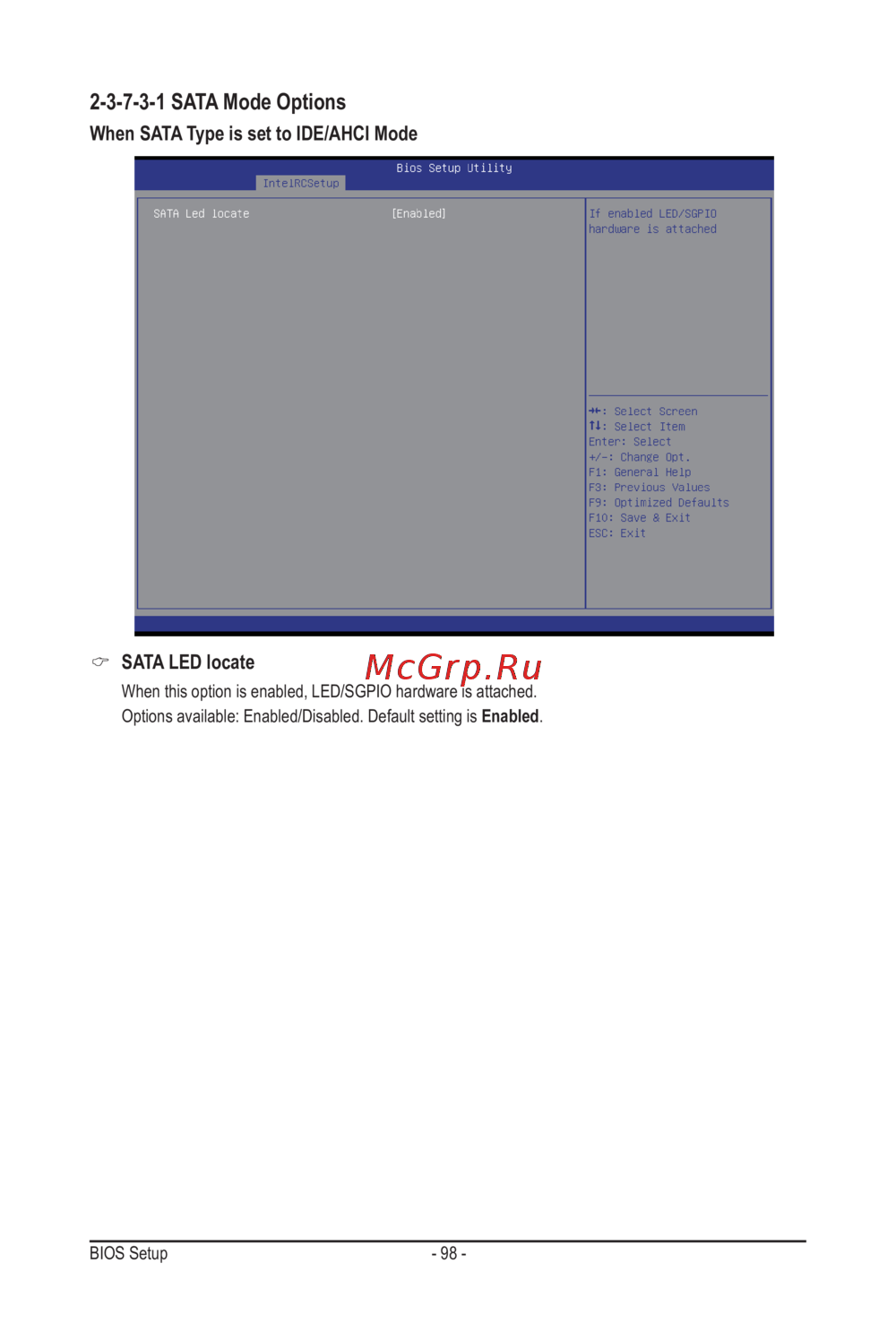

2-3-7-3-1 SATA Mode Options

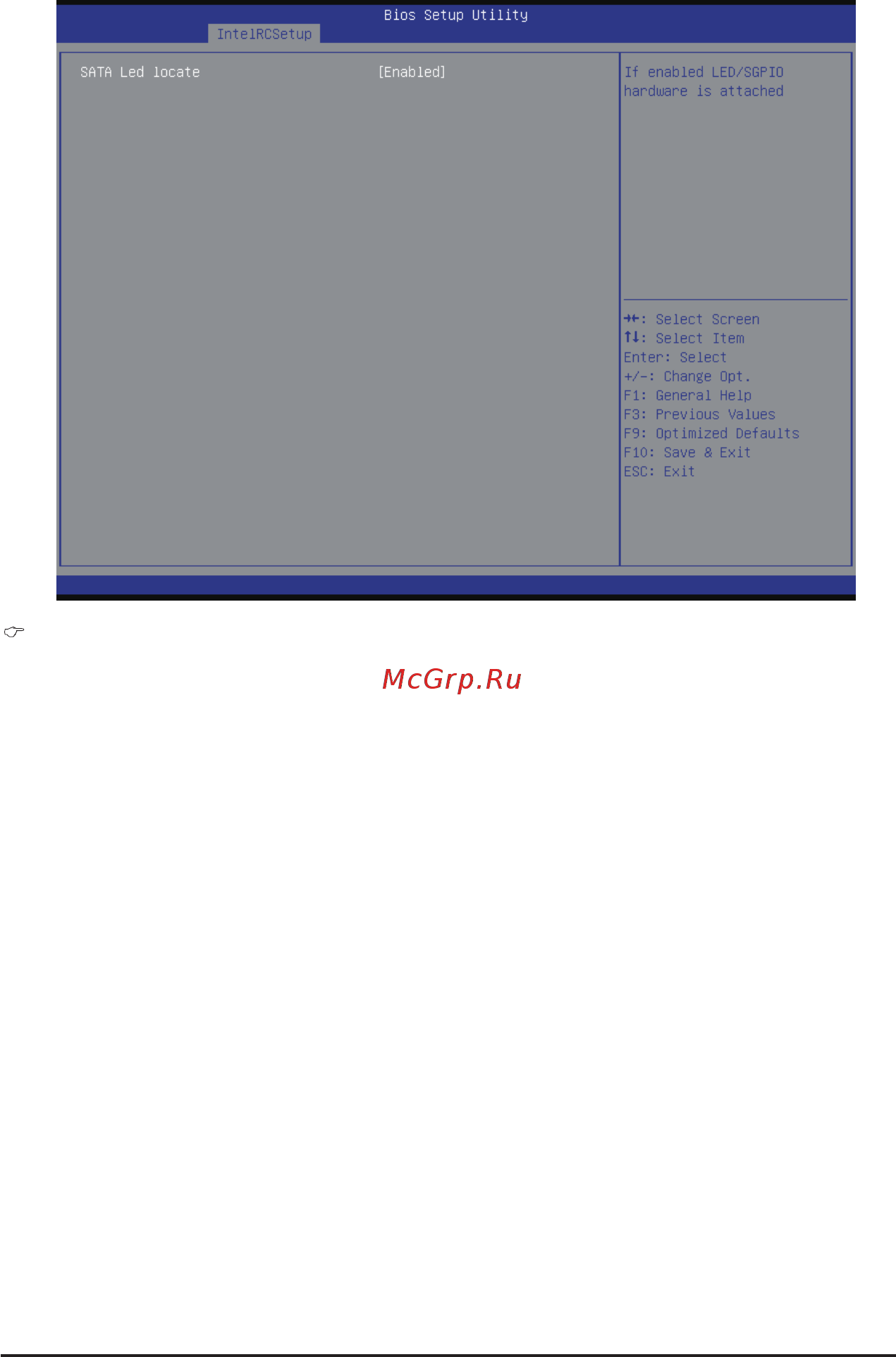

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode
