Gigabyte MD70-HB0 (rev. 1.2) [104/130] Miscellaneous configuration active video

BIOS Setup - 104 -

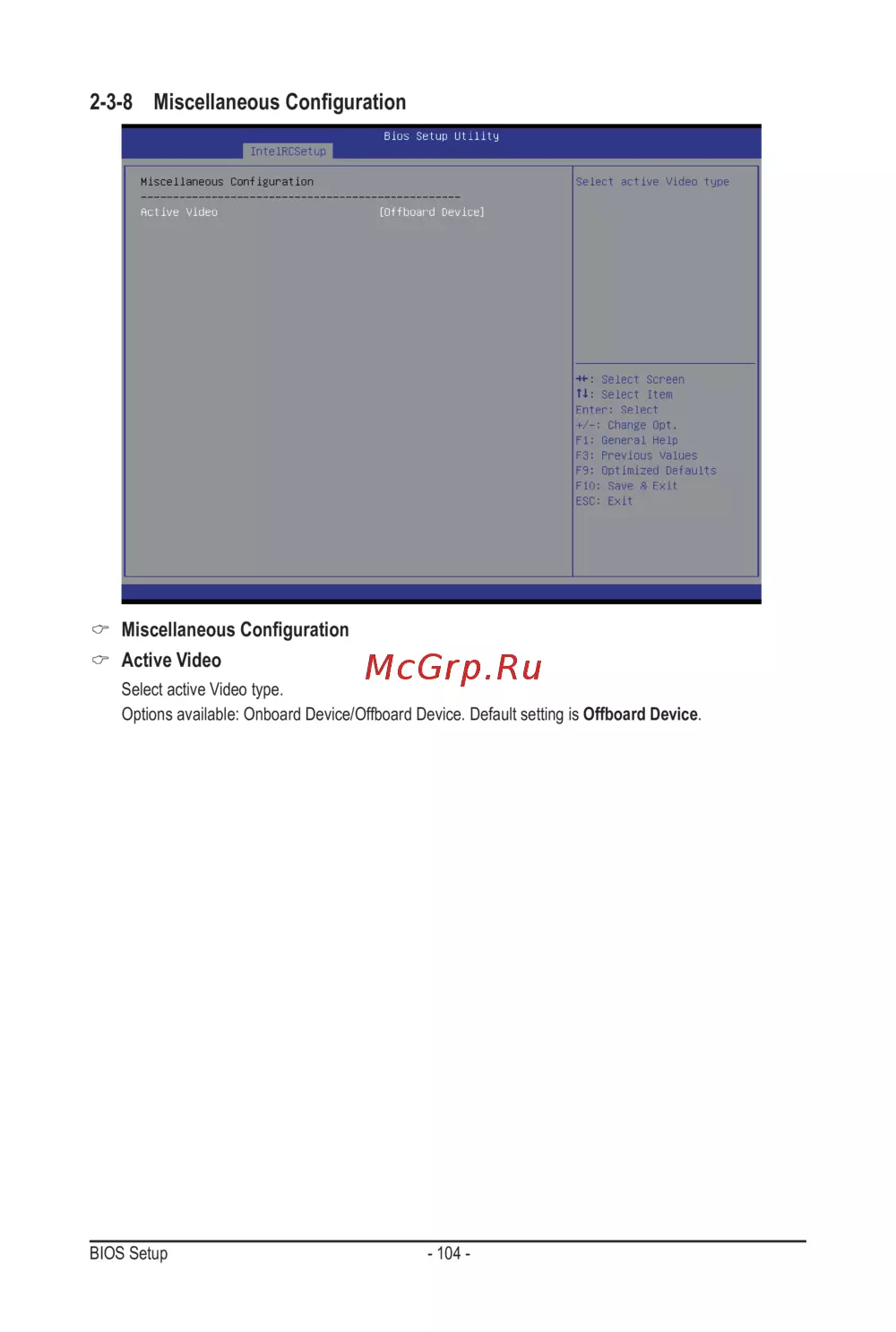

2-3-8 Miscellaneous Conguration

Miscellaneous Conguration

Active Video

Select active Video type.

Options available: Onboard Device/Offboard Device. Default setting is Offboard Device.
