- 115 - BIOS Setup

Administrator Password

 PressEntertoconguretheAdministratorpassword.

User Password

 PressEntertoconguretheuserpassword.

Secure Boot menu

 Press[Enter]forcongurationofadvanceditems.

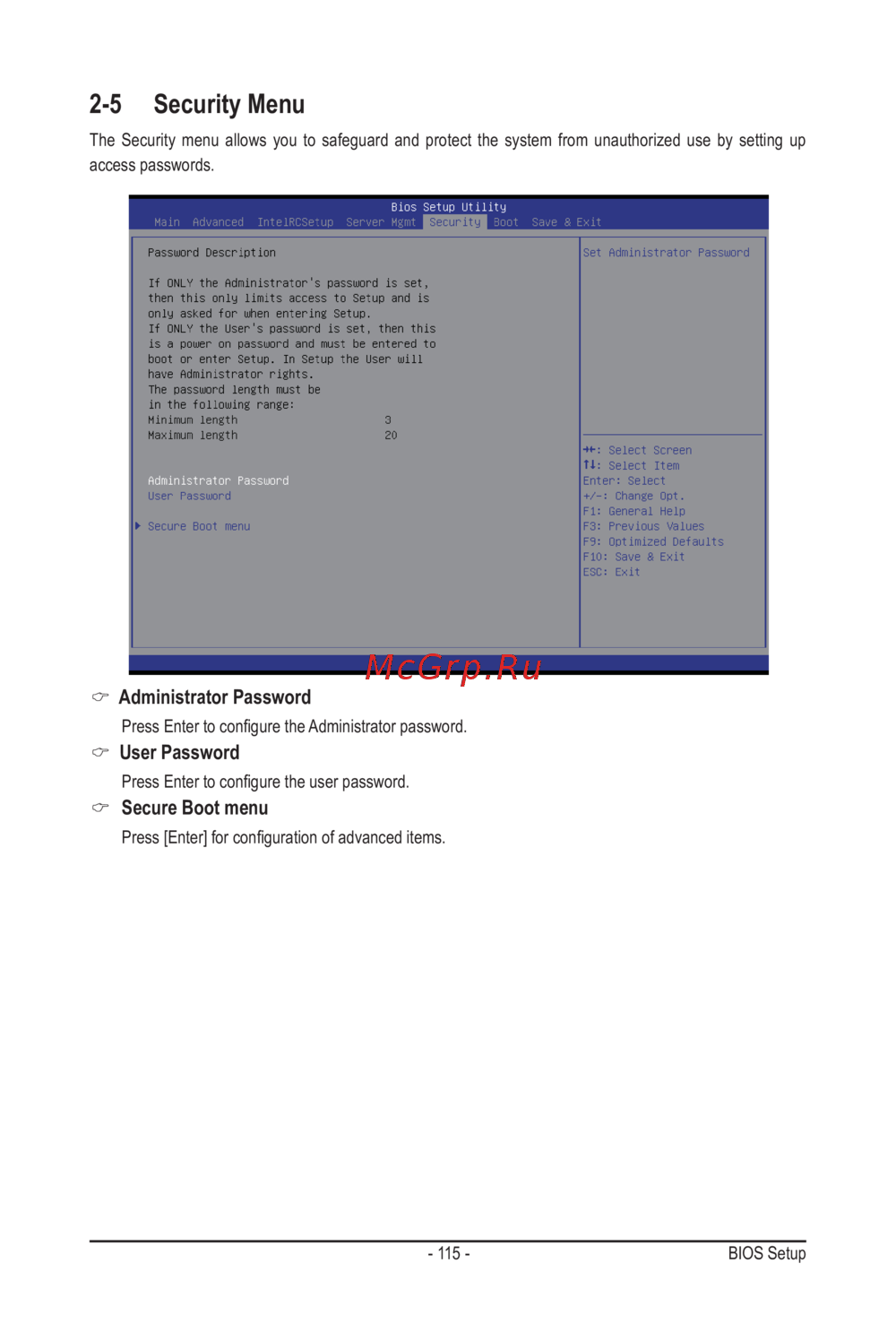

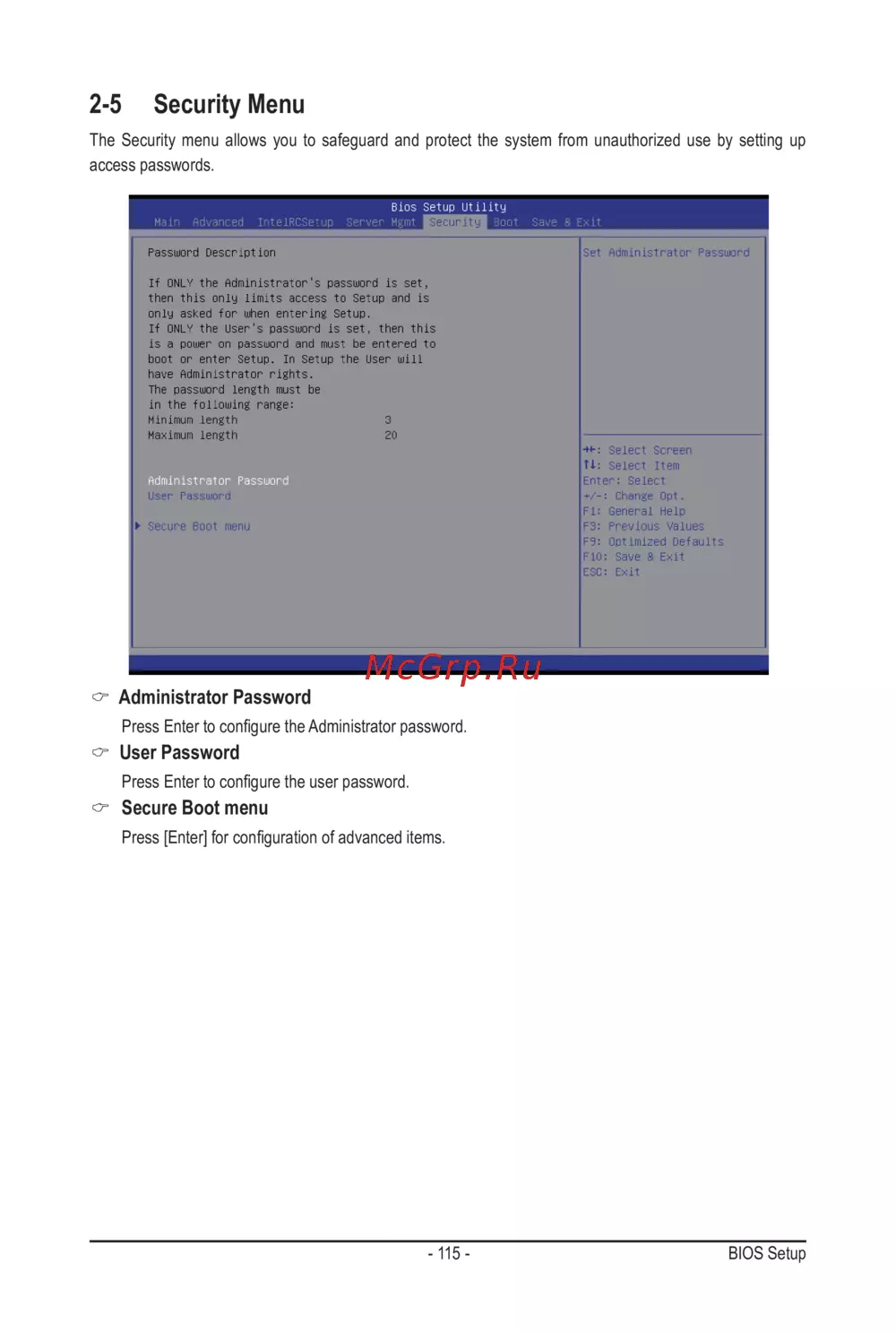

2-5 Security Menu

The Security menu allows you to safeguard and protect the system from unauthorized use by setting up

access passwords.
