Gigabyte MD70-HB0 (rev. 1.2) [85/130] Set throttling

- 85 - BIOS Setup

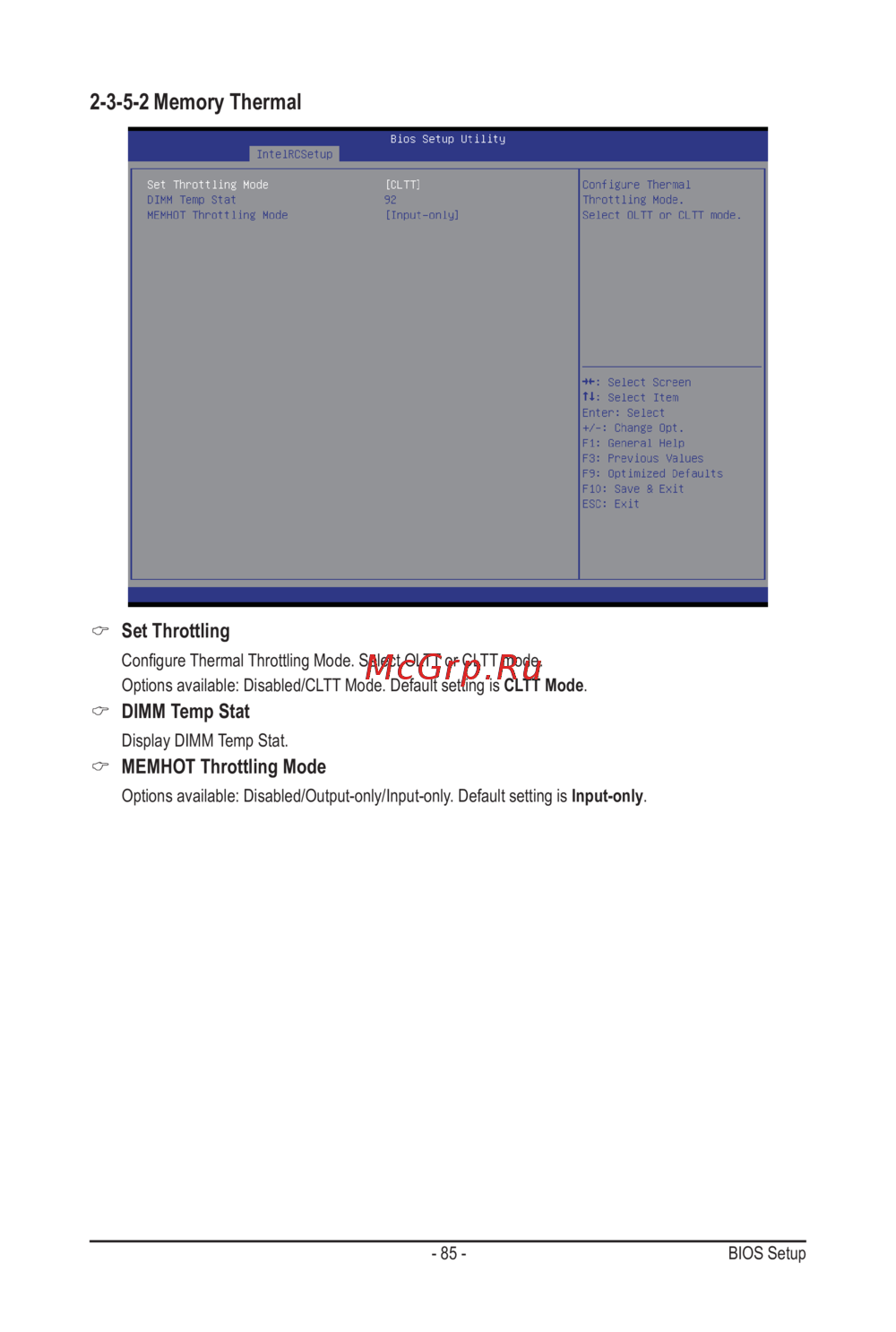

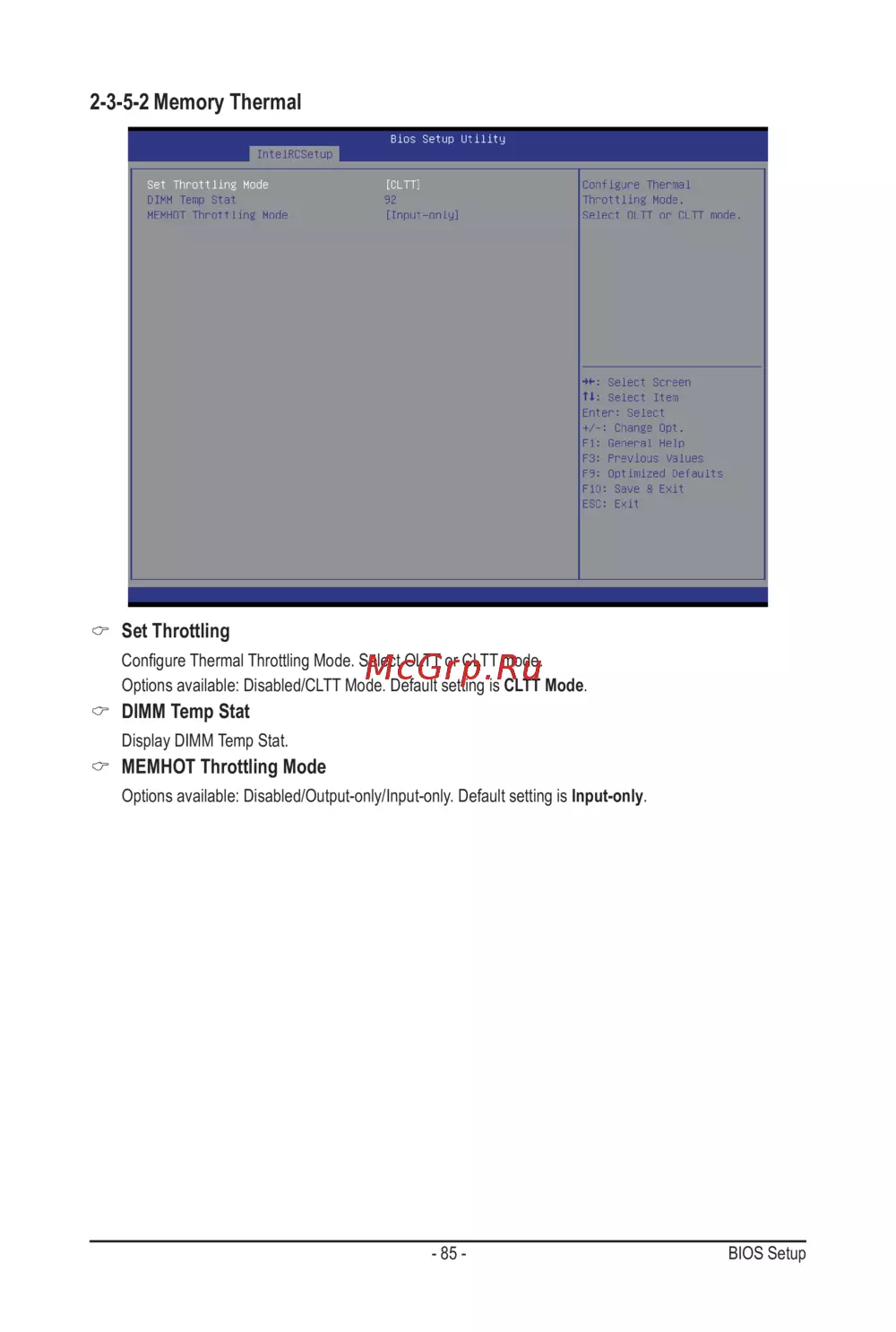

2-3-5-2 Memory Thermal

Set Throttling

 CongureThermalThrottlingMode.SelectOLTTorCLTTmode.

Options available: Disabled/CLTT Mode. Default setting is CLTT Mode.

DIMM Temp Stat

Display DIMM Temp Stat.

MEMHOT Throttling Mode

Options available: Disabled/Output-only/Input-only. Default setting is Input-only.
