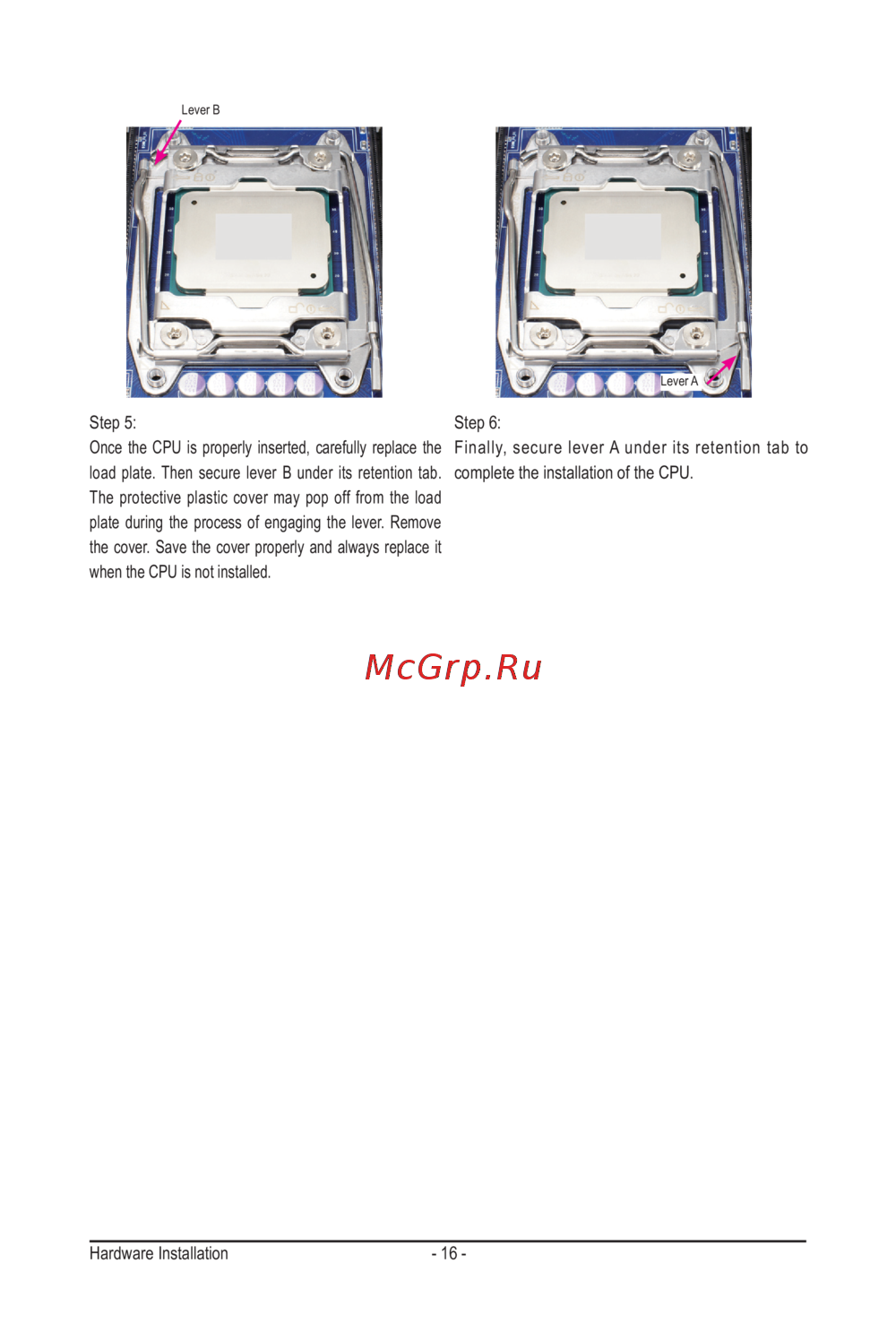

Hardware Installation - 16 -

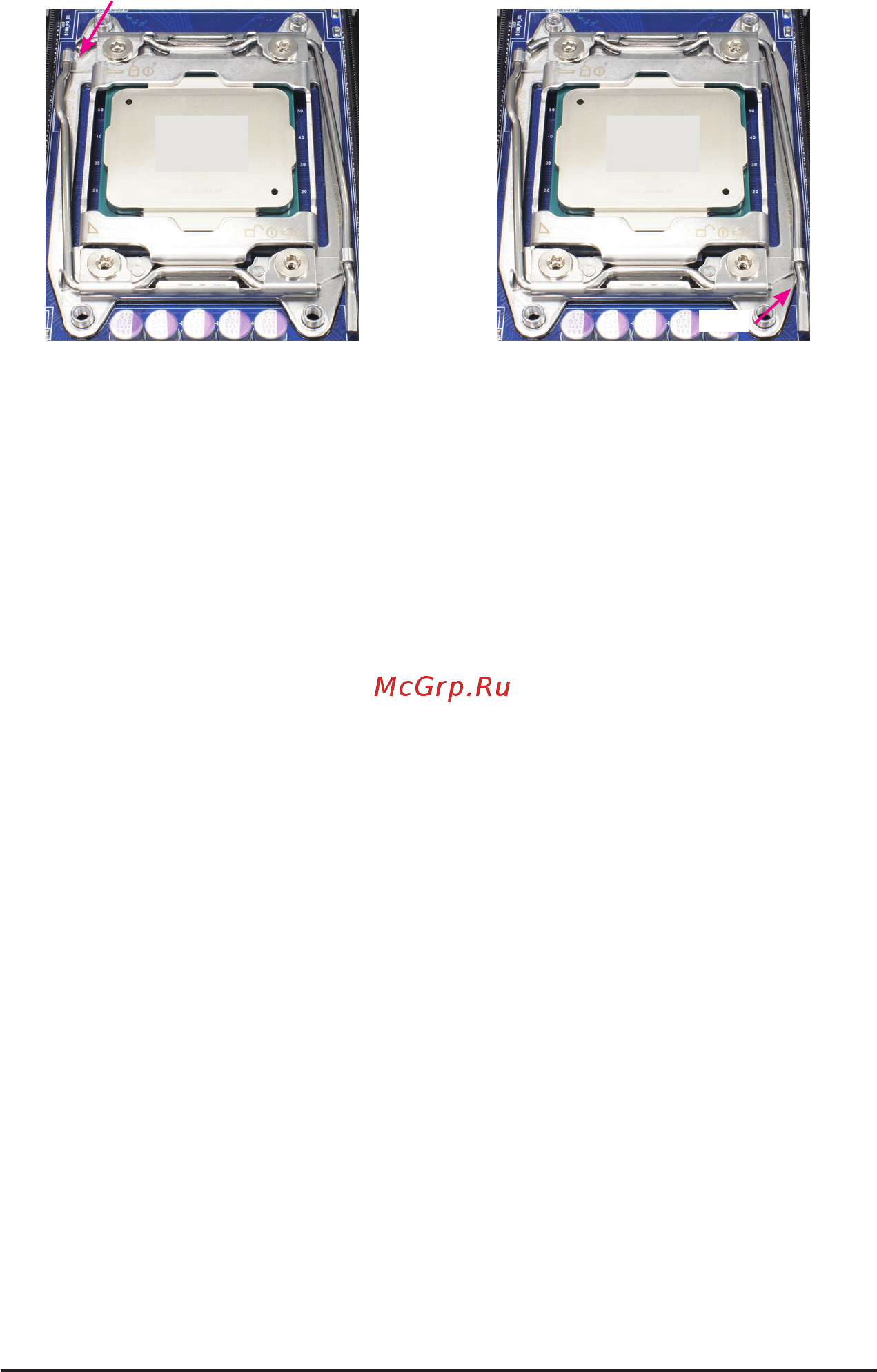

Step 5:

Once the CPU is properly inserted, carefully replace the

load plate. Then secure lever B under its retention tab.

The protective plastic cover may pop off from the load

plate during the process of engaging the lever. Remove

the cover. Save the cover properly and always replace it

when the CPU is not installed.

Lever B

Lever A

Step 6:

Finally, secure lever A under its retention tab to

complete the installation of the CPU.
