Hardware Installation - 20 -

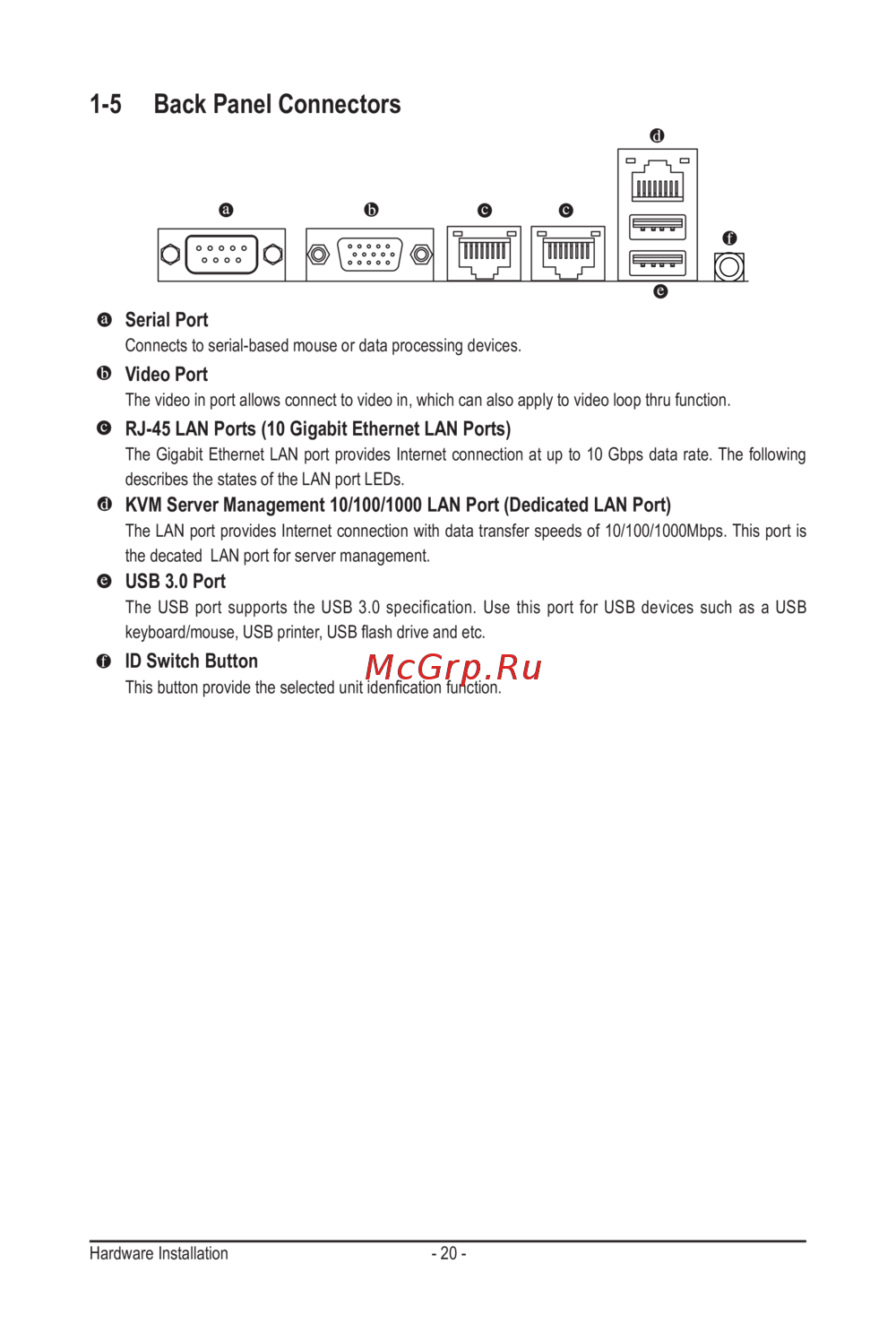

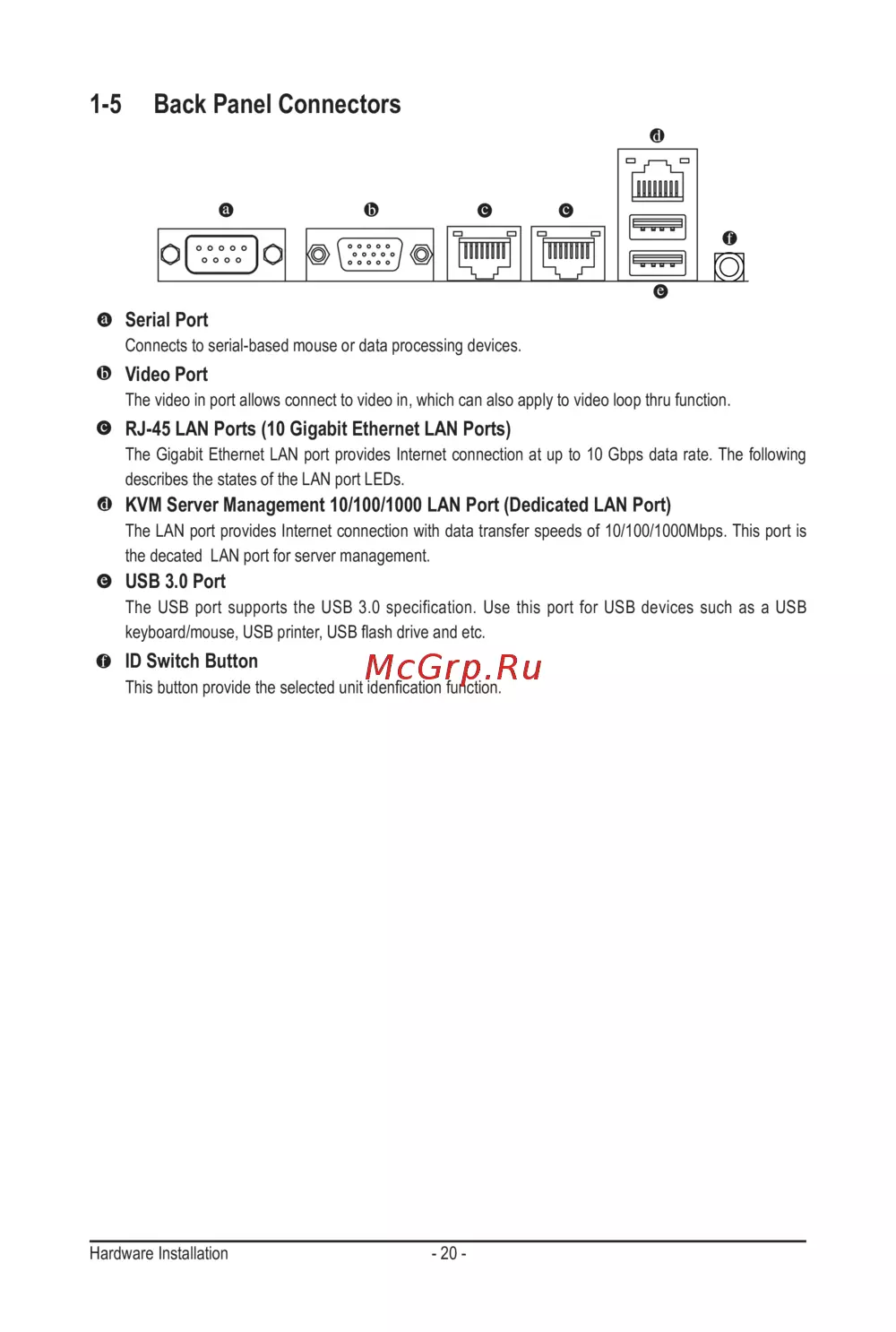

1-5 Back Panel Connectors
Serial Port
Connects to serial-based mouse or data processing devices.
Video Port
The video in port allows connect to video in, which can also apply to video loop thru function.
RJ-45 LAN Ports (10 Gigabit Ethernet LAN Ports)
The Gigabit Ethernet LAN port provides Internet connection at up to 10 Gbps data rate. The following
describes the states of the LAN port LEDs.
KVM Server Management 10/100/1000 LAN Port (Dedicated LAN Port)
The LAN port provides Internet connection with data transfer speeds of 10/100/1000Mbps. This port is
the decated LAN port for server management.
USB 3.0 Port
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveandetc.
ID Switch Button
Thisbuttonprovidetheselectedunitidencationfunction.
