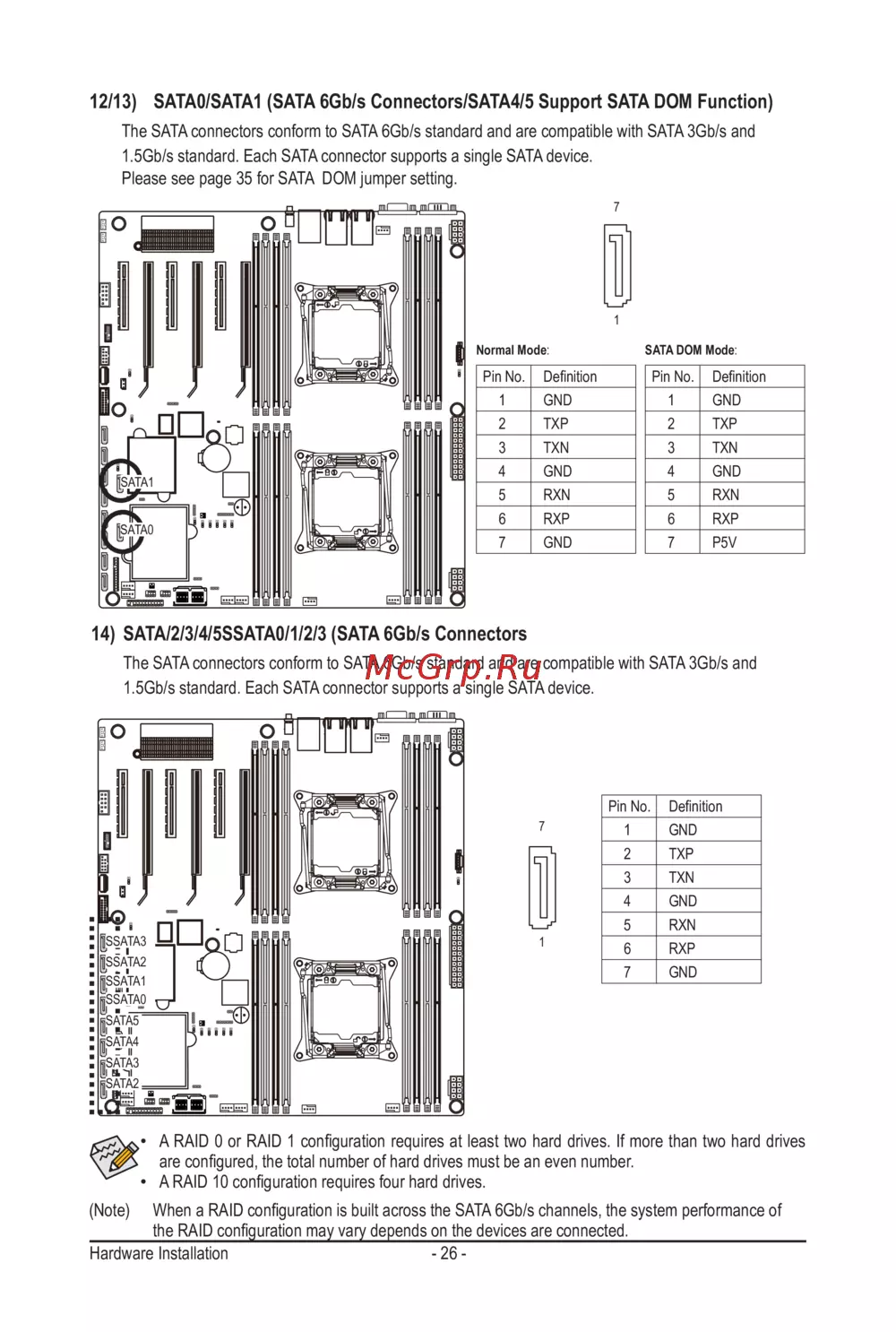

Hardware Installation - 26 -
• ARAID0orRAID1congurationrequiresatleasttwoharddrives.Ifmorethantwoharddrives
arecongured,thetotalnumberofharddrivesmustbeanevennumber.
• ARAID10congurationrequiresfourharddrives.
(Note) WhenaRAIDcongurationisbuiltacrosstheSATA6Gb/schannels,thesystemperformanceof
theRAIDcongurationmayvarydependsonthedevicesareconnected.
7
1
DEBUG
PORT
G.QBOFM
12/13) SATA0/SATA1 (SATA 6Gb/s Connectors/SATA4/5 Support SATA DOM Function)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and
1.5Gb/s standard. Each SATA connector supports a single SATA device.
Please see page 35 for SATA DOM jumper setting.
PinNo. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Normal Mode:
PinNo. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 P5V
SATA DOM Mode:
SATA1
SATA0
14) SATA/2/3/4/5SSATA0/1/2/3 (SATA 6Gb/s Connectors
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and
1.5Gb/s standard. Each SATA connector supports a single SATA device.
DEBUG
PORT
G.QBOFM
7
1
PinNo. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA5
SATA4
SSATA0
SSATA1
SSATA2
SSATA3
SATA3
SATA2
