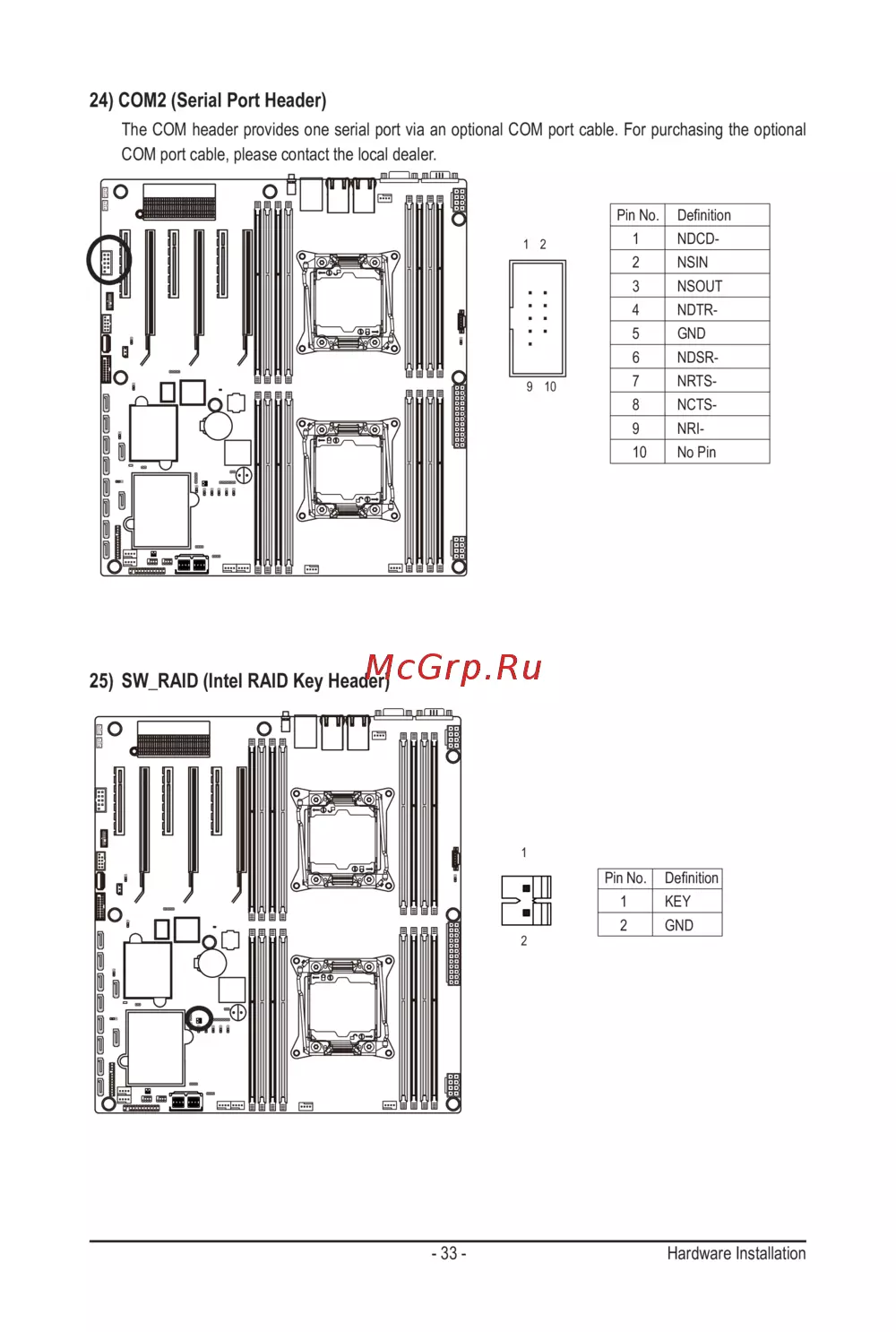

- 33 - Hardware Installation

24) COM2 (Serial Port Header)

The COM header provides one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

9 10

PinNo. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

25) SW_RAID (Intel RAID Key Header)

PinNo. Denition

1 KEY

2 GND
