Gigabyte MD70-HB2 (rev. 1.0) [34/130] Imr_key lsi raid key header

Hardware Installation - 34 -

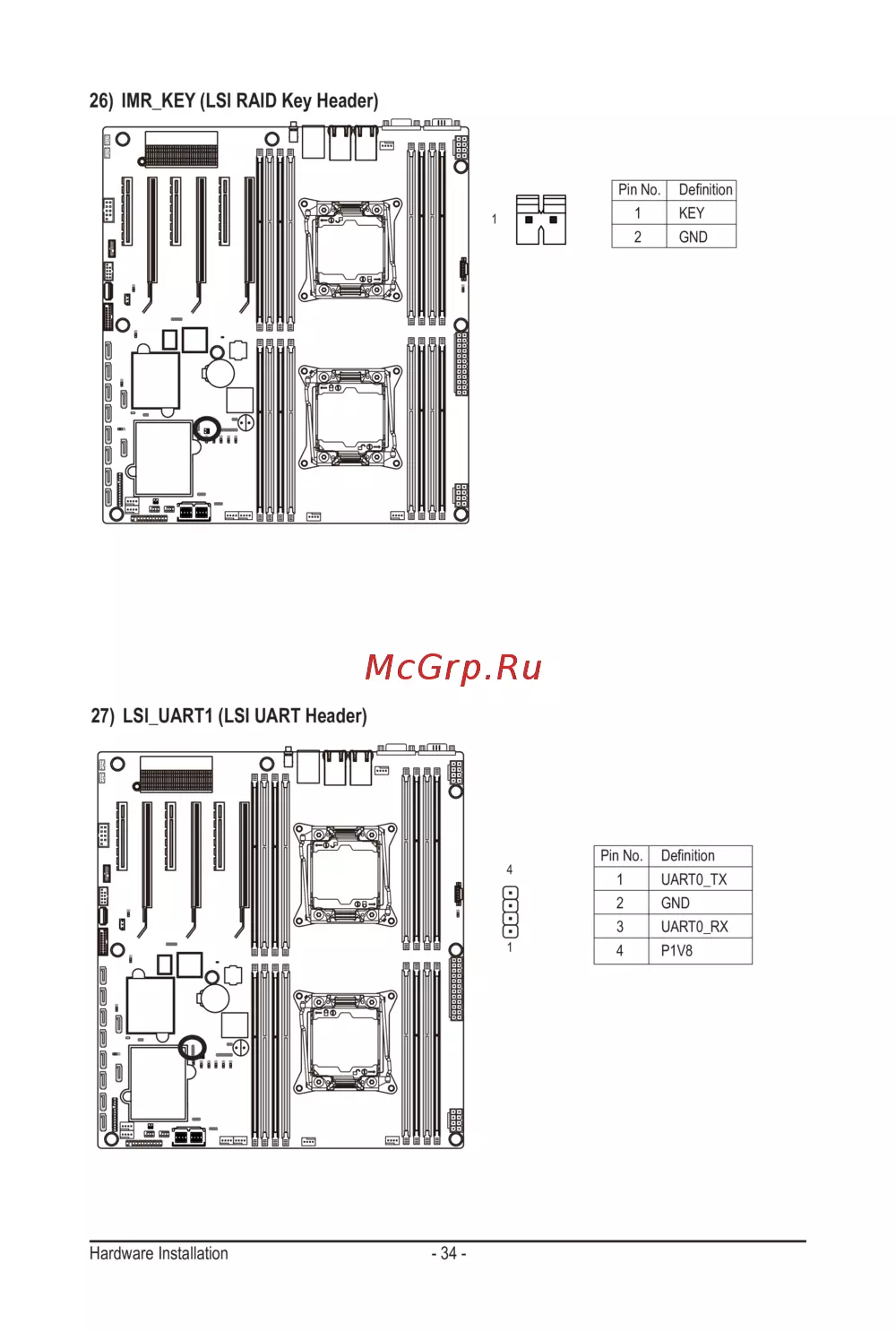

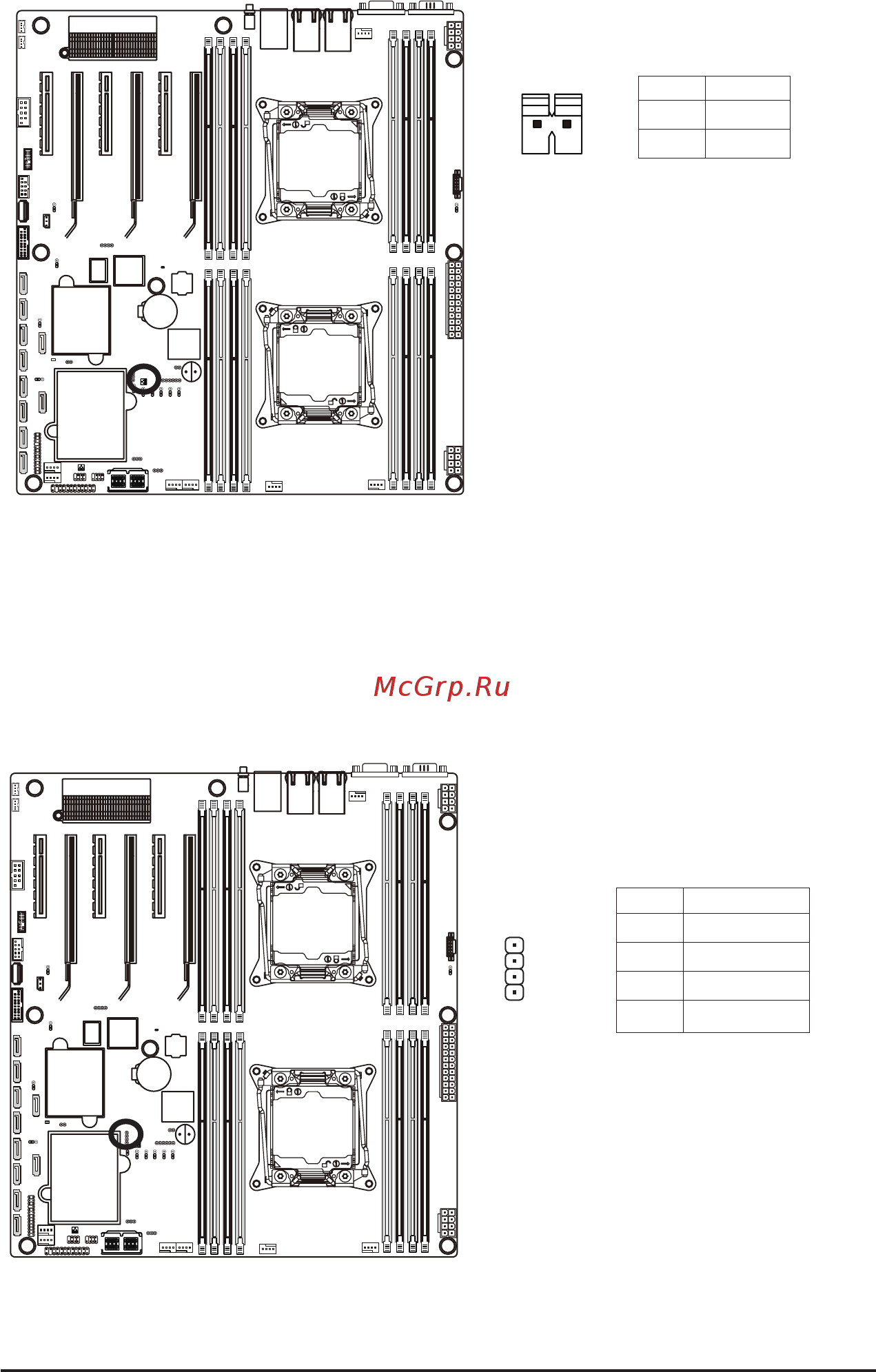

26) IMR_KEY (LSI RAID Key Header)

27) LSI_UART1 (LSI UART Header)

PinNo. Denition

1 KEY

2 GND

PinNo. Denition

1 UART0_TX

2 GND

3 UART0_RX

4 P1V8
