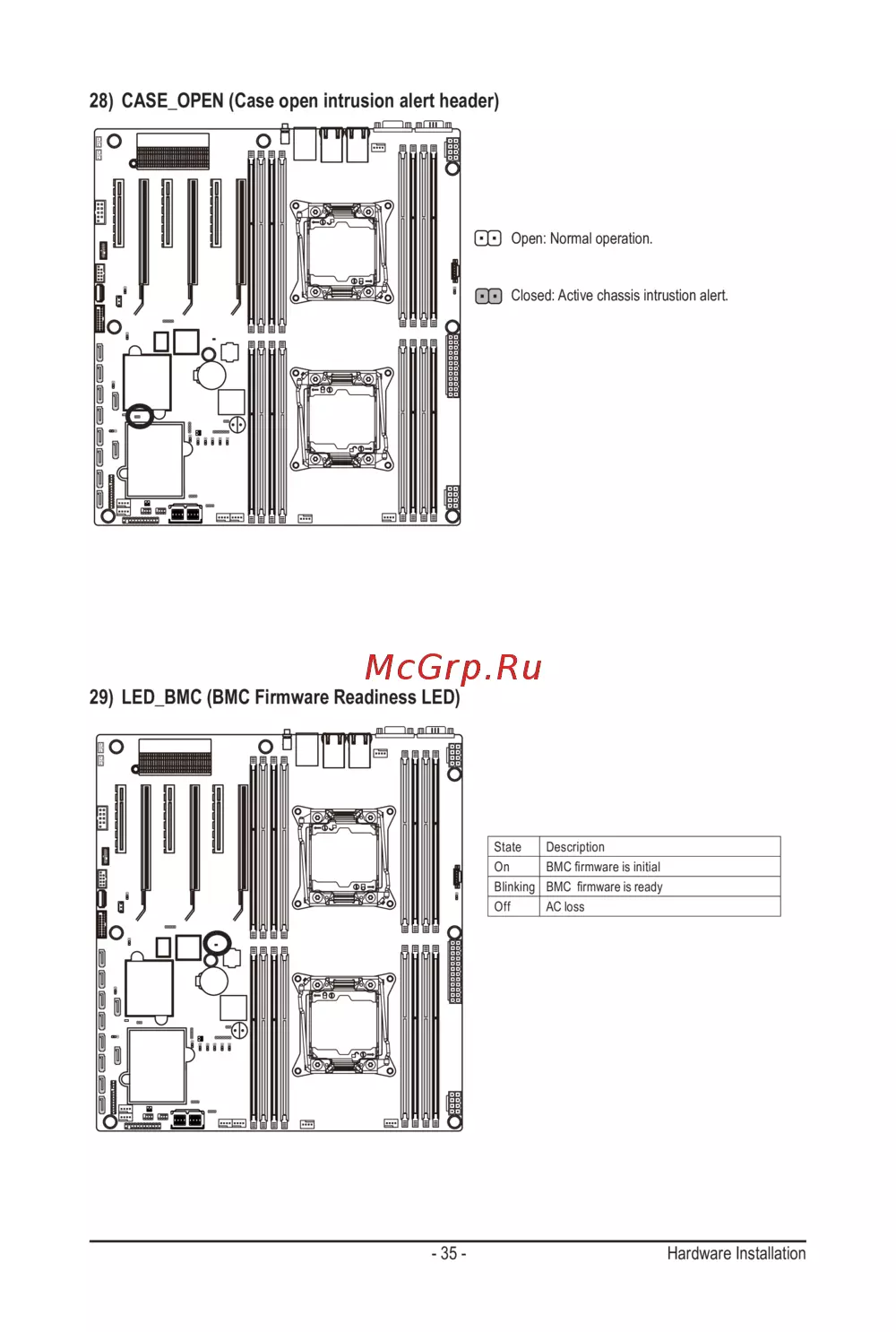

- 35 - Hardware Installation
Open: Normal operation.
Closed: Active chassis intrustion alert.
28) CASE_OPEN (Case open intrusion alert header)
29) LED_BMC (BMC Firmware Readiness LED)
State Description
On BMCrmwareisinitial
Blinking BMCrmwareisready
Off AC loss
