Gigabyte MD70-HB2 (rev. 1.0) [36/130] Led lsi firmware readiness led

Hardware Installation - 36 -

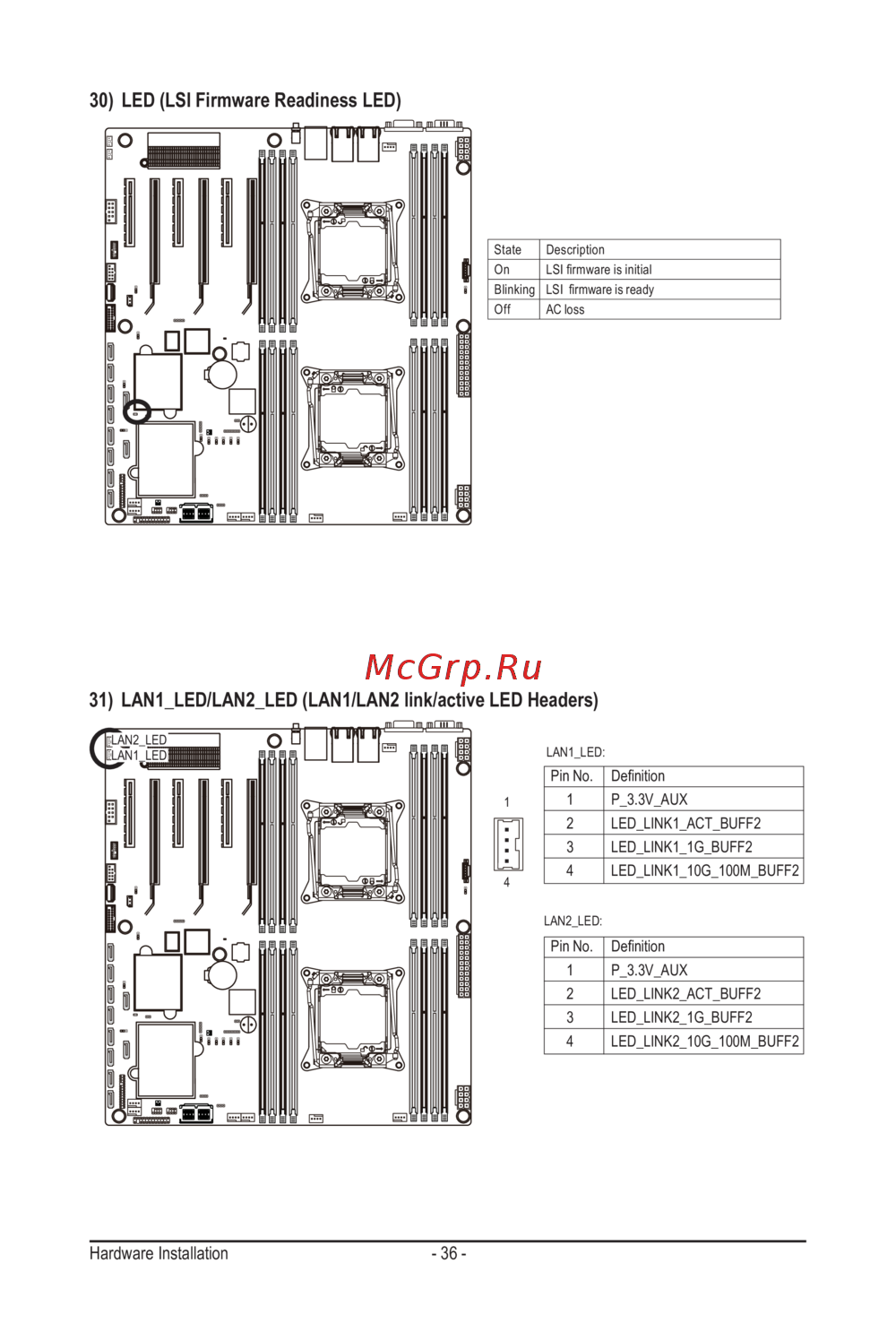

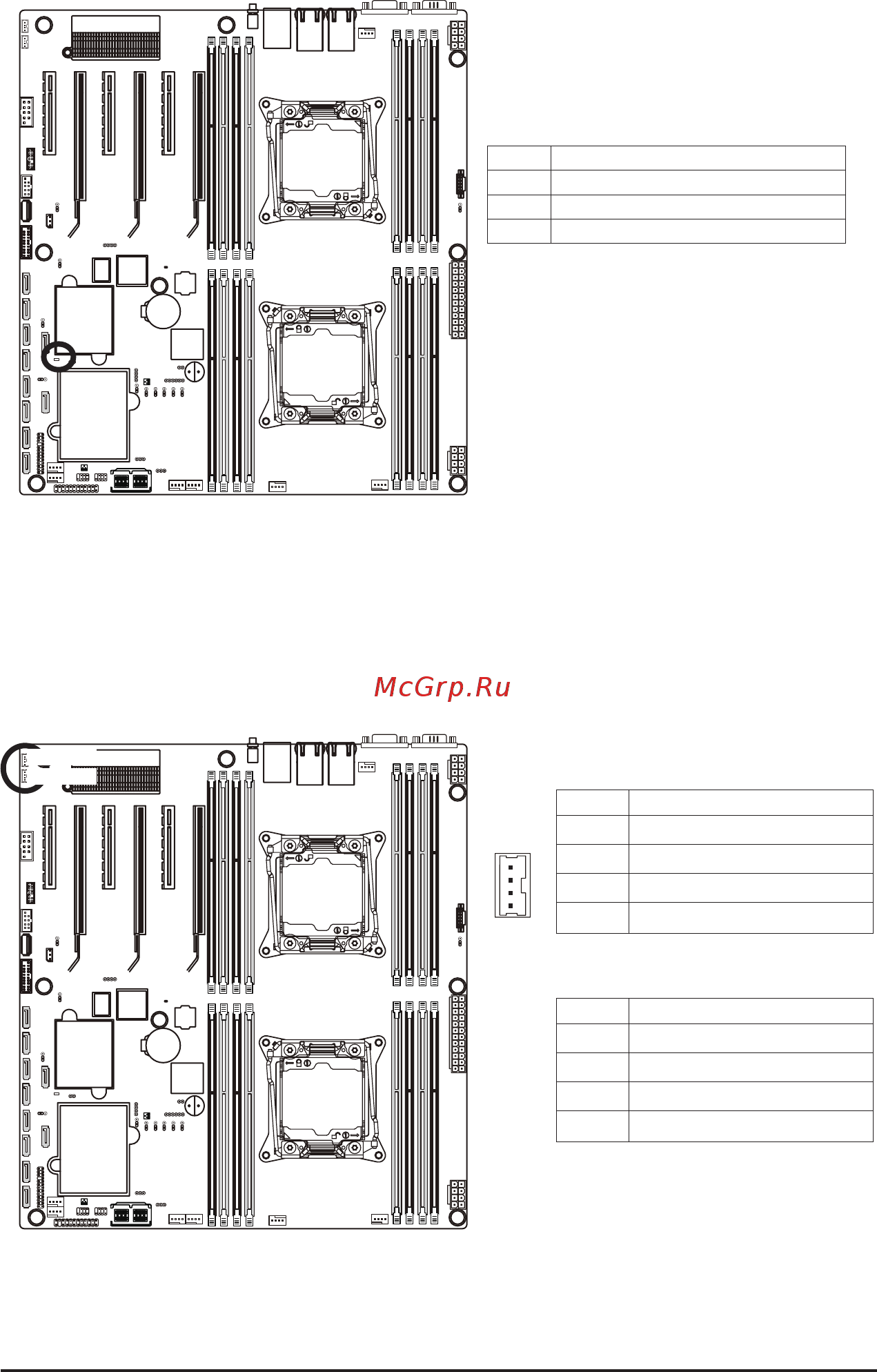

30) LED (LSI Firmware Readiness LED)

31) LAN1_LED/LAN2_LED (LAN1/LAN2 link/active LED Headers)

State Description

On LSIrmwareisinitial

Blinking LSIrmwareisready

Off AC loss

LAN1_LED

LAN2_LED

PinNo. Denition

1 P_3.3V_AUX

2 LED_LINK1_ACT_BUFF2

3 LED_LINK1_1G_BUFF2

4 LED_LINK1_10G_100M_BUFF2

PinNo. Denition

1 P_3.3V_AUX

2 LED_LINK2_ACT_BUFF2

3 LED_LINK2_1G_BUFF2

4 LED_LINK2_10G_100M_BUFF2

LAN1_LED:

LAN2_LED:
