Gigabyte MD70-HB2 (rev. 1.0) [40/130] S3_mask s3 power on select jumper

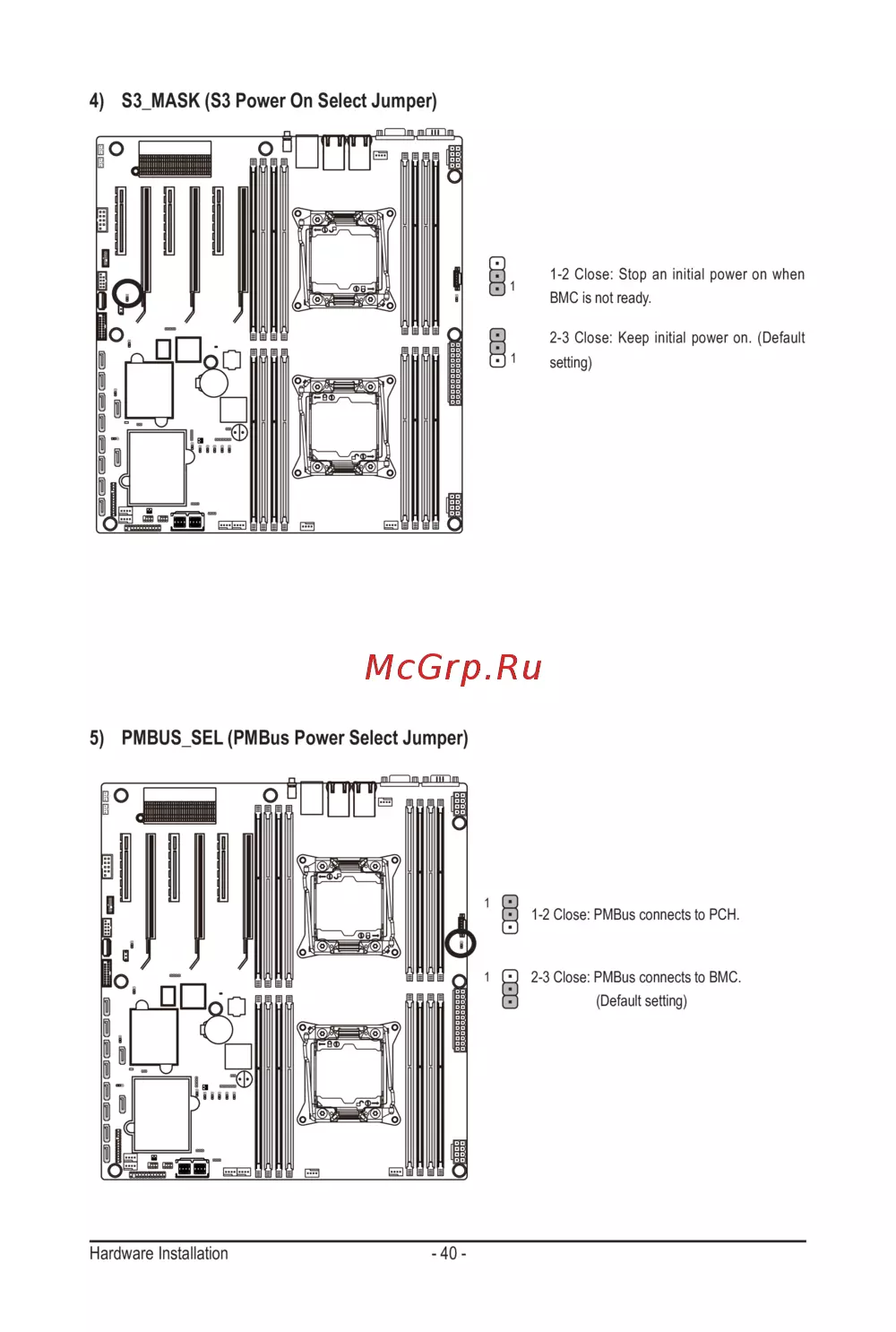

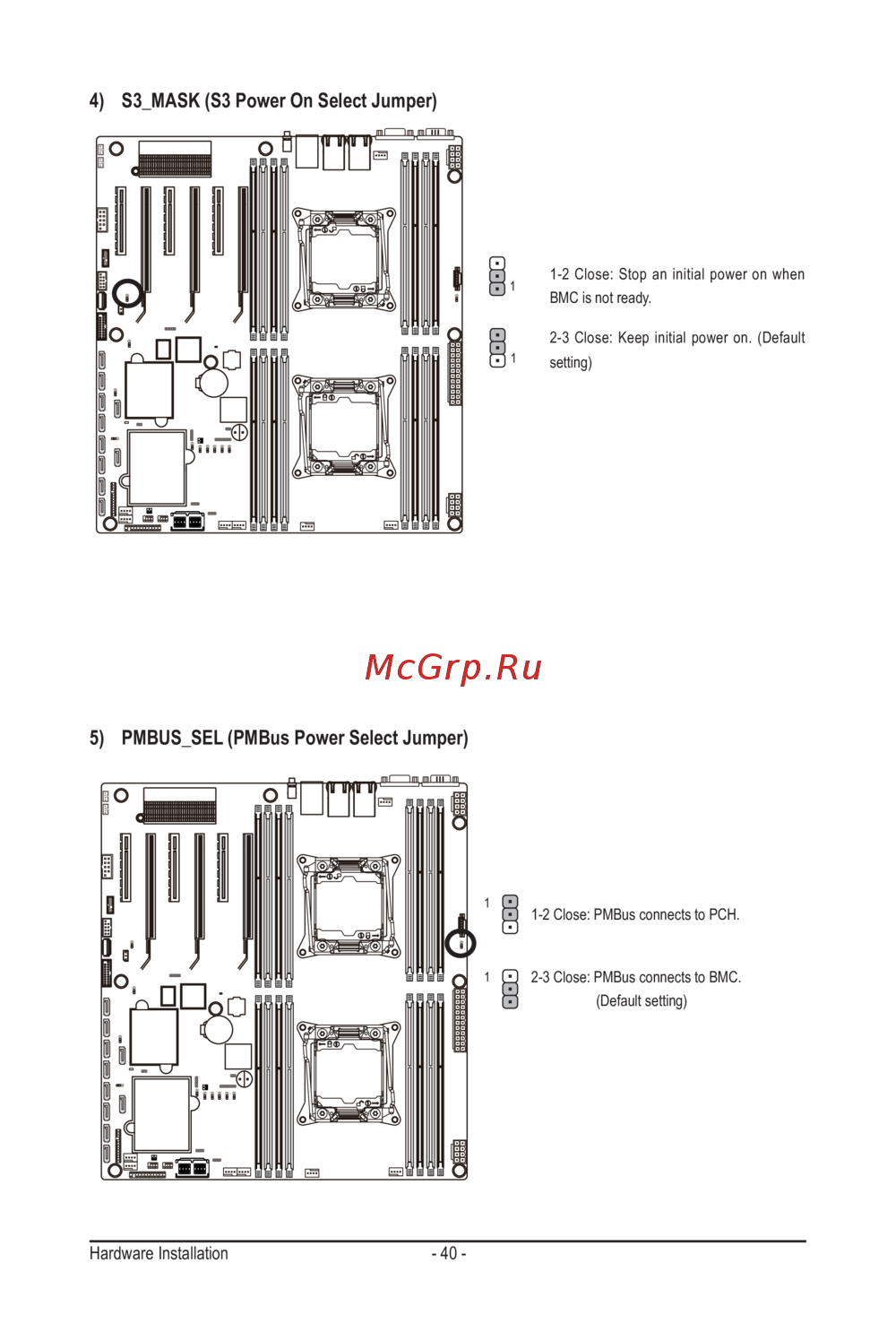

Hardware Installation - 40 -

4) S3_MASK (S3 Power On Select Jumper)

2-3 Close: Keep initial power on. (Default

setting)

1-2 Close: Stop an initial power on when

BMC is not ready.

5) PMBUS_SEL (PMBus Power Select Jumper)

2-3 Close: PMBus connects to BMC.

(Default setting)

1-2 Close: PMBus connects to PCH.
