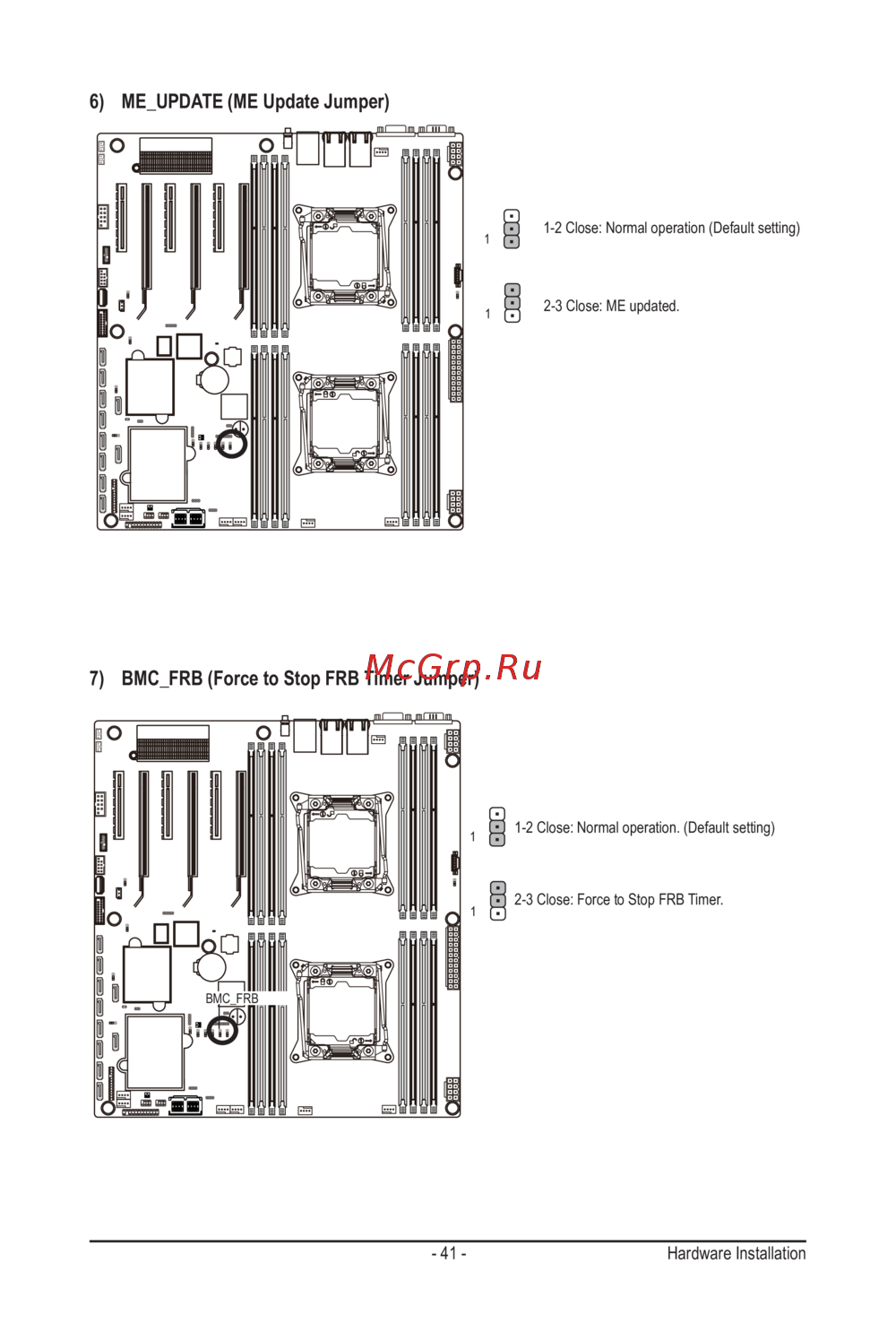

Gigabyte MD70-HB2 (rev. 1.0) [41/130] 2 close normal operation default setting

- 41 - Hardware Installation

6) ME_UPDATE (ME Update Jumper)

1-2 Close: Normal operation (Default setting)

2-3 Close: ME updated.

7) BMC_FRB (Force to Stop FRB Timer Jumper)

1-2 Close: Normal operation. (Default setting)

2-3 Close: Force to Stop FRB Timer.

BMC_FRB
