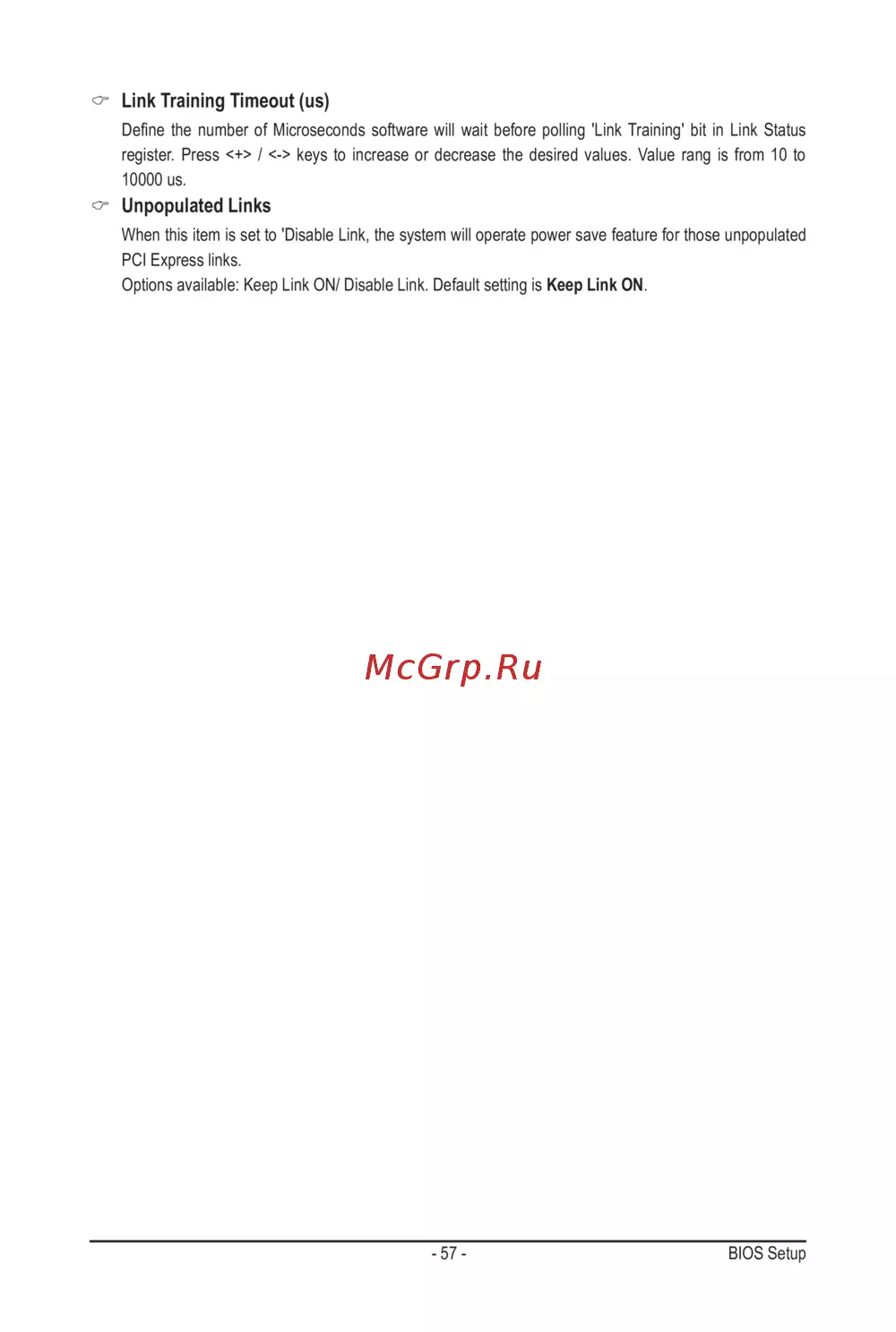

Gigabyte MD70-HB2 (rev. 1.0) [57/130] Unpopulated links

- 57 - BIOS Setup

Link Training Timeout (us)

 DenethenumberofMicrosecondssoftwarewillwaitbeforepolling'LinkTraining' bit in Link Status

10000 us.

Unpopulated Links

When this item is set to 'Disable Link, the system will operate power save feature for those unpopulated

PCI Express links.

Options available: Keep Link ON/ Disable Link. Default setting is Keep Link ON.
