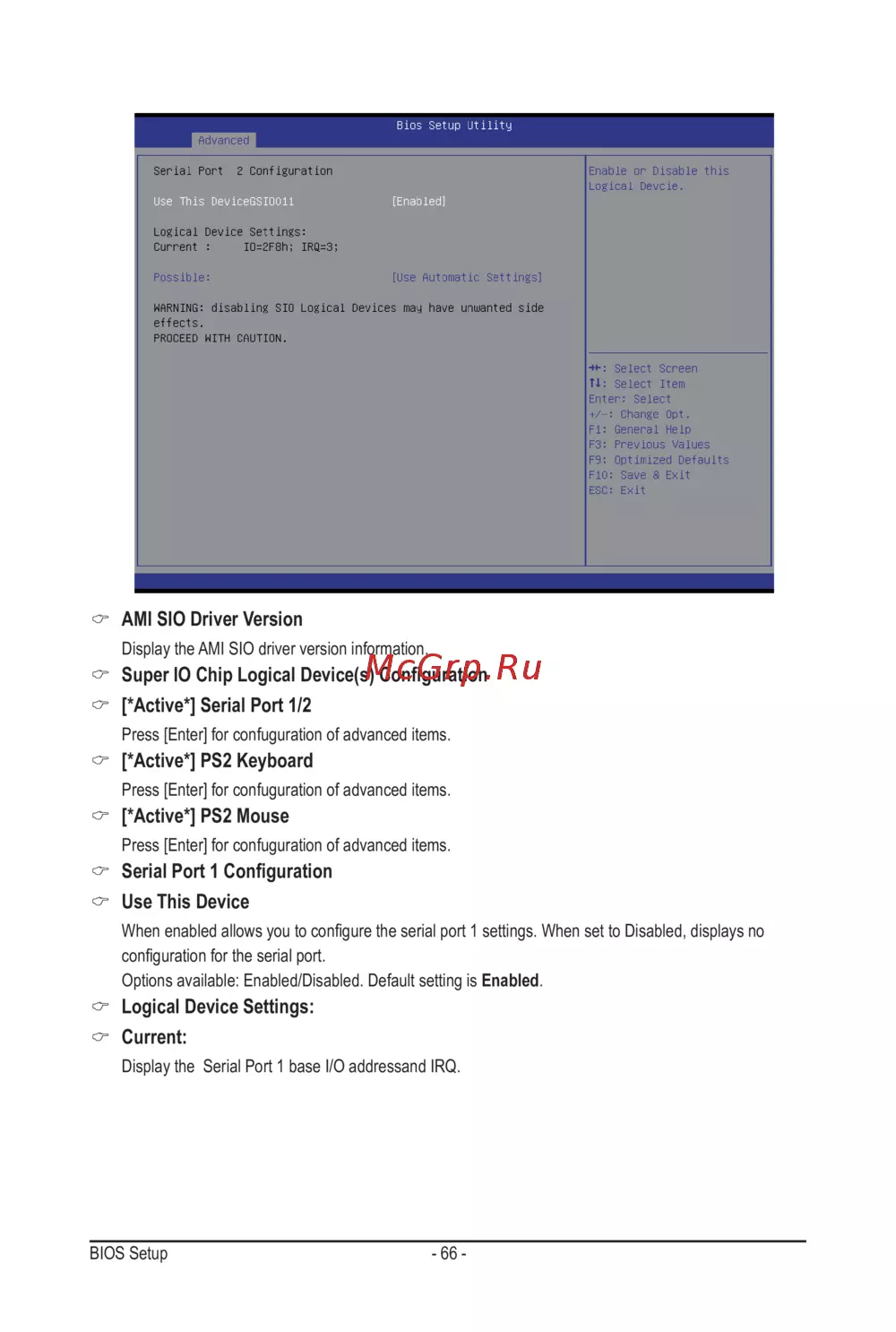

BIOS Setup - 66 -

AMI SIO Driver Version

Display the AMI SIO driver version information.

Super IO Chip Logical Device(s) Conguration

[*Active*] Serial Port 1/2

Press [Enter] for confuguration of advanced items.

[*Active*] PS2 Keyboard

Press [Enter] for confuguration of advanced items.

[*Active*] PS2 Mouse

Press [Enter] for confuguration of advanced items.

Serial Port 1 Conguration

Use This Device

 Whenenabledallowsyoutoconguretheserialport1settings.WhensettoDisabled,displaysno

 congurationfortheserialport.

Options available: Enabled/Disabled. Default setting is Enabled.

Logical Device Settings:

Current:

Display the Serial Port 1 base I/O addressand IRQ.
