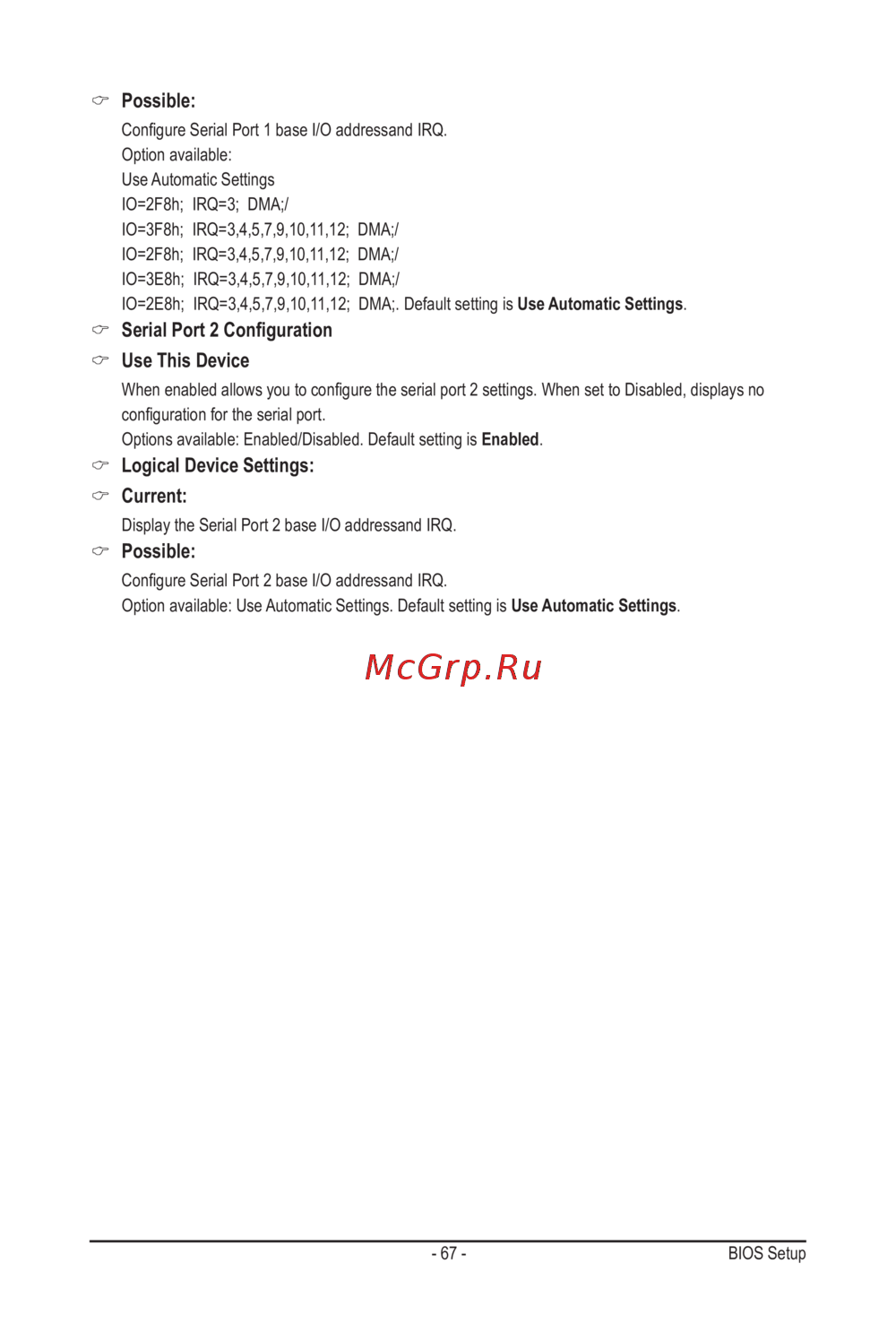

- 67 - BIOS Setup
Possible:
CongureSerialPort1baseI/OaddressandIRQ.
Option available:
Use Automatic Settings
IO=2F8h; IRQ=3; DMA;/
IO=3F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2F8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=3E8h; IRQ=3,4,5,7,9,10,11,12; DMA;/
IO=2E8h; IRQ=3,4,5,7,9,10,11,12; DMA;. Default setting is Use Automatic Settings.
Serial Port 2 Conguration
Use This Device
Whenenabledallowsyoutoconguretheserialport2settings.WhensettoDisabled,displaysno
congurationfortheserialport.
Options available: Enabled/Disabled. Default setting is Enabled.
Logical Device Settings:
Current:
Display the Serial Port 2 base I/O addressand IRQ.
Possible:
CongureSerialPort2baseI/OaddressandIRQ.
Option available: Use Automatic Settings. Default setting is Use Automatic Settings.
