Gigabyte MD70-HB2 (rev. 1.0) [69/130] Rc revision

- 69 - BIOS Setup

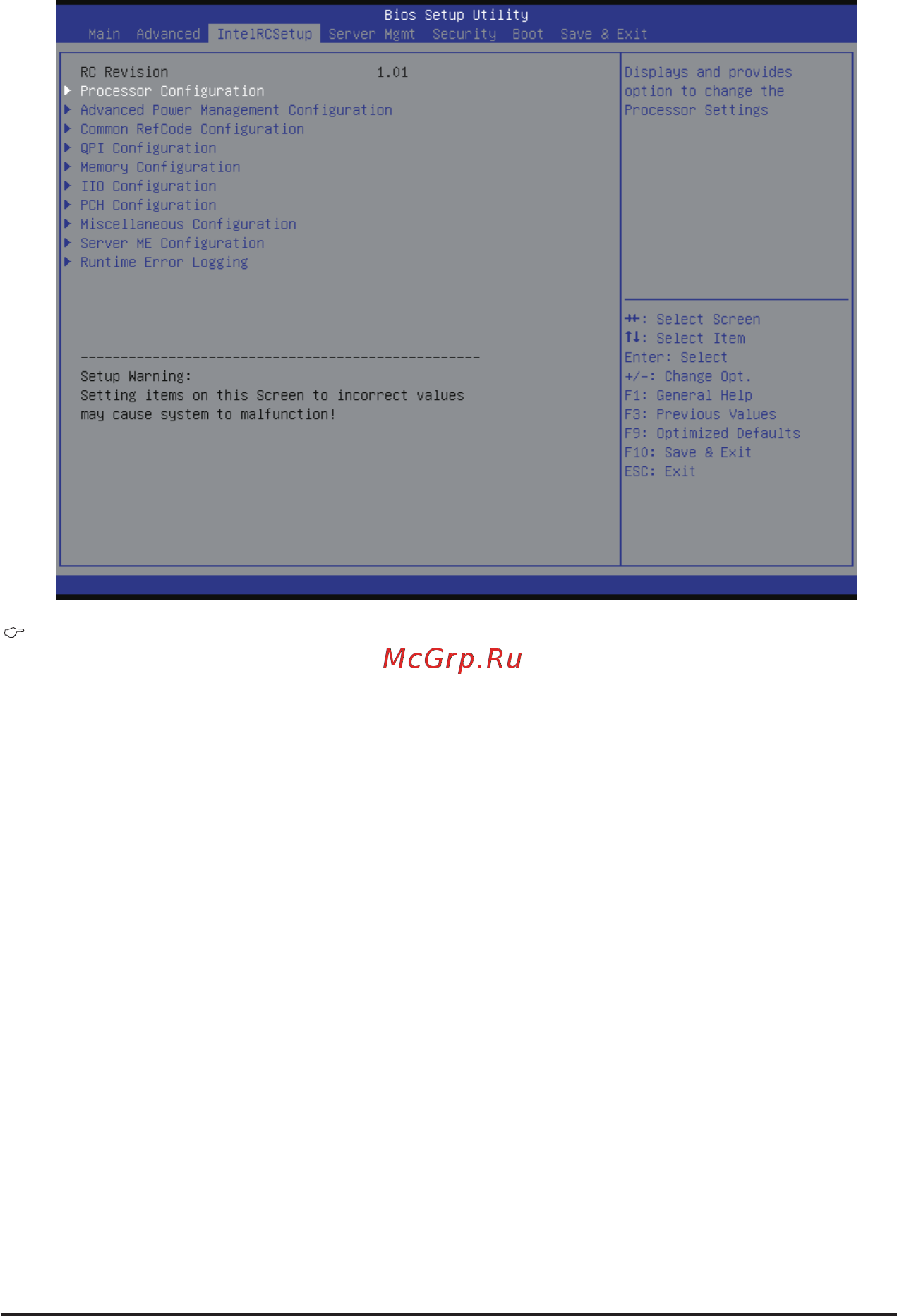

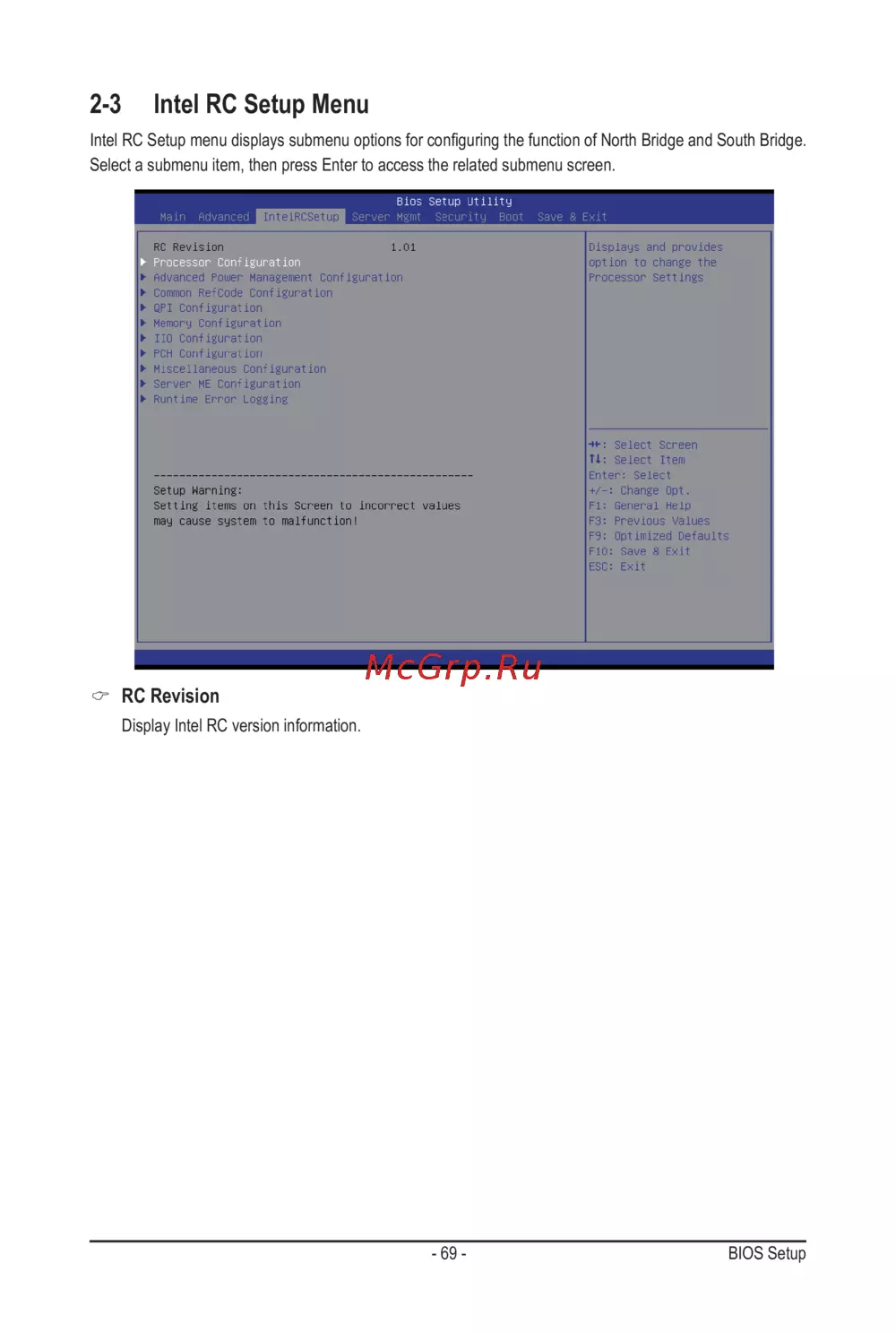

2-3 Intel RC Setup Menu

IntelRCSetupmenudisplayssubmenuoptionsforconguringthefunctionofNorthBridgeandSouthBridge.

Select a submenu item, then press Enter to access the related submenu screen.

RC Revision

Display Intel RC version information.
