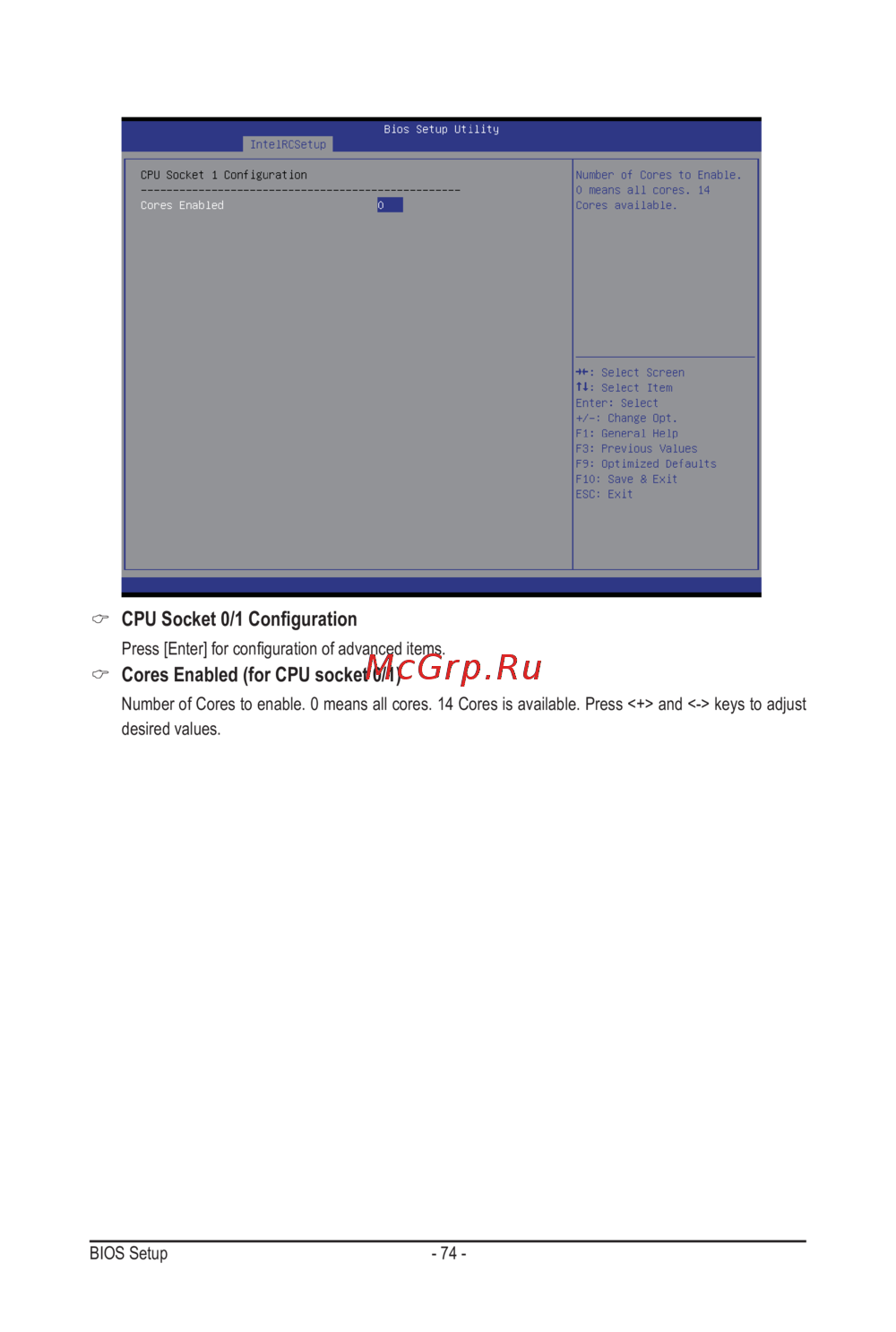

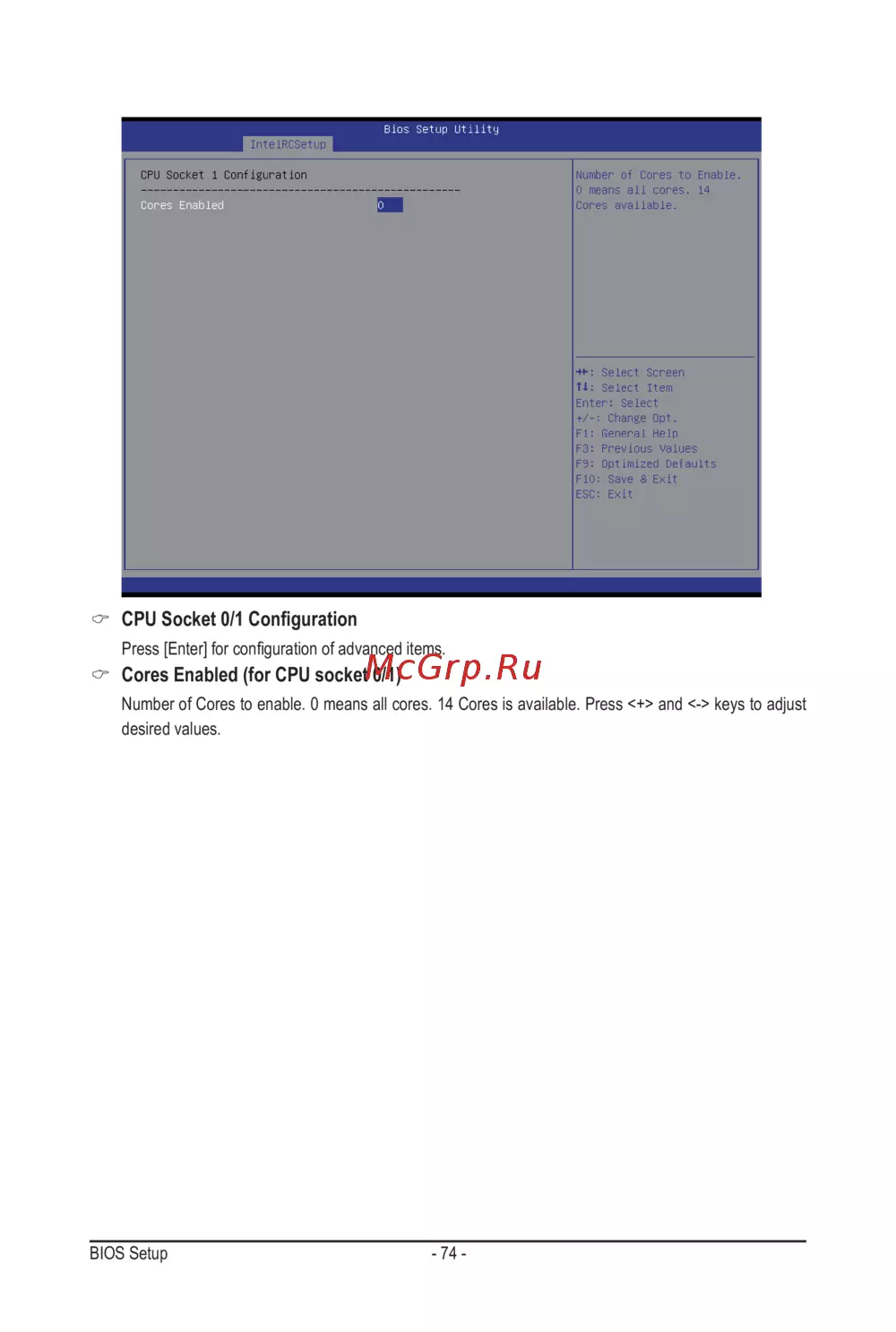

Gigabyte MD70-HB2 (rev. 1.0) [74/130] Cpu socket 0 1 configuration

BIOS Setup - 74 -

CPU Socket 0/1 Conguration

 Press[Enter]forcongurationofadvanceditems.

Cores Enabled (for CPU socket 0/1)

Number of Cores to enable. 0 means all cores. 14 Cores is available. Press <+> and <-> keys to adjust

desired values.
