- 79 - BIOS Setup

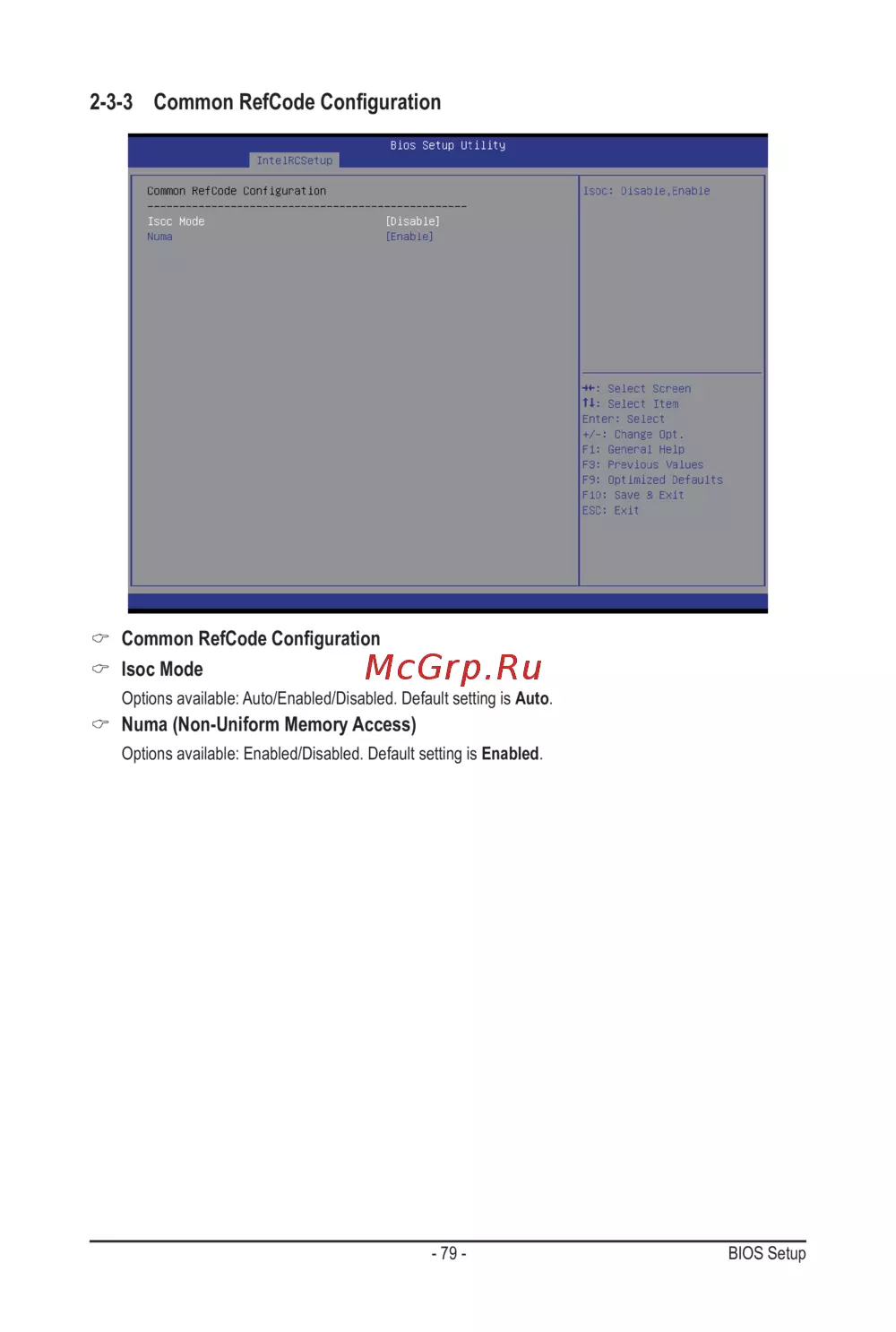

2-3-3 Common RefCode Conguration
Common RefCode Conguration
Isoc Mode
Options available: Auto/Enabled/Disabled. Default setting is Auto.
Numa (Non-Uniform Memory Access)
Options available: Enabled/Disabled. Default setting is Enabled.
