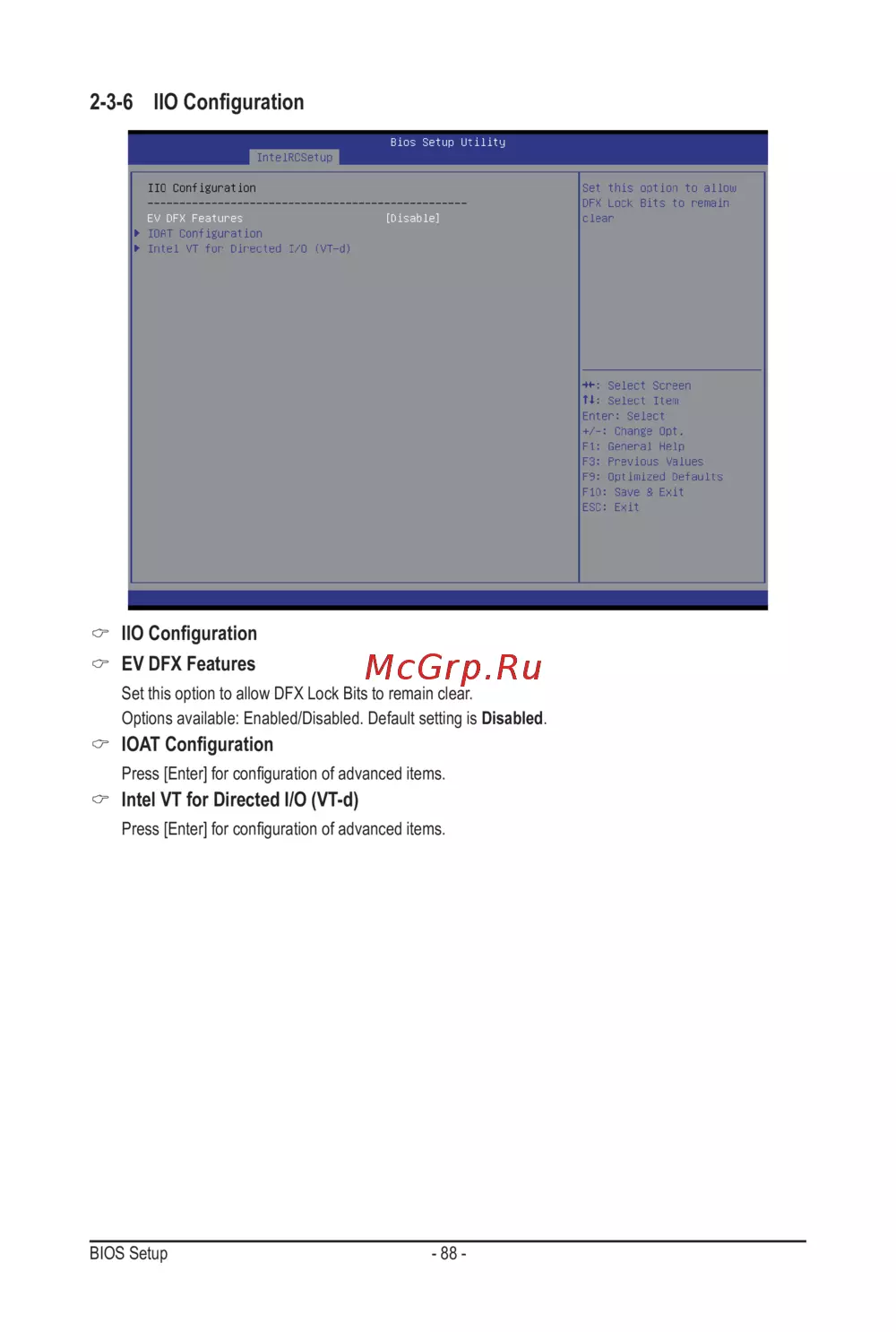

Gigabyte MD70-HB2 (rev. 1.0) [88/130] Ioat configuration

BIOS Setup - 88 -

2-3-6 IIO Conguration

IIO Conguration

EV DFX Features

Set this option to allow DFX Lock Bits to remain clear.

Options available: Enabled/Disabled. Default setting is Disabled.

IOAT Conguration

Press[Enter]forcongurationofadvanceditems.

Intel VT for Directed I/O (VT-d)

Press[Enter]forcongurationofadvanceditems.
