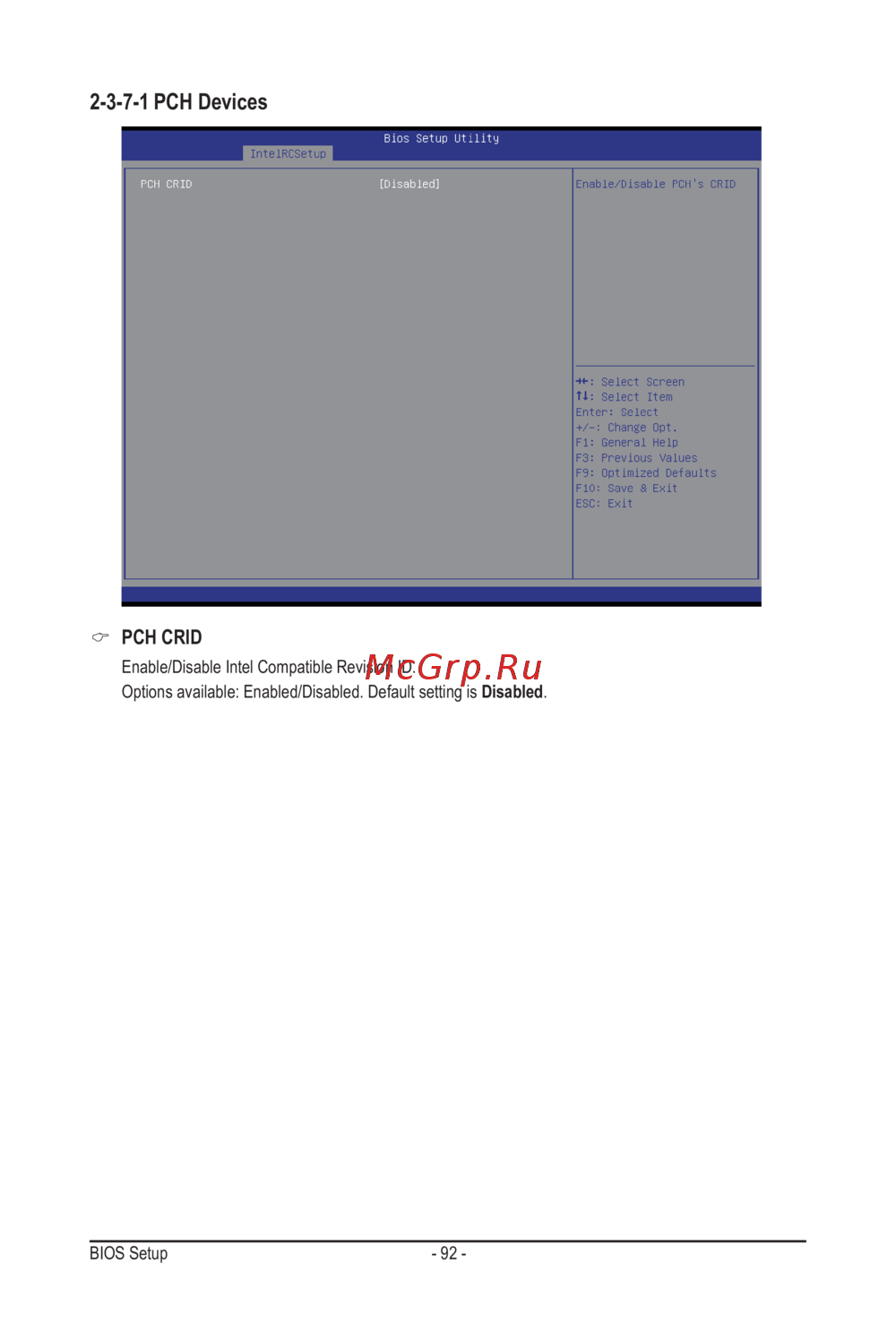

BIOS Setup - 92 -
2-3-7-1 PCH Devices
PCH CRID
Enable/Disable Intel Compatible Revision ID.
Options available: Enabled/Disabled. Default setting is Disabled.
