Gigabyte MD80-TM0 (rev. 1.0) [105/122] 4 2 view fru information

- 105 - BIOS Setup

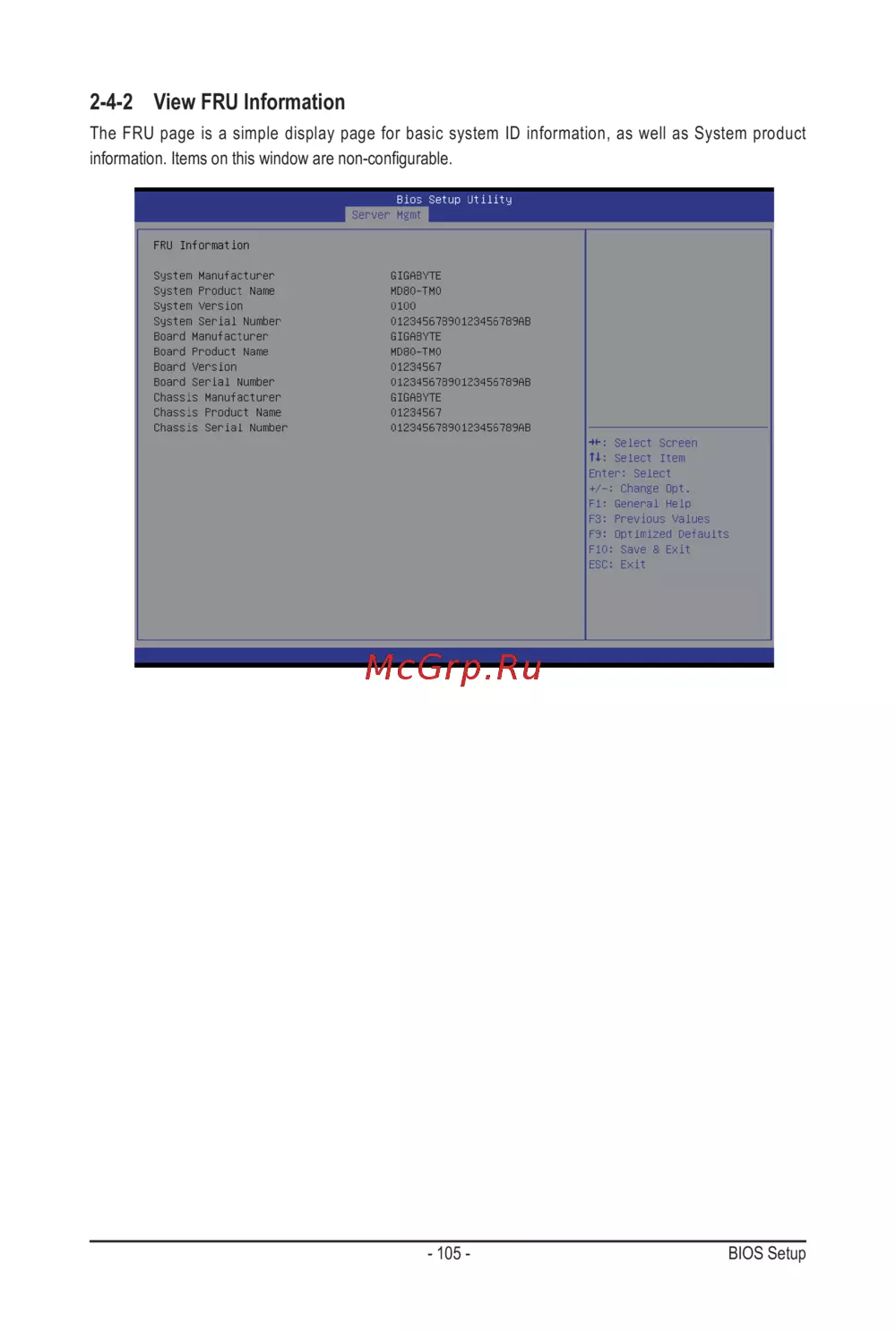

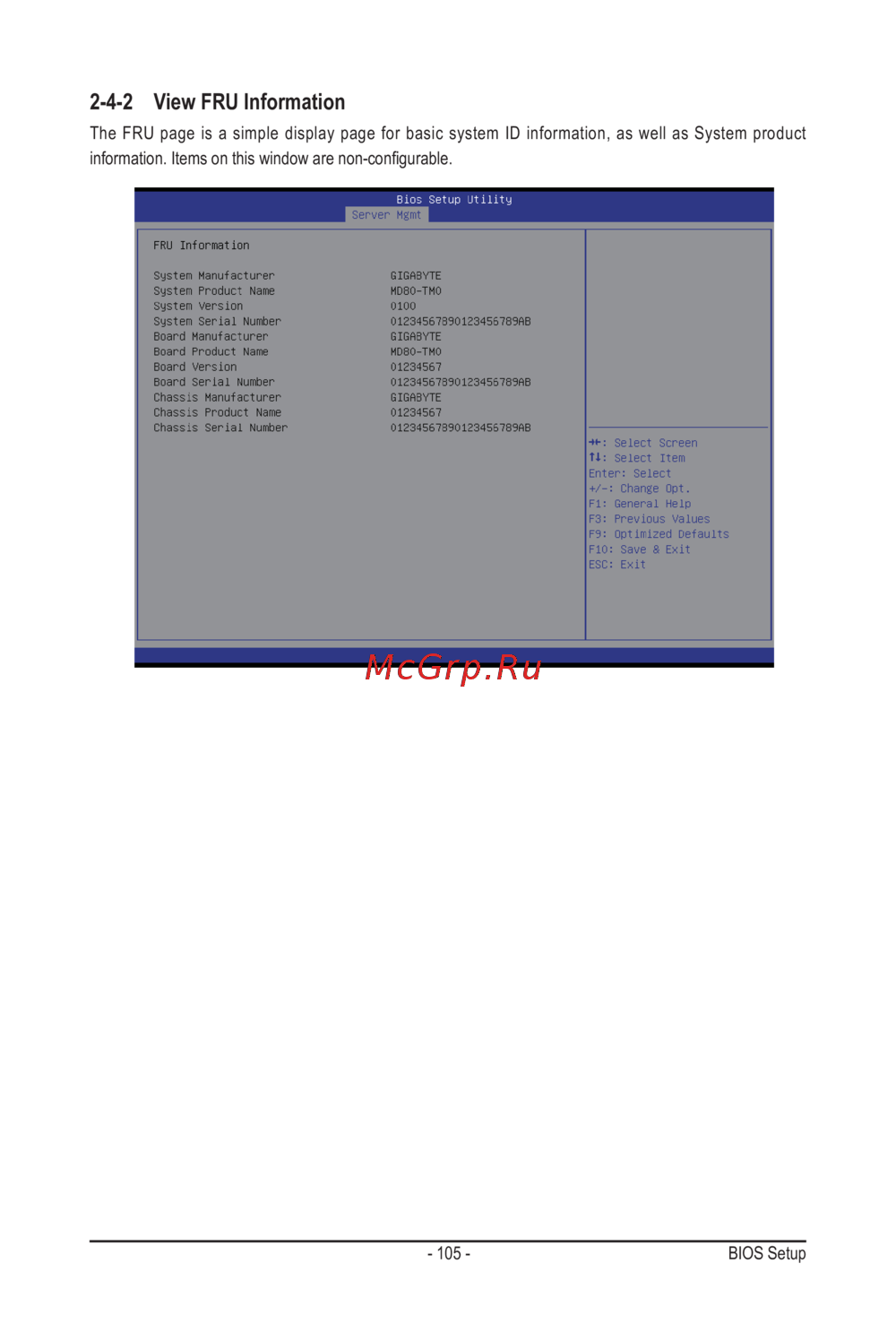

2-4-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product

information.Itemsonthiswindowarenon-congurable.
