Gigabyte MD80-TM0 (rev. 1.0) [31/122] Open normal operation

- 31 - Hardware Installation

Open: Normal operation.

Closed: Active chassis intrustion alert.

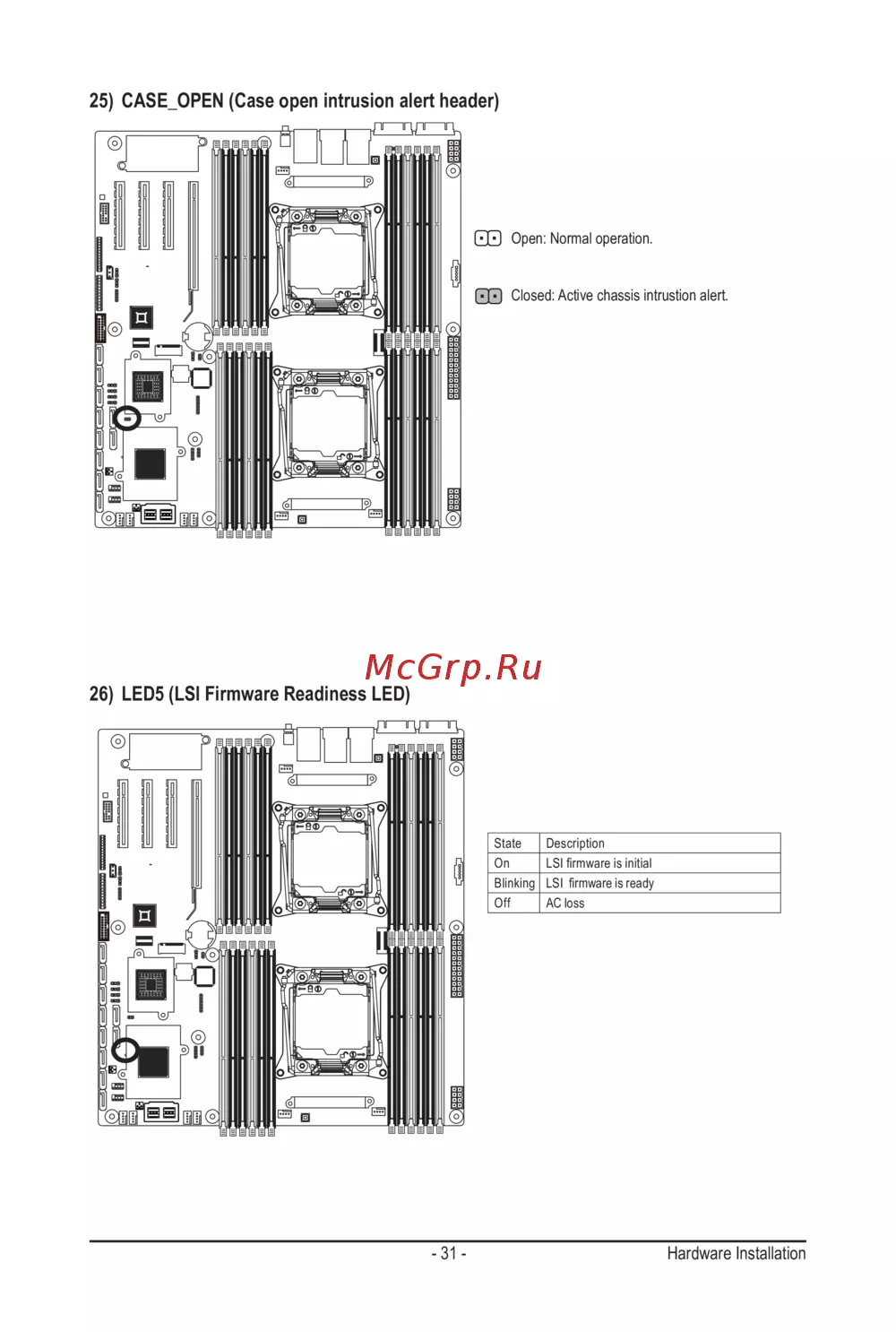

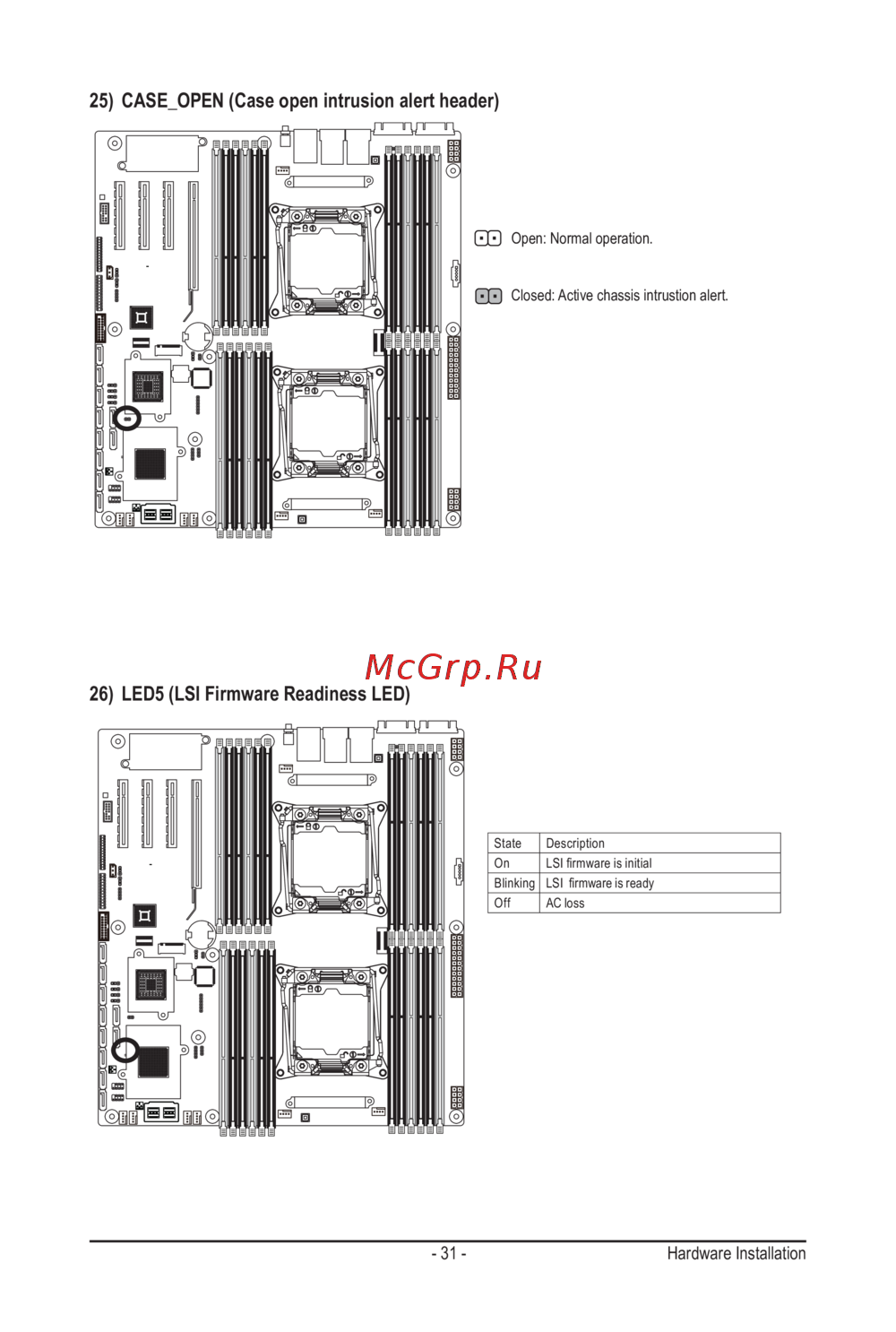

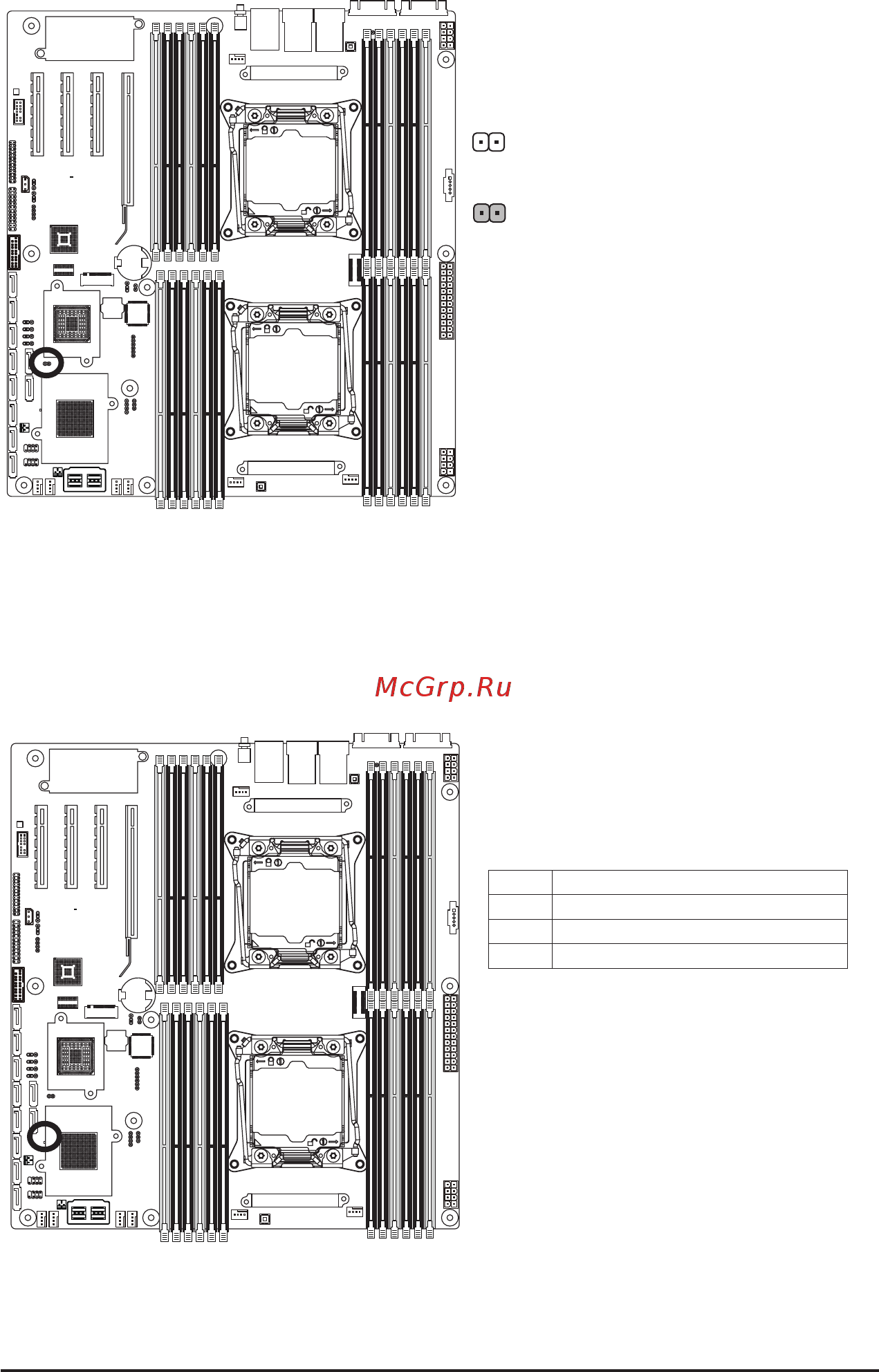

25) CASE_OPEN (Case open intrusion alert header)

26) LED5 (LSI Firmware Readiness LED)

State Description

On LSIrmwareisinitial

Blinking LSIrmwareisready

Off AC loss
