Gigabyte MW50-SV0 (rev. 1.0) [105/132] Me firmware status 1 2

- 105 - BIOS Setup

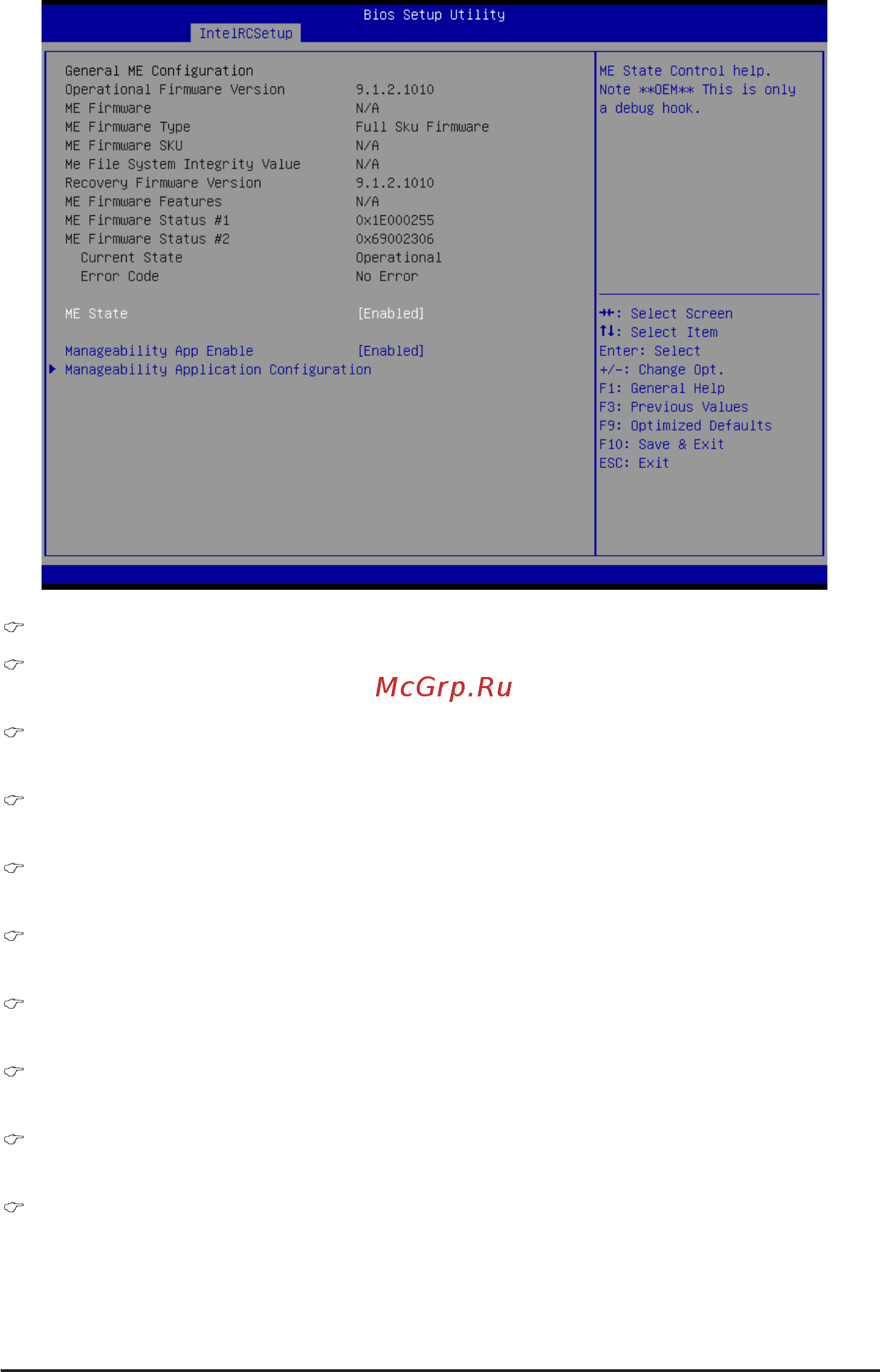

2-3-9 ServerMEConguration

 GreneralMEConguration

Operational Firmware Version

Display Operational Firmware Version information.

Recovery Firmware Version

Display Recovery Firmware Version information.

ME Firmware Features

Display ME Firmware features information.

ME Firmware Status #1/#2

Display ME Firmware status information.

Current State (for ME Firmware)

Display ME Firmware current status information.

Error Code (for ME Firmware)

Display ME Firmware status error code.

ME State

Options available: Enabled/Disabled. Default setting is Enabled.

Manageability App Enable

Options available: Enabled/Disabled. Default setting is Enabled.

 ManageabilityApplicationConguration

Press[Enter]forcongurationofadvanceditems.
