Инструкция Страница: 35

Gigabyte MW50-SV0 (rev. 1.0) [35/132] Bios_rcvr bios recovery jumper

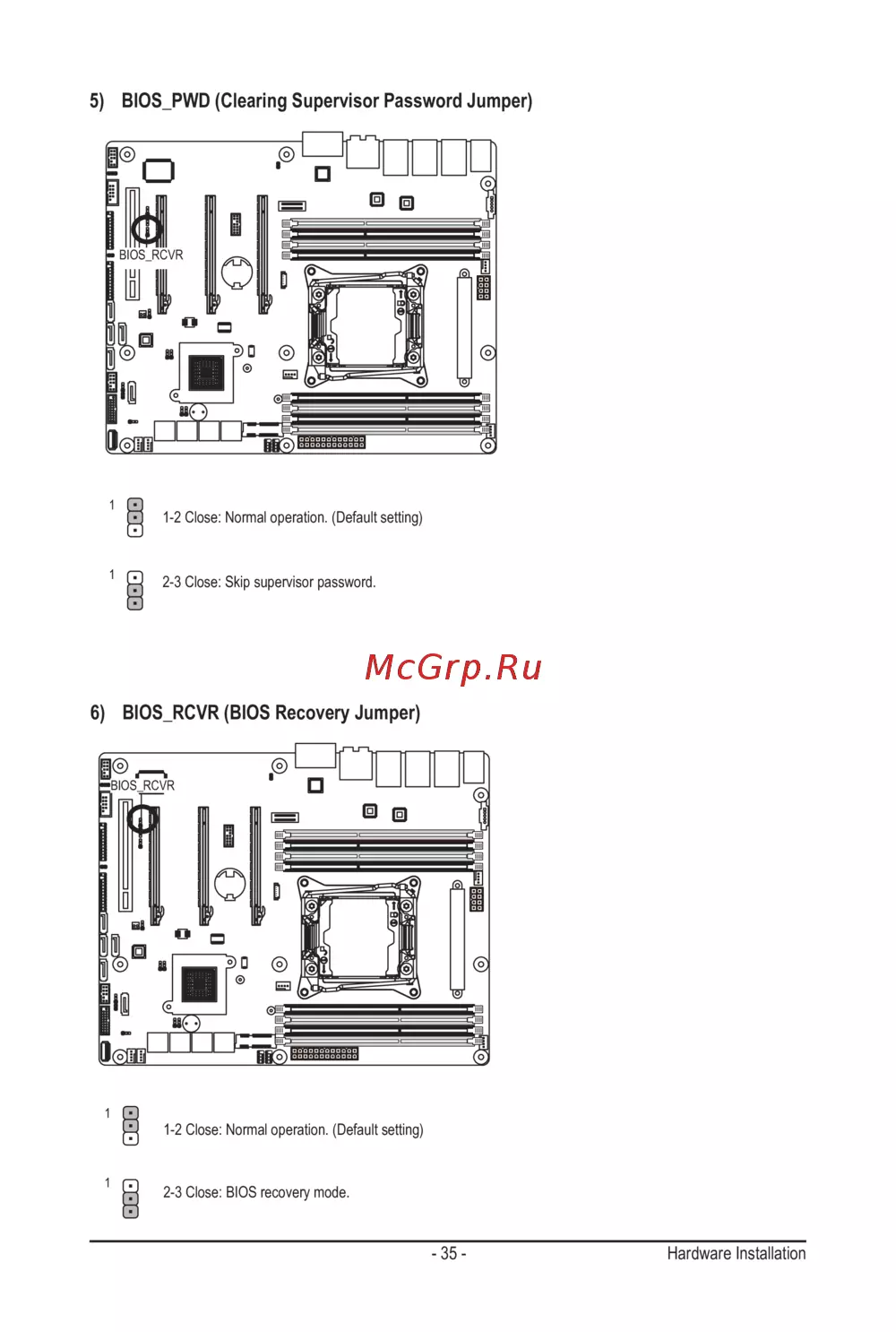

- 35 - Hardware Installation

2-3 Close: BIOS recovery mode.

1-2 Close: Normal operation. (Default setting)

6) BIOS_RCVR (BIOS Recovery Jumper)

BIOS_RCVR

5) BIOS_PWD (Clearing Supervisor Password Jumper)

2-3 Close: Skip supervisor password.

1-2 Close: Normal operation. (Default setting)

BIOS_RCVR
