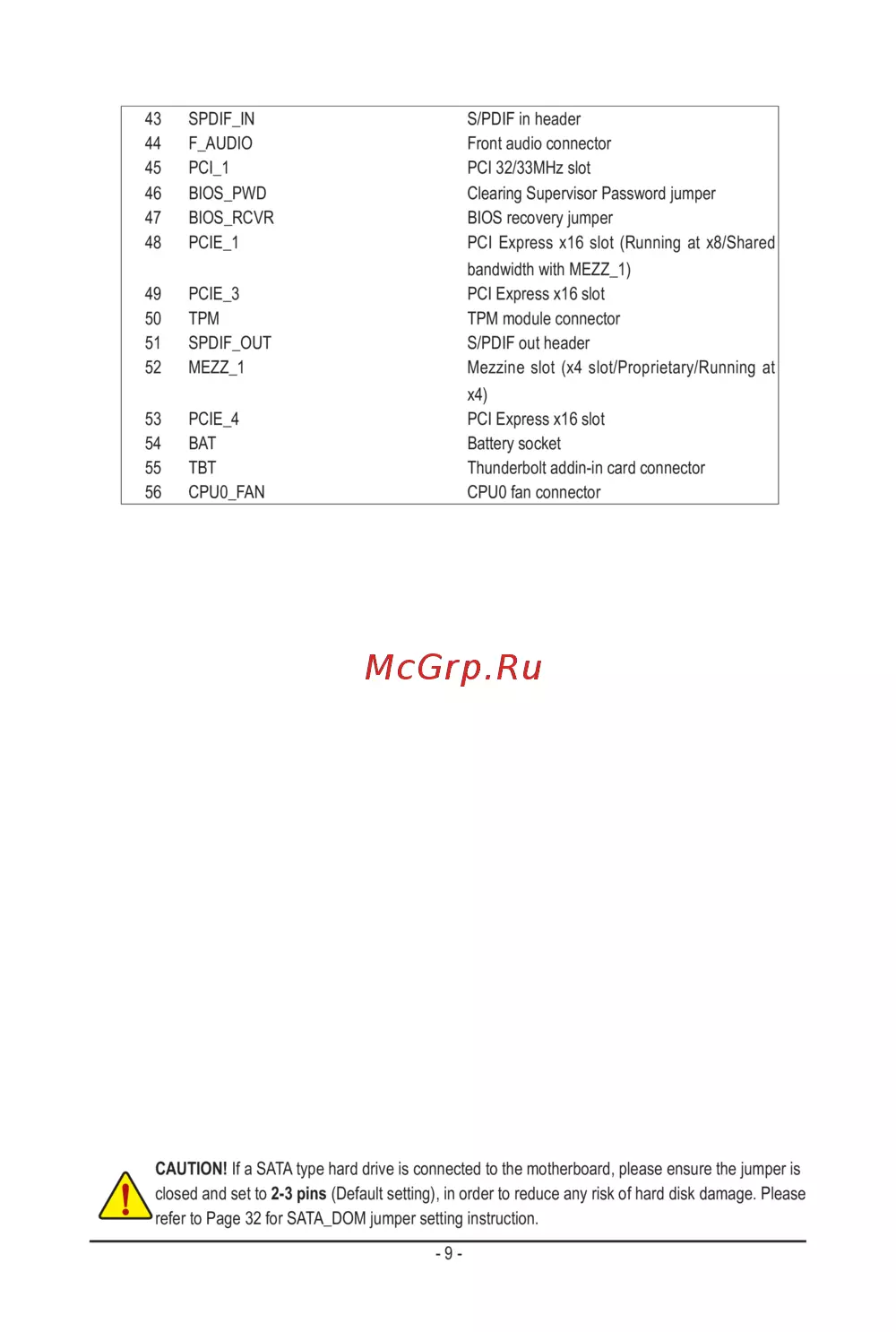

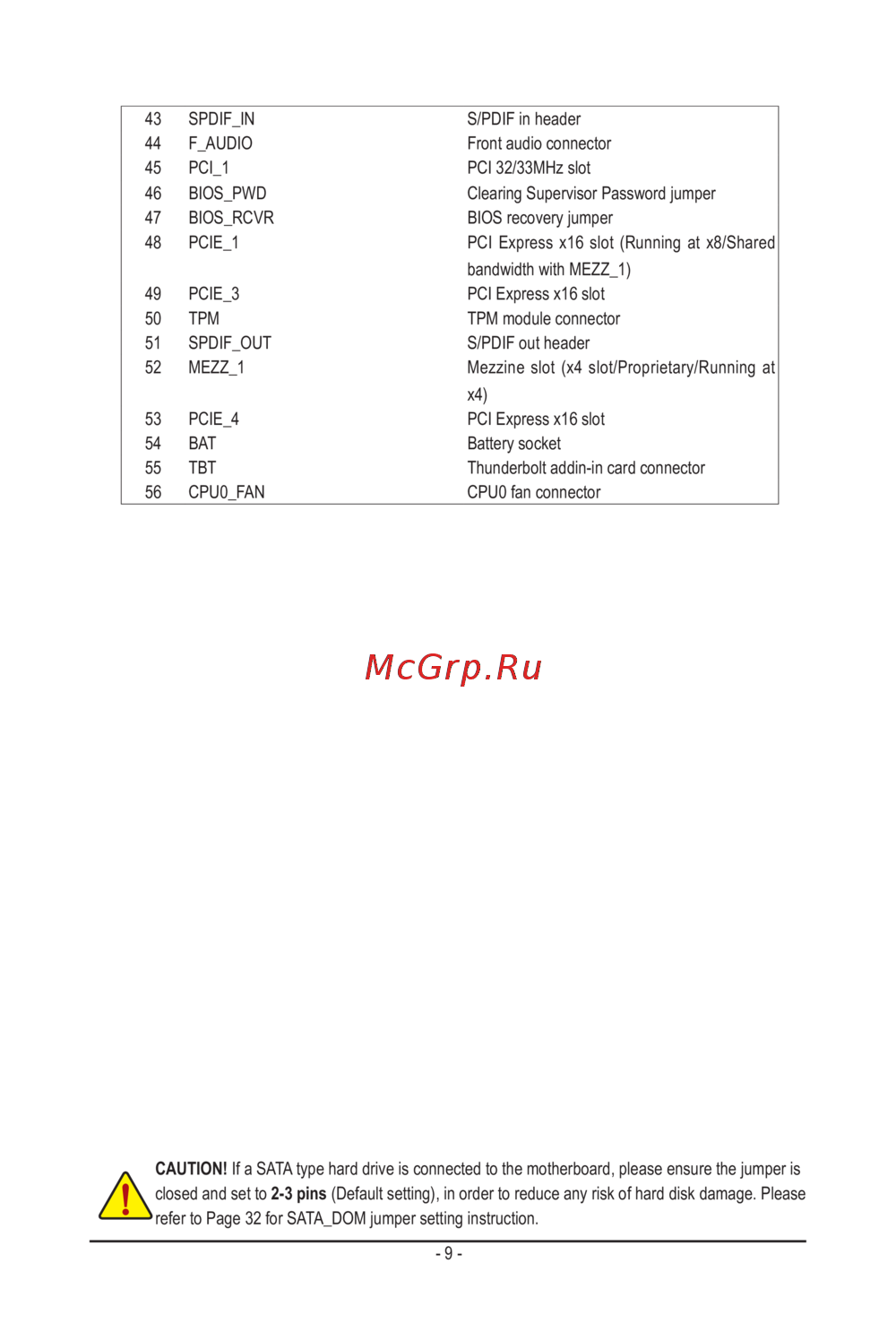

- 9 -

43 SPDIF_IN S/PDIF in header

44 F_AUDIO Front audio connector

45 PCI_1 PCI 32/33MHz slot

46 BIOS_PWD Clearing Supervisor Password jumper

47 BIOS_RCVR BIOS recovery jumper

48 PCIE_1 PCI Express x16 slot (Running at x8/Shared

bandwidth with MEZZ_1)

49 PCIE_3 PCI Express x16 slot

50 TPM TPM module connector

51 SPDIF_OUT S/PDIF out header

52 MEZZ_1 Mezzine slot (x4 slot/Proprietary/Running at

x4)

53 PCIE_4 PCI Express x16 slot

54 BAT Battery socket

55 TBT Thunderbolt addin-in card connector

56 CPU0_FAN CPU0 fan connector

CAUTION! If a SATA type hard drive is connected to the motherboard, please ensure the jumper is

closed and set to 2-3 pins (Default setting), in order to reduce any risk of hard disk damage. Please

refer to Page 32 for SATA_DOM jumper setting instruction.
