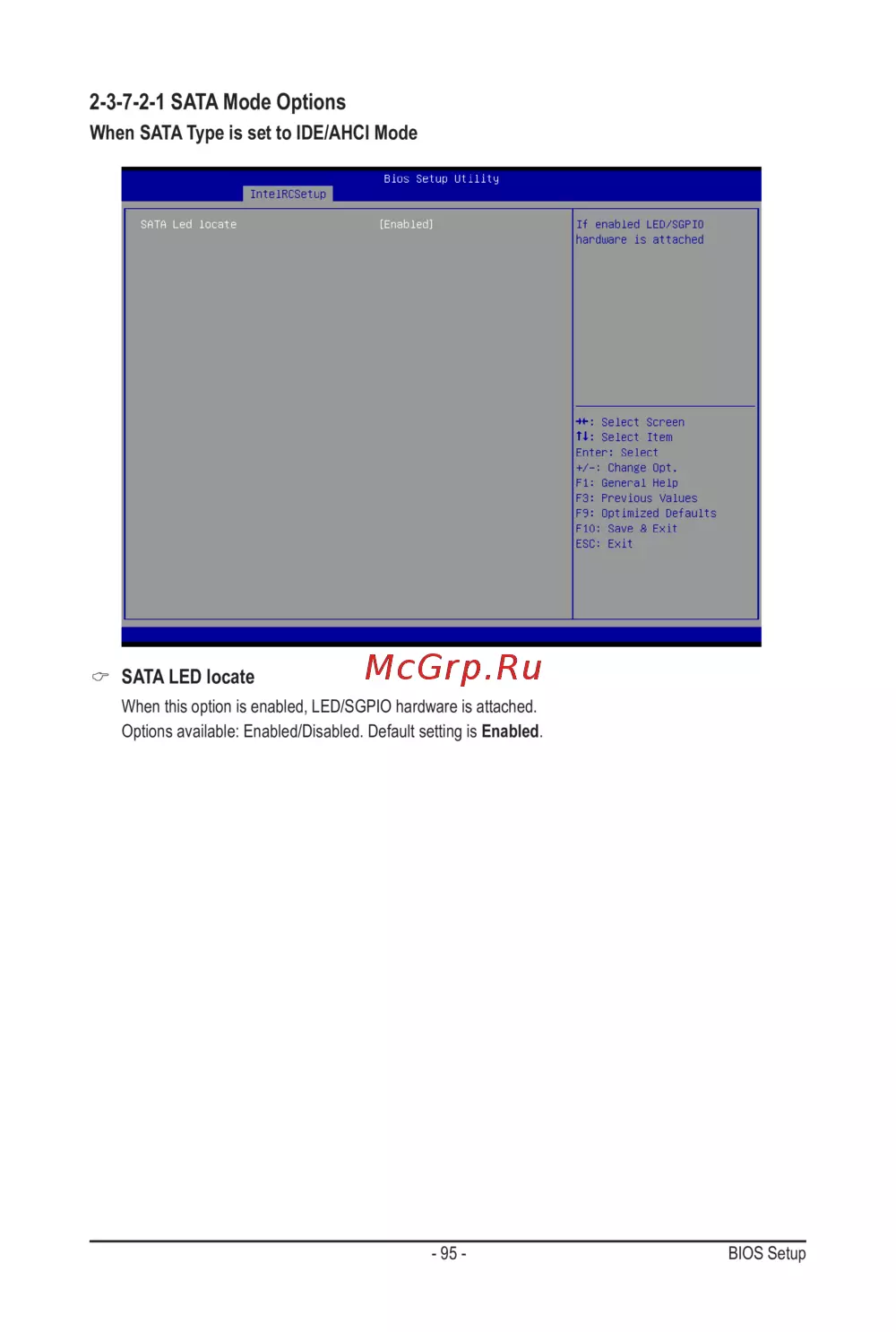

Gigabyte MW50-SV0 (rev. 1.0) [95/132] When sata type is set to ide ahci mode

- 95 - BIOS Setup

2-3-7-2-1 SATA Mode Options

SATA LED locate

When this option is enabled, LED/SGPIO hardware is attached.

Options available: Enabled/Disabled. Default setting is Enabled.

When SATA Type is set to IDE/AHCI Mode
