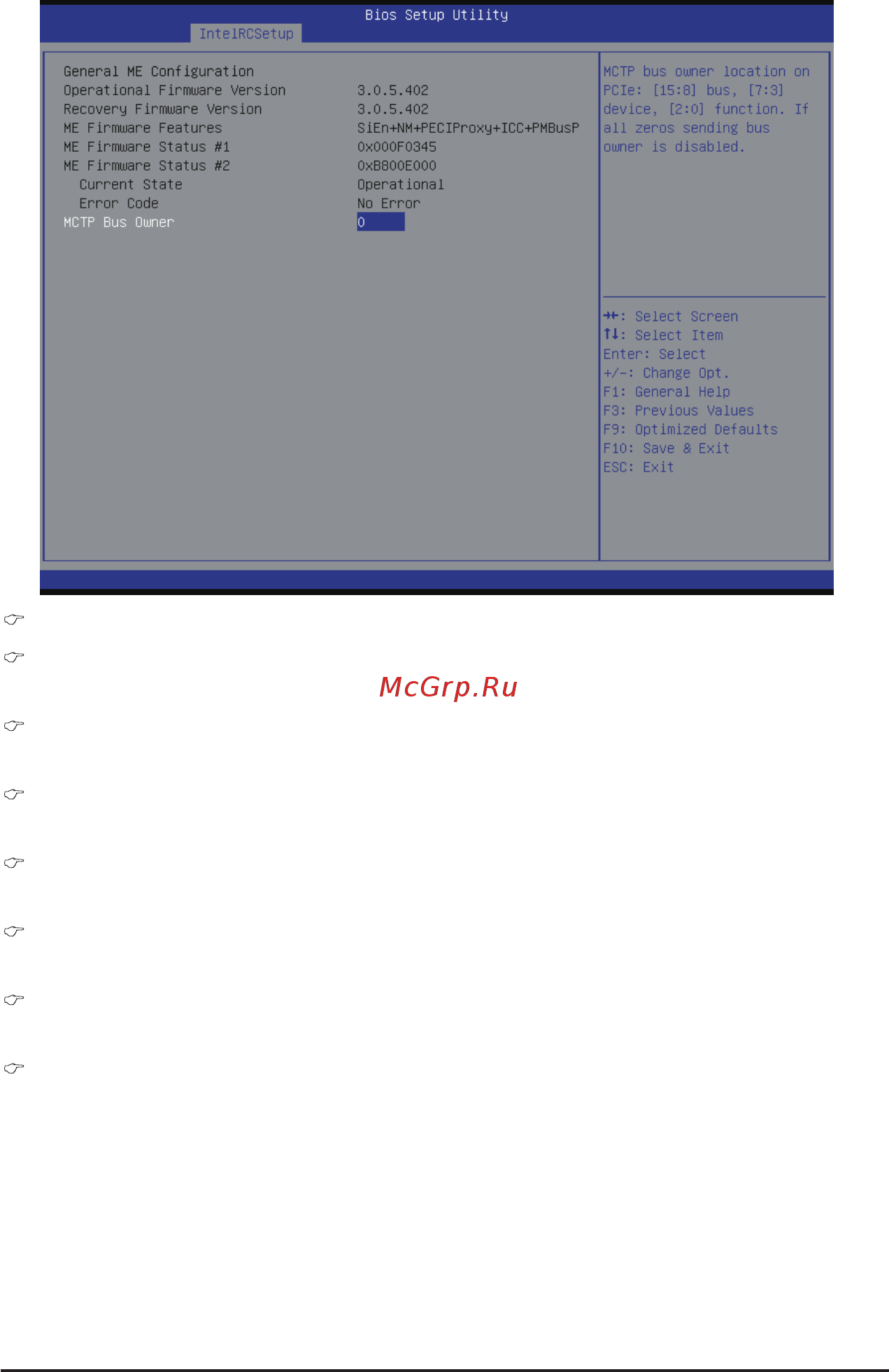

BIOS Setup - 100 -

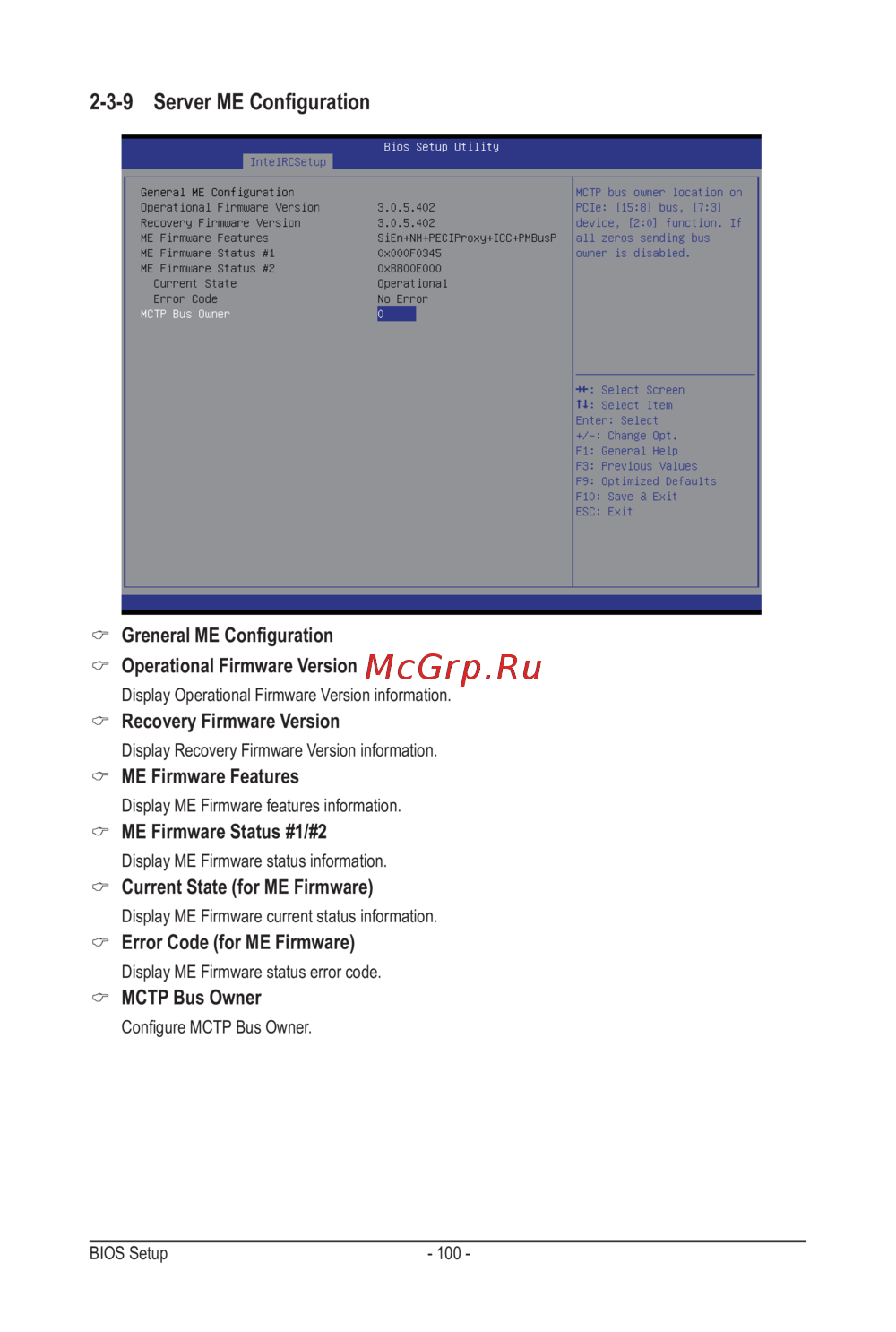

2-3-9 Server ME Conguration

Greneral ME Conguration

Operational Firmware Version

Display Operational Firmware Version information.

Recovery Firmware Version

Display Recovery Firmware Version information.

ME Firmware Features

Display ME Firmware features information.

ME Firmware Status #1/#2

Display ME Firmware status information.

Current State (for ME Firmware)

Display ME Firmware current status information.

Error Code (for ME Firmware)

Display ME Firmware status error code.

MCTP Bus Owner

 CongureMCTPBusOwner.
