Gigabyte MU70-SU0 (rev. 1.0) [102/125] Whea support windows hardware error architecture

BIOS Setup - 102 -

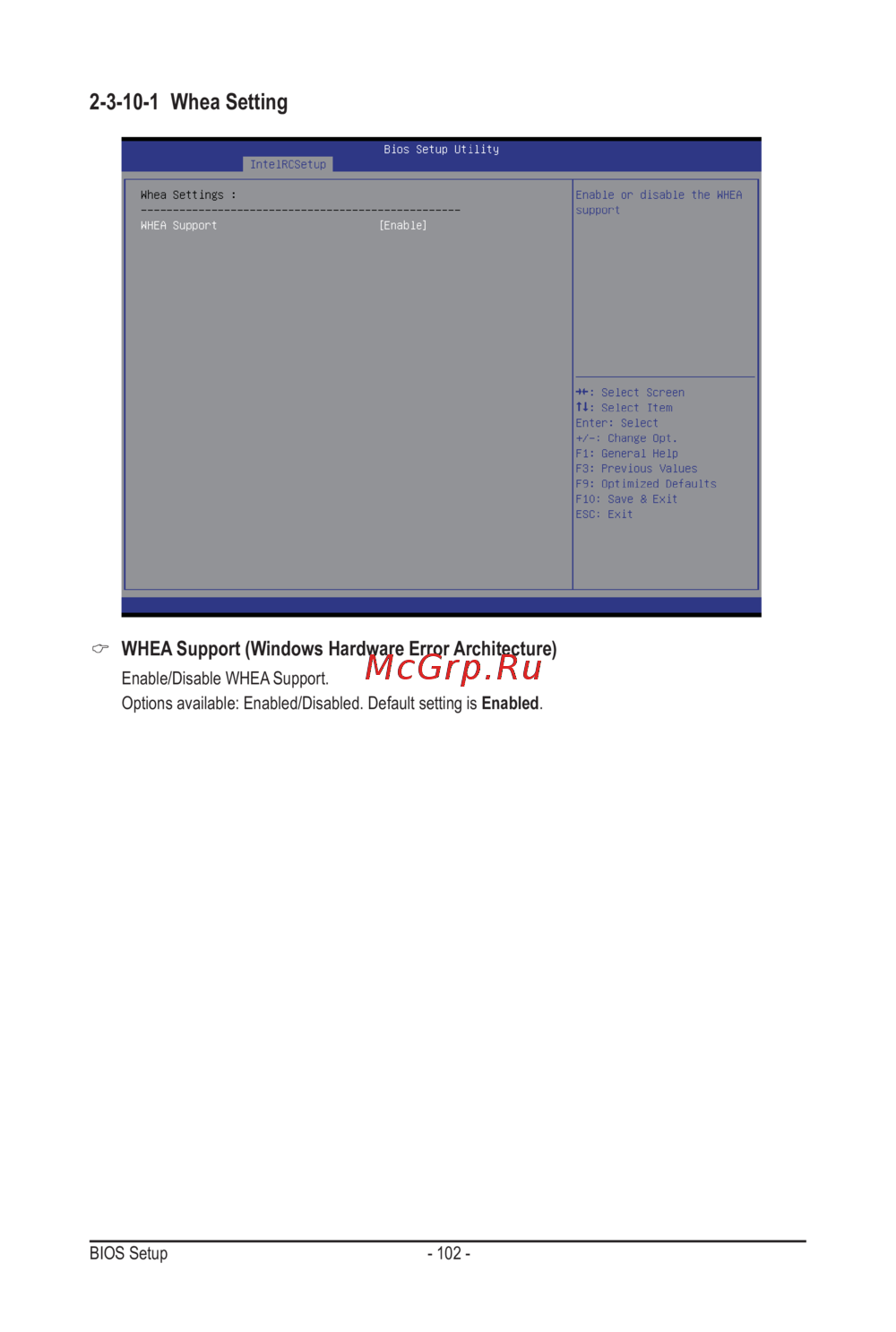

2-3-10-1 Whea Setting

WHEA Support (Windows Hardware Error Architecture)

Enable/Disable WHEA Support.

Options available: Enabled/Disabled. Default setting is Enabled.
