Gigabyte MU70-SU0 (rev. 1.0) [103/125] Memory error enabling un correctable errors disable memory

- 103 - BIOS Setup

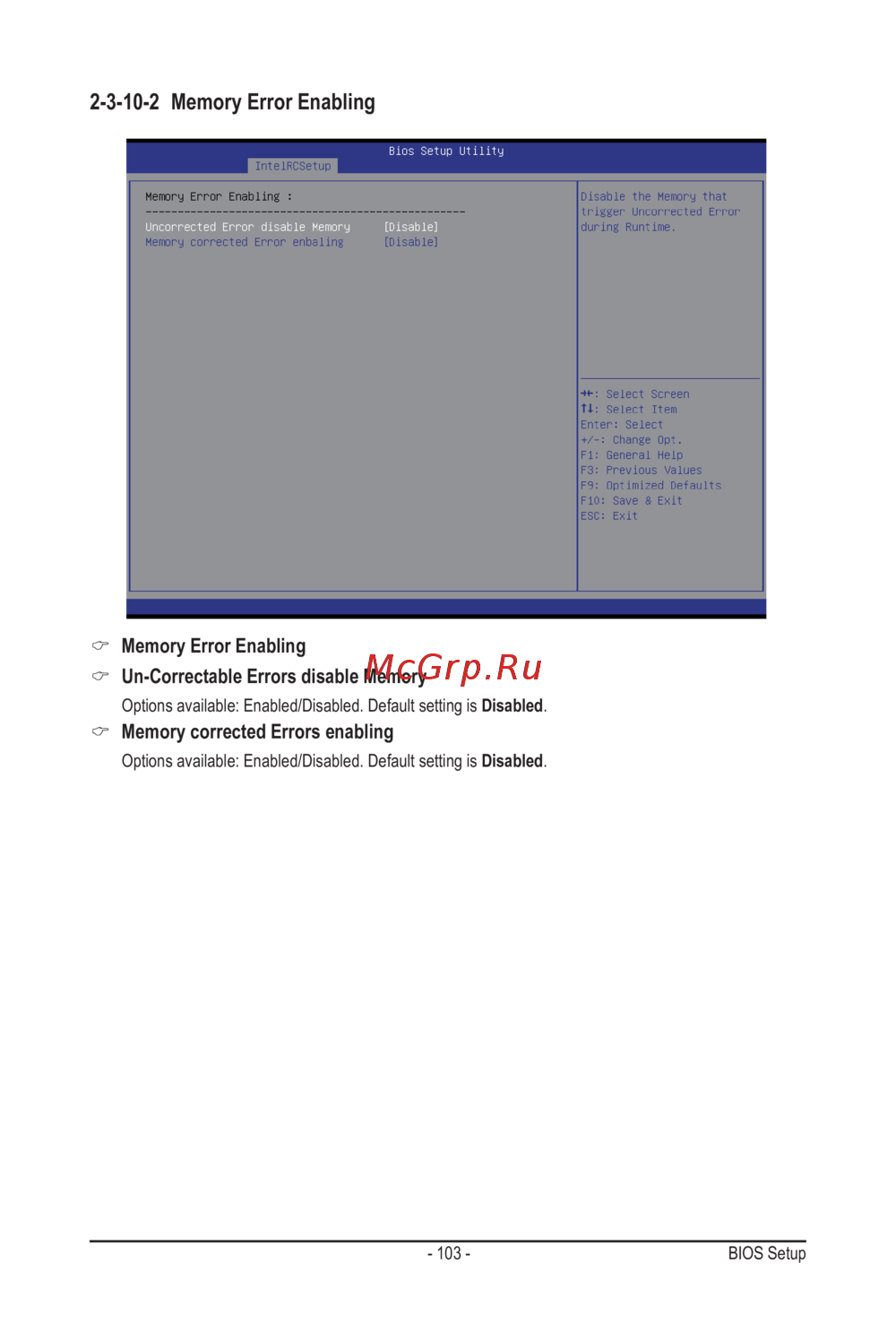

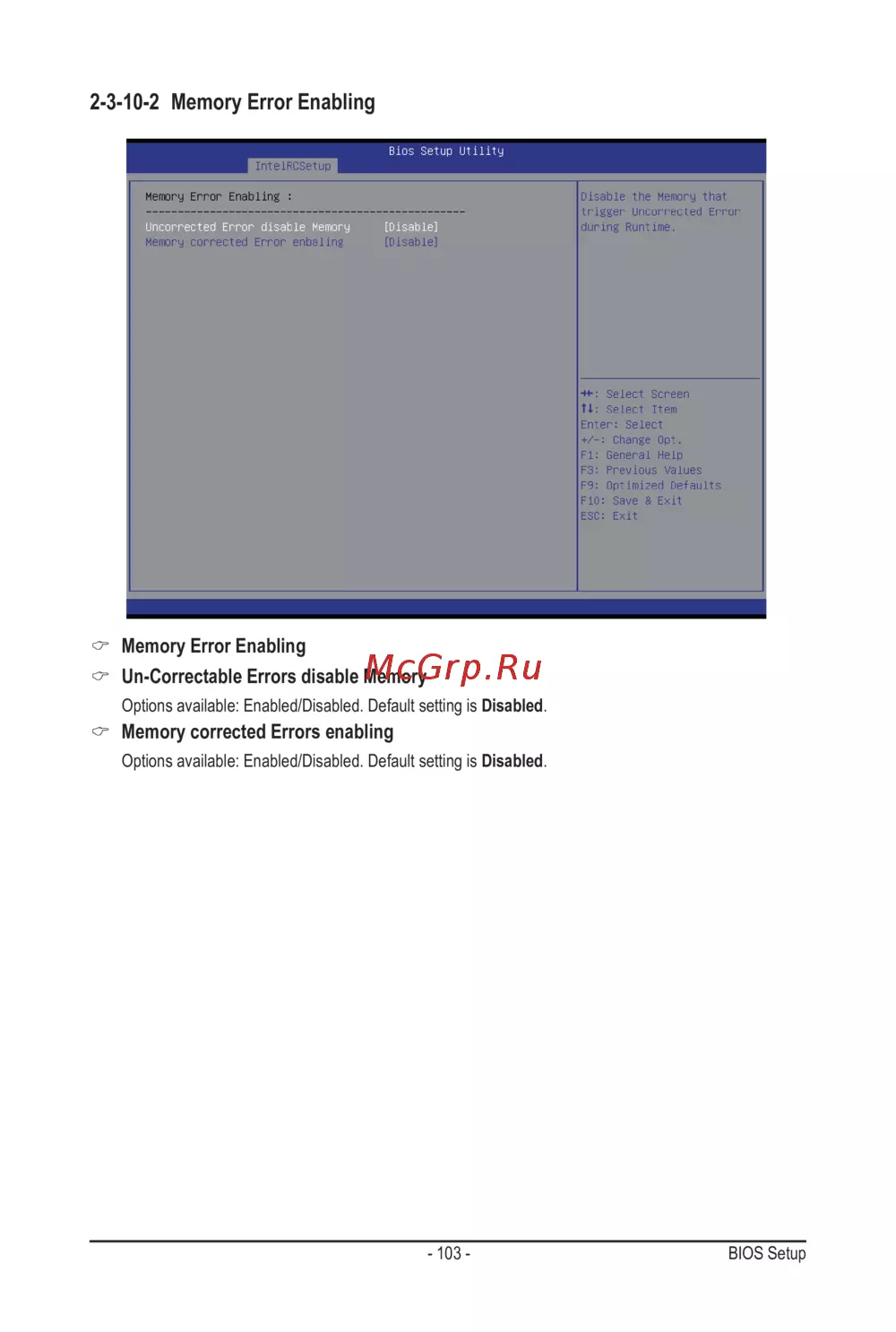

2-3-10-2 Memory Error Enabling

Memory Error Enabling

Un-Correctable Errors disable Memory

Options available: Enabled/Disabled. Default setting is Disabled.

Memory corrected Errors enabling

Options available: Enabled/Disabled. Default setting is Disabled.
