Gigabyte MU70-SU0 (rev. 1.0) [108/125] 4 2 view fru information

BIOS Setup - 108 -

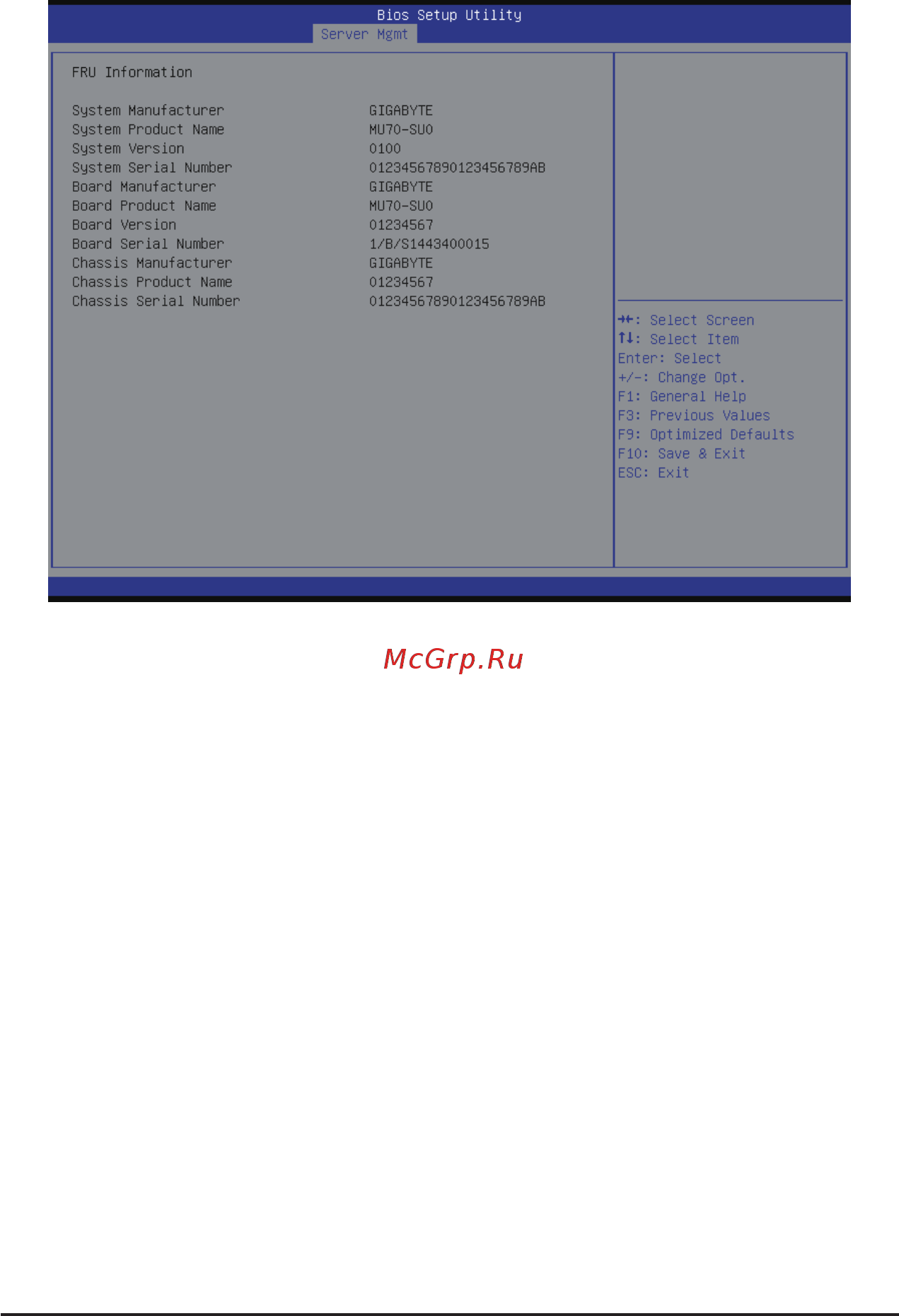

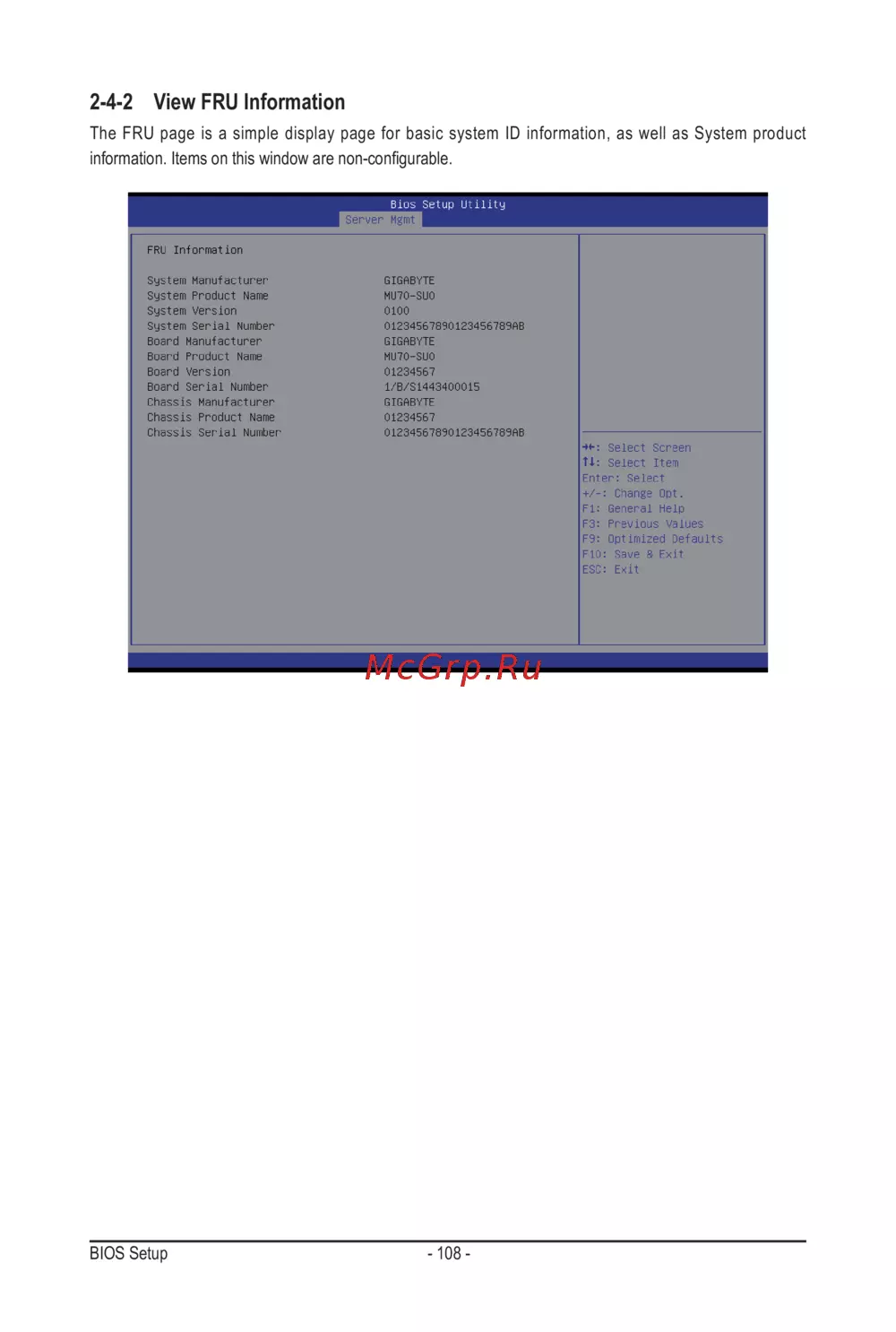

2-4-2 View FRU Information

The FRU page is a simple display page for basic system ID information, as well as System product

information.Itemsonthiswindowarenon-congurable.
