- 11 - Hardware Installation

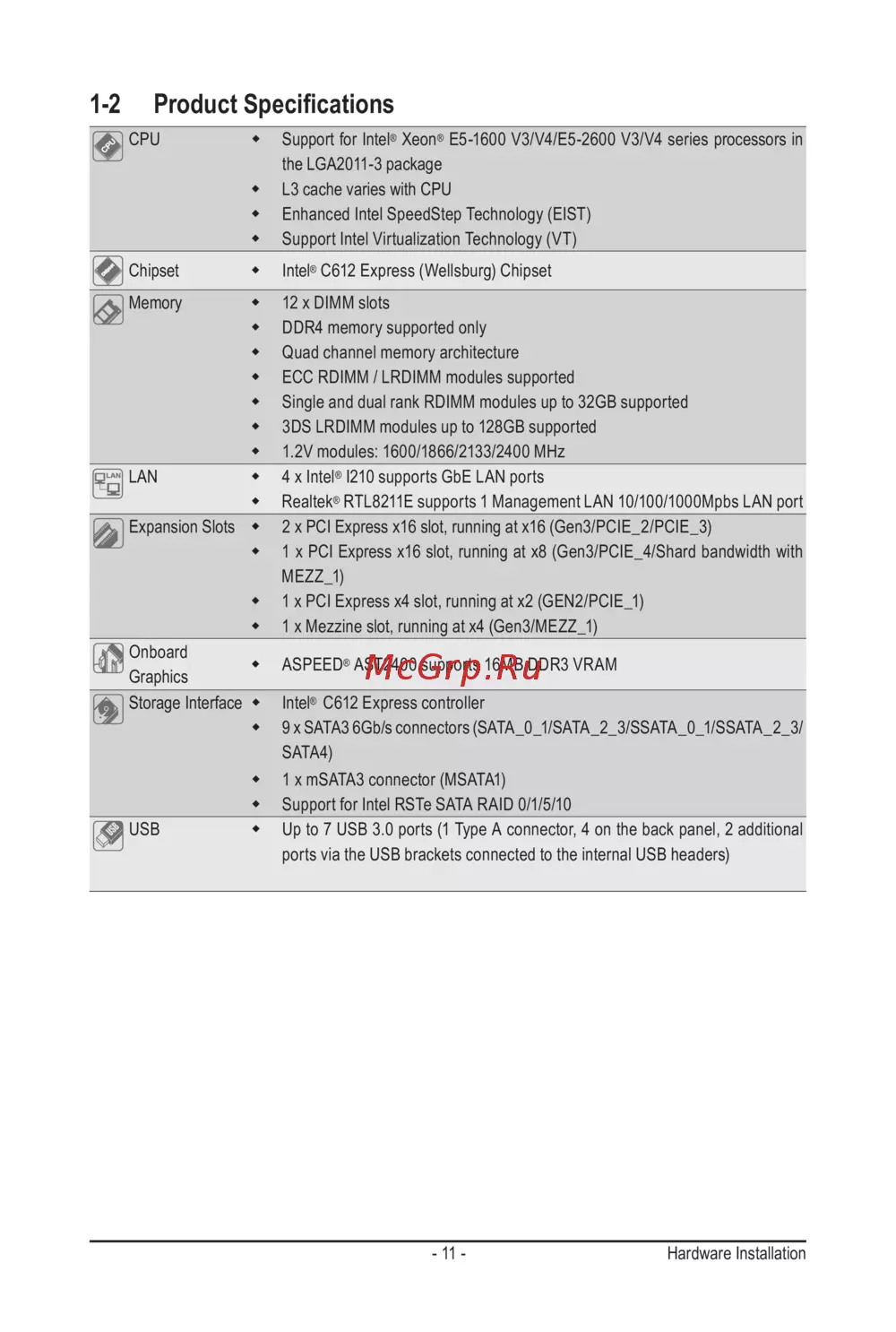

1-2 Product Specications
CPU Support for Intel
®
Xeon
®
E5-1600 V3/V4/E5-2600 V3/V4 series processors in
the LGA2011-3 package
L3 cache varies with CPU
Enhanced Intel SpeedStep Technology (EIST)
Support Intel Virtualization Technology (VT)
Chipset Intel
®
C612 Express (Wellsburg) Chipset
Memory 12 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN 4 x Intel
®
I210 supports GbE LAN ports
Realtek
®
RTL8211E supports 1 Management LAN 10/100/1000Mpbs LAN port
Expansion Slots 2 x PCI Express x16 slot, running at x16 (Gen3/PCIE_2/PCIE_3)
1 x PCI Express x16 slot, running at x8 (Gen3/PCIE_4/Shard bandwidth with
MEZZ_1)
1 x PCI Express x4 slot, running at x2 (GEN2/PCIE_1)
1 x Mezzine slot, running at x4 (Gen3/MEZZ_1)
Onboard
Graphics
ASPEED
®
AST2400 supports 16MB DDR3 VRAM
Storage Interface Intel
®
C612 Express controller
9 x SATA3 6Gb/s connectors (SATA_0_1/SATA_2_3/SSATA_0_1/SSATA_2_3/
SATA4)
1 x mSATA3 connector (MSATA1)
Support for Intel RSTe SATA RAID 0/1/5/10
USB Up to 7 USB 3.0 ports (1 Type A connector, 4 on the back panel, 2 additional
ports via the USB brackets connected to the internal USB headers)
