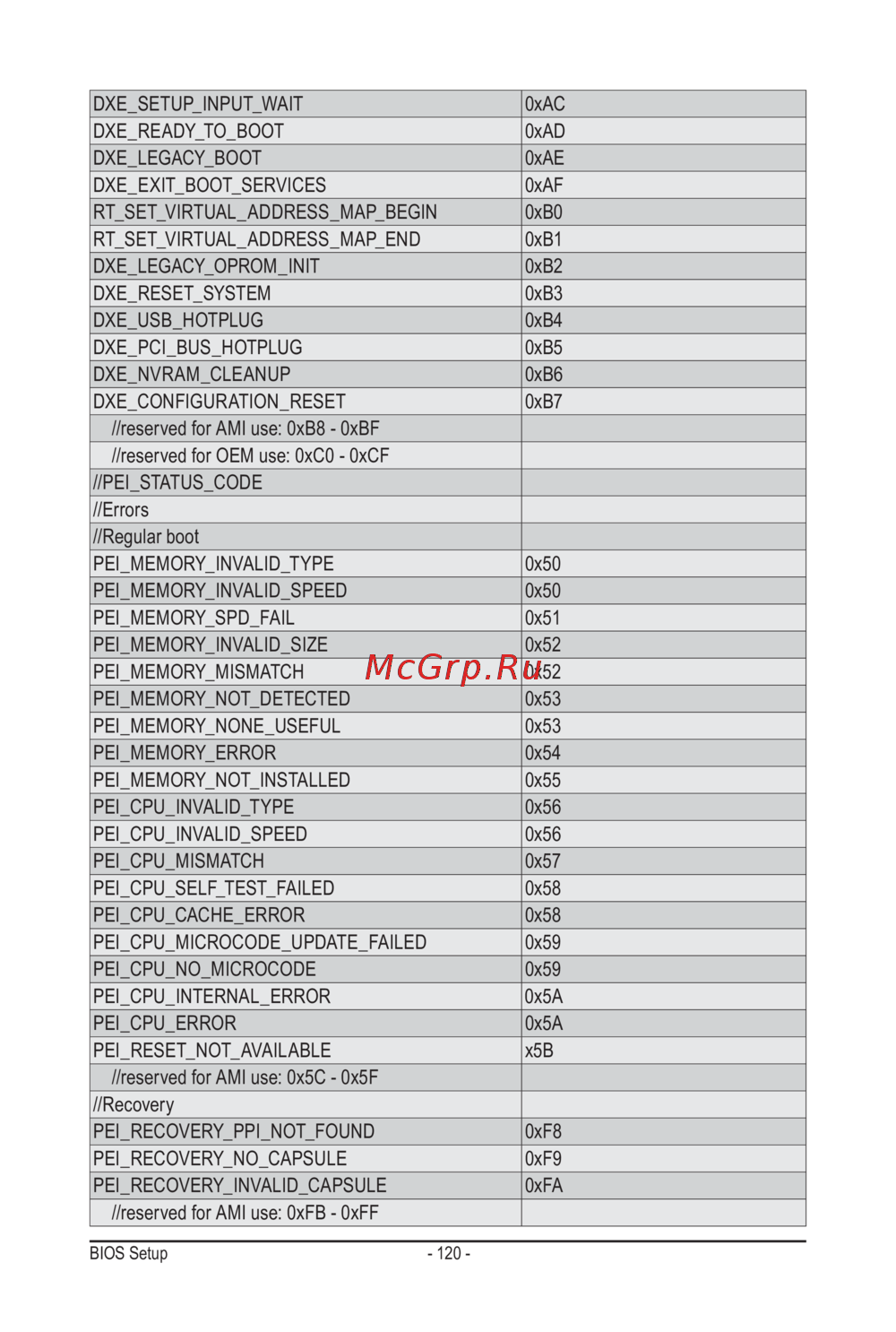

BIOS Setup - 120 -
DXE_SETUP_INPUT_WAIT 0xAC
DXE_READY_TO_BOOT 0xAD
DXE_LEGACY_BOOT 0xAE
DXE_EXIT_BOOT_SERVICES 0xAF
RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB0
RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB1
DXE_LEGACY_OPROM_INIT 0xB2
DXE_RESET_SYSTEM 0xB3
DXE_USB_HOTPLUG 0xB4
DXE_PCI_BUS_HOTPLUG 0xB5
DXE_NVRAM_CLEANUP 0xB6
DXE_CONFIGURATION_RESET 0xB7
//reserved for AMI use: 0xB8 - 0xBF
//reserved for OEM use: 0xC0 - 0xCF
//PEI_STATUS_CODE
//Errors
//Regular boot
PEI_MEMORY_INVALID_TYPE 0x50
PEI_MEMORY_INVALID_SPEED 0x50
PEI_MEMORY_SPD_FAIL 0x51
PEI_MEMORY_INVALID_SIZE 0x52
PEI_MEMORY_MISMATCH 0x52
PEI_MEMORY_NOT_DETECTED 0x53
PEI_MEMORY_NONE_USEFUL 0x53
PEI_MEMORY_ERROR 0x54
PEI_MEMORY_NOT_INSTALLED 0x55
PEI_CPU_INVALID_TYPE 0x56
PEI_CPU_INVALID_SPEED 0x56
PEI_CPU_MISMATCH 0x57
PEI_CPU_SELF_TEST_FAILED 0x58
PEI_CPU_CACHE_ERROR 0x58
PEI_CPU_MICROCODE_UPDATE_FAILED 0x59
PEI_CPU_NO_MICROCODE 0x59
PEI_CPU_INTERNAL_ERROR 0x5A
PEI_CPU_ERROR 0x5A
PEI_RESET_NOT_AVAILABLE x5B
//reserved for AMI use: 0x5C - 0x5F
//Recovery
PEI_RECOVERY_PPI_NOT_FOUND 0xF8
PEI_RECOVERY_NO_CAPSULE 0xF9
PEI_RECOVERY_INVALID_CAPSULE 0xFA
//reserved for AMI use: 0xFB - 0xFF
