Gigabyte MU70-SU0 (rev. 1.0) [20/125] 6 internal connectors

Hardware Installation - 20 -

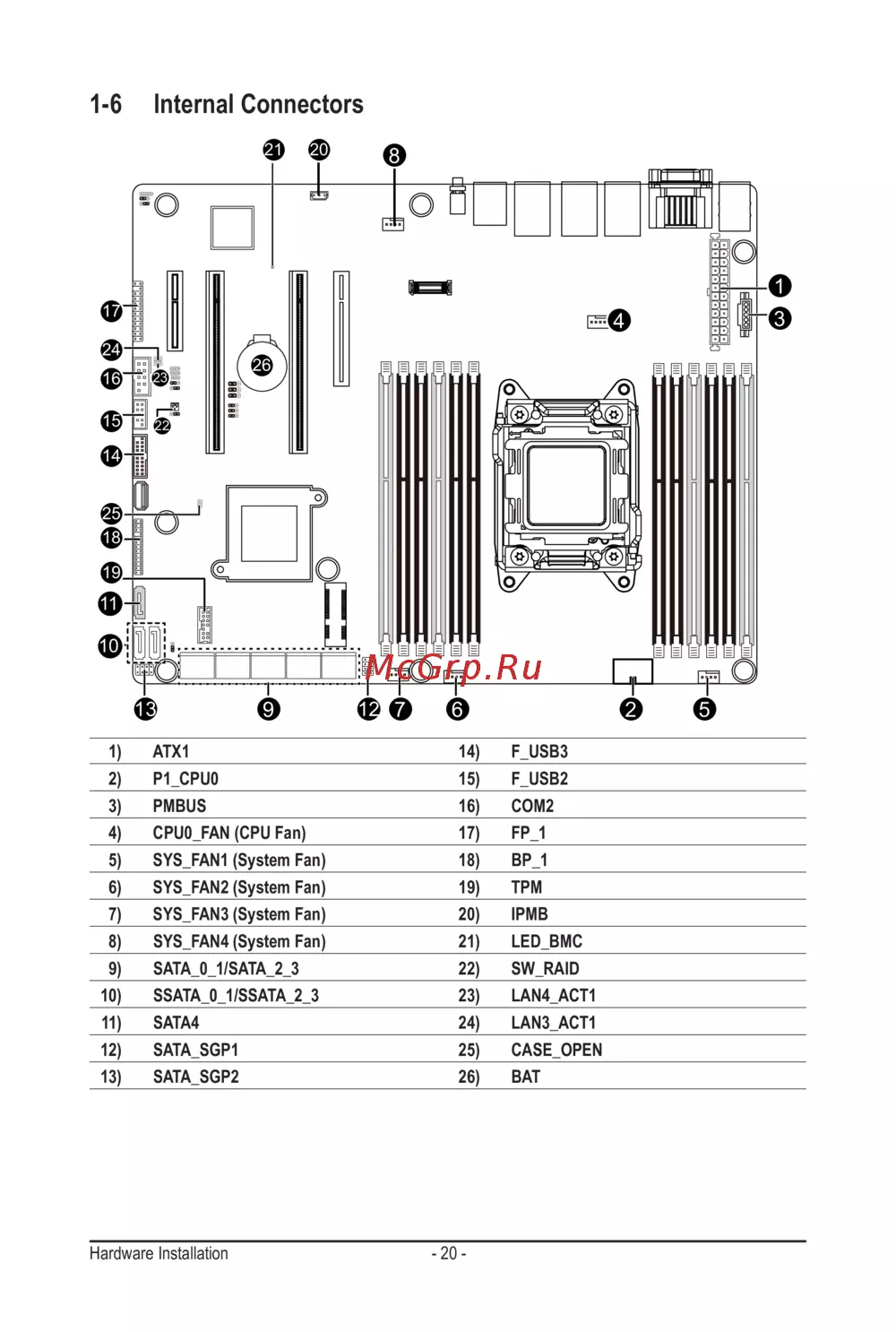

1-6 Internal Connectors

1) ATX1

2) P1_CPU0

3) PMBUS

4) CPU0_FAN (CPU Fan)

5) SYS_FAN1 (System Fan)

6) SYS_FAN2 (System Fan)

7) SYS_FAN3 (System Fan)

8) SYS_FAN4 (System Fan)

9) SATA_0_1/SATA_2_3

10) SSATA_0_1/SSATA_2_3

11) SATA4

12) SATA_SGP1

13) SATA_SGP2

14) F_USB3

15) F_USB2

16) COM2

17) FP_1

18) BP_1

19) TPM

20) IPMB

21) LED_BMC

22) SW_RAID

23) LAN4_ACT1

24) LAN3_ACT1

25) CASE_OPEN

26) BAT

4215

21 20
