Hardware Installation - 26 -

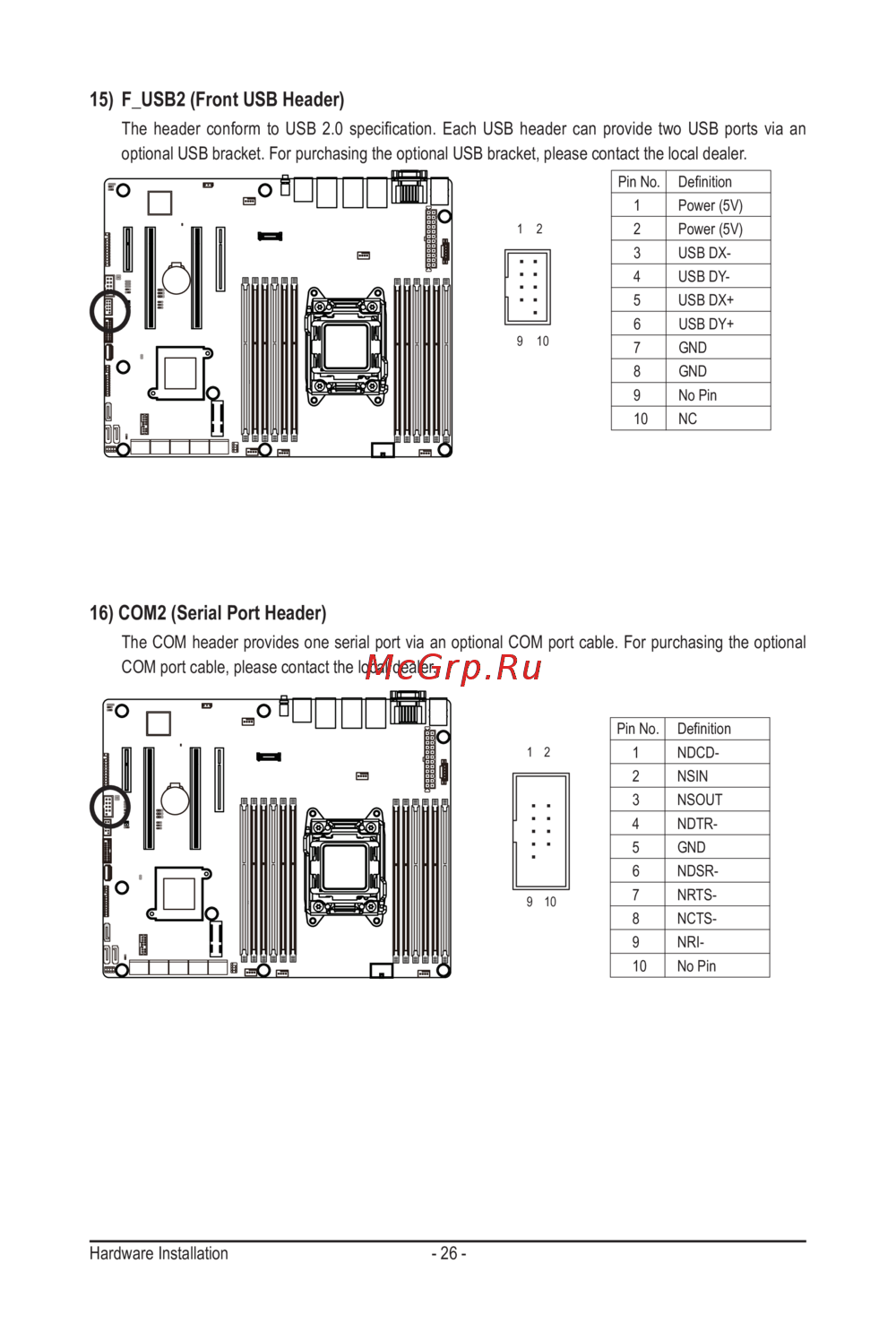

16) COM2 (Serial Port Header)
The COM header provides one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
1 2
9 10
PinNo. Denition
1 NDCD-
2 NSIN
3 NSOUT
4 NDTR-
5 GND
6 NDSR-
7 NRTS-
8 NCTS-
9 NRI-
10 No Pin
PinNo. Denition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 NC
15) F_USB2 (Front USB Header)

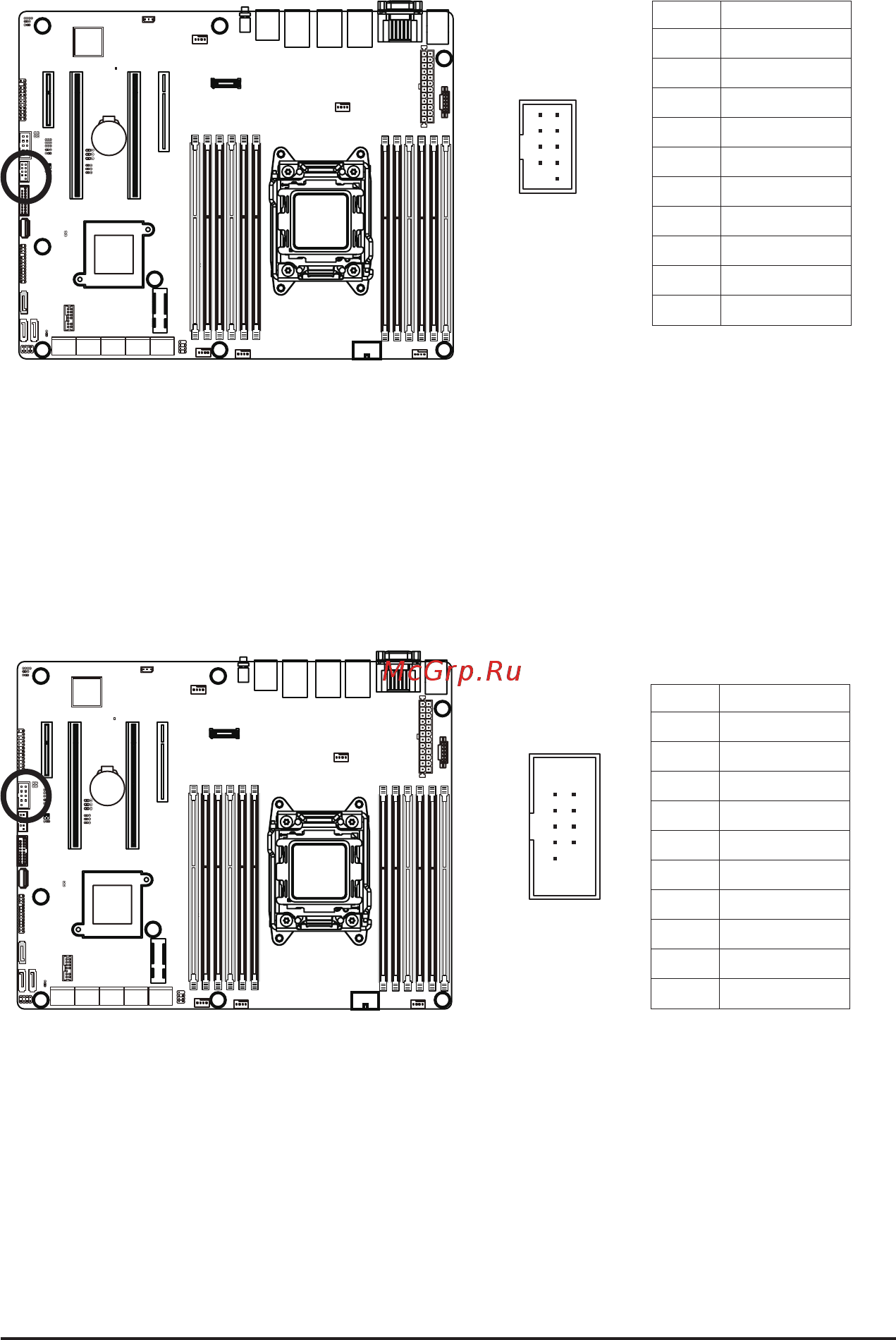

TheheaderconformtoUSB2.0specication.EachUSBheadercanprovidetwoUSBportsviaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
DEBUG
PORT
G.QBOFM
1 2
9 10
