Gigabyte MU70-SU0 (rev. 1.0) [28/125] Hardware installation 28

Hardware Installation - 28 -

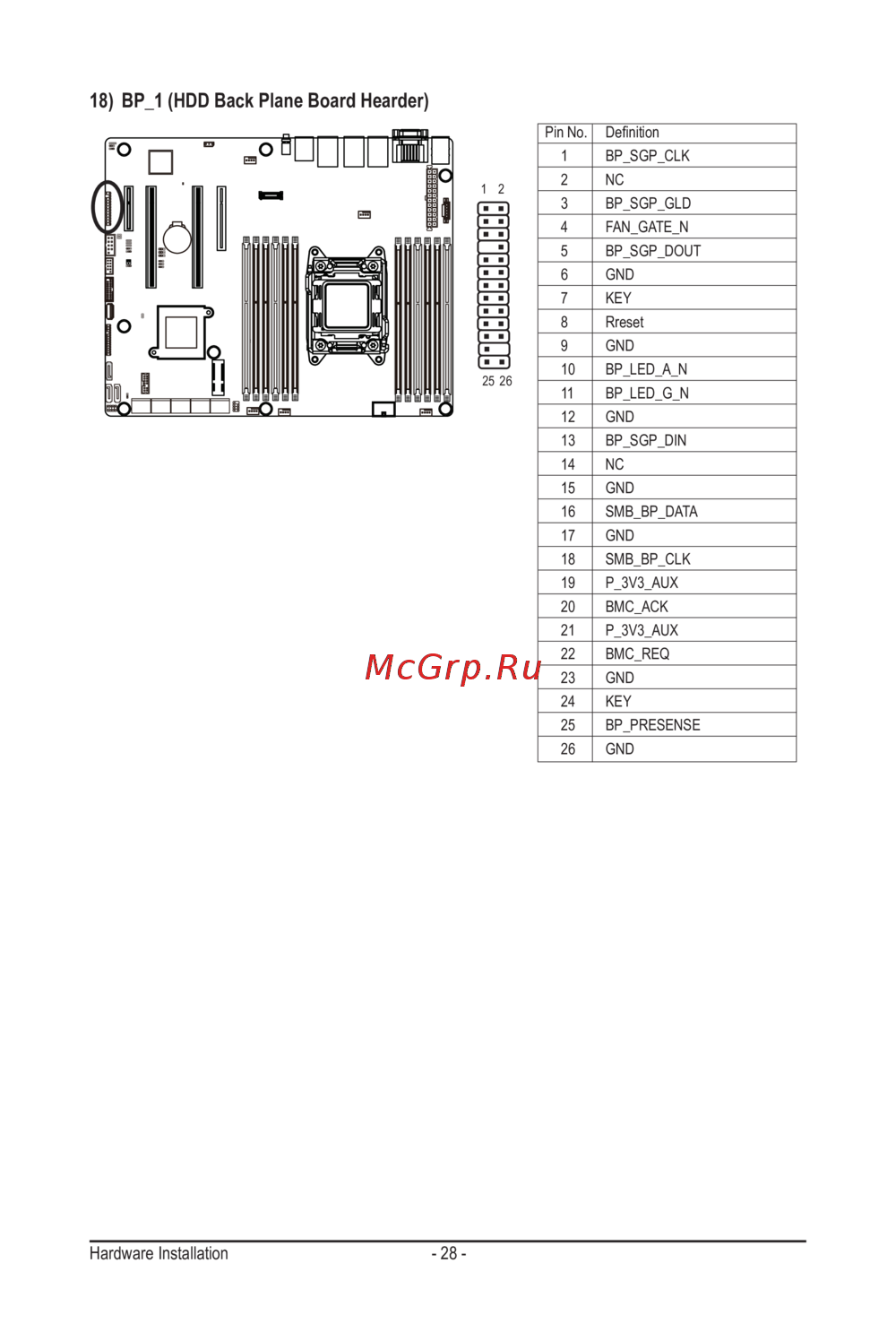

18) BP_1 (HDD Back Plane Board Hearder)

1 2

25 26

PinNo. Denition

1 BP_SGP_CLK

2 NC

3 BP_SGP_GLD

4 FAN_GATE_N

5 BP_SGP_DOUT

6 GND

7 KEY

8 Rreset

9 GND

10 BP_LED_A_N

11 BP_LED_G_N

12 GND

13 BP_SGP_DIN

14 NC

15 GND

16 SMB_BP_DATA

17 GND

18 SMB_BP_CLK

19 P_3V3_AUX

20 BMC_ACK

21 P_3V3_AUX

22 BMC_REQ

23 GND

24 KEY

25 BP_PRESENSE

26 GND
