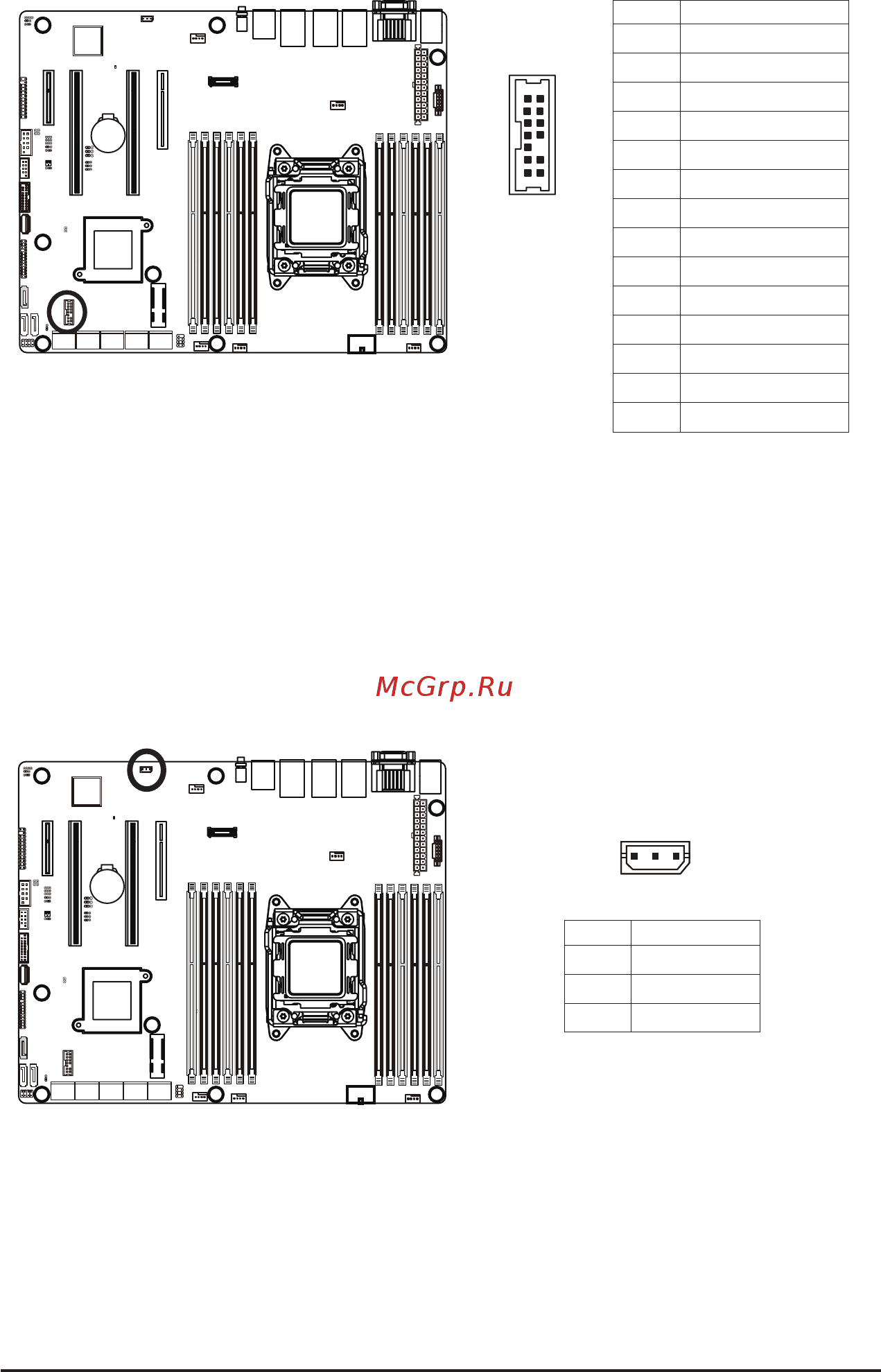

Gigabyte MU70-SU0 (rev. 1.0) [29/125] Ipmb ipmb connector

- 29 - Hardware Installation

PinNo. Denition

1 CLK_33M_TPM

2 P_3V3_AUX

3 LPC_RST

4 P3V3

5 LPC_LAD0

6 IRQ_SERIAL

7 LPC_LAD1

8 TPM_DET_N

9 LPC_LAD2

10 NC

11 LPC_LAD3

12 GND

13 LPC_FRAME_N

14 GND

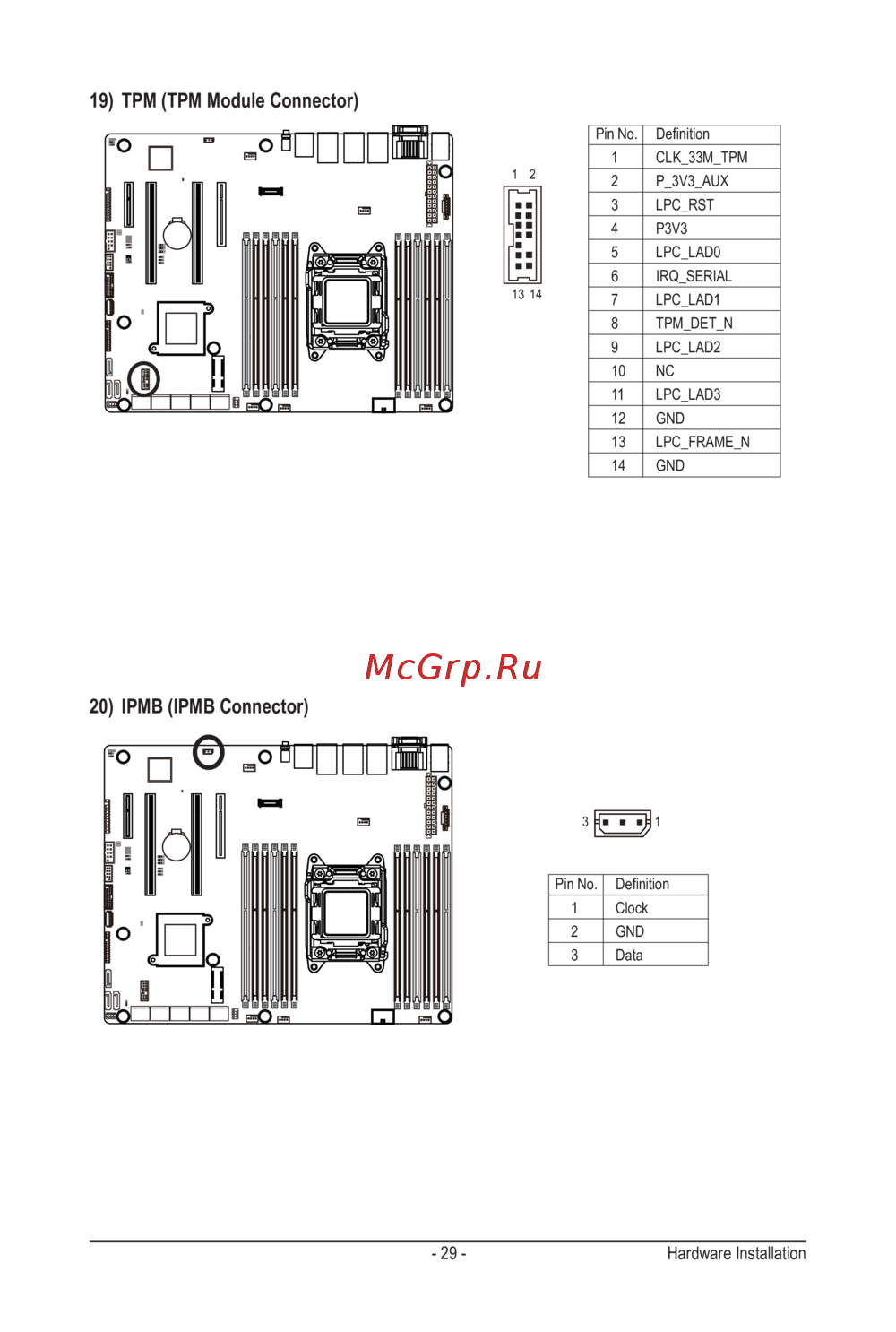

19) TPM (TPM Module Connector)

13 14

20) IPMB (IPMB Connector)

PinNo. Denition

1 Clock

2 GND

3 Data

3 1
