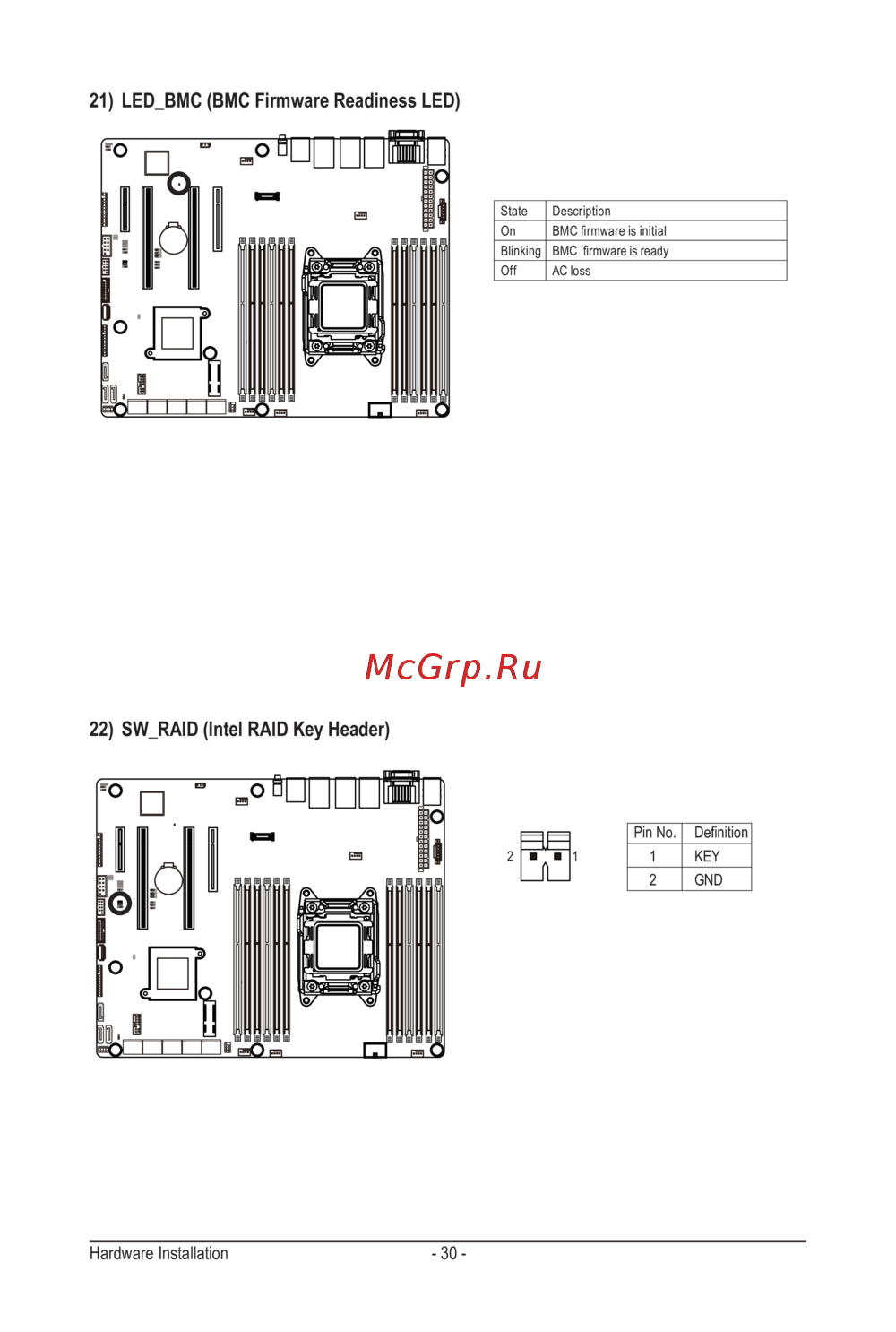

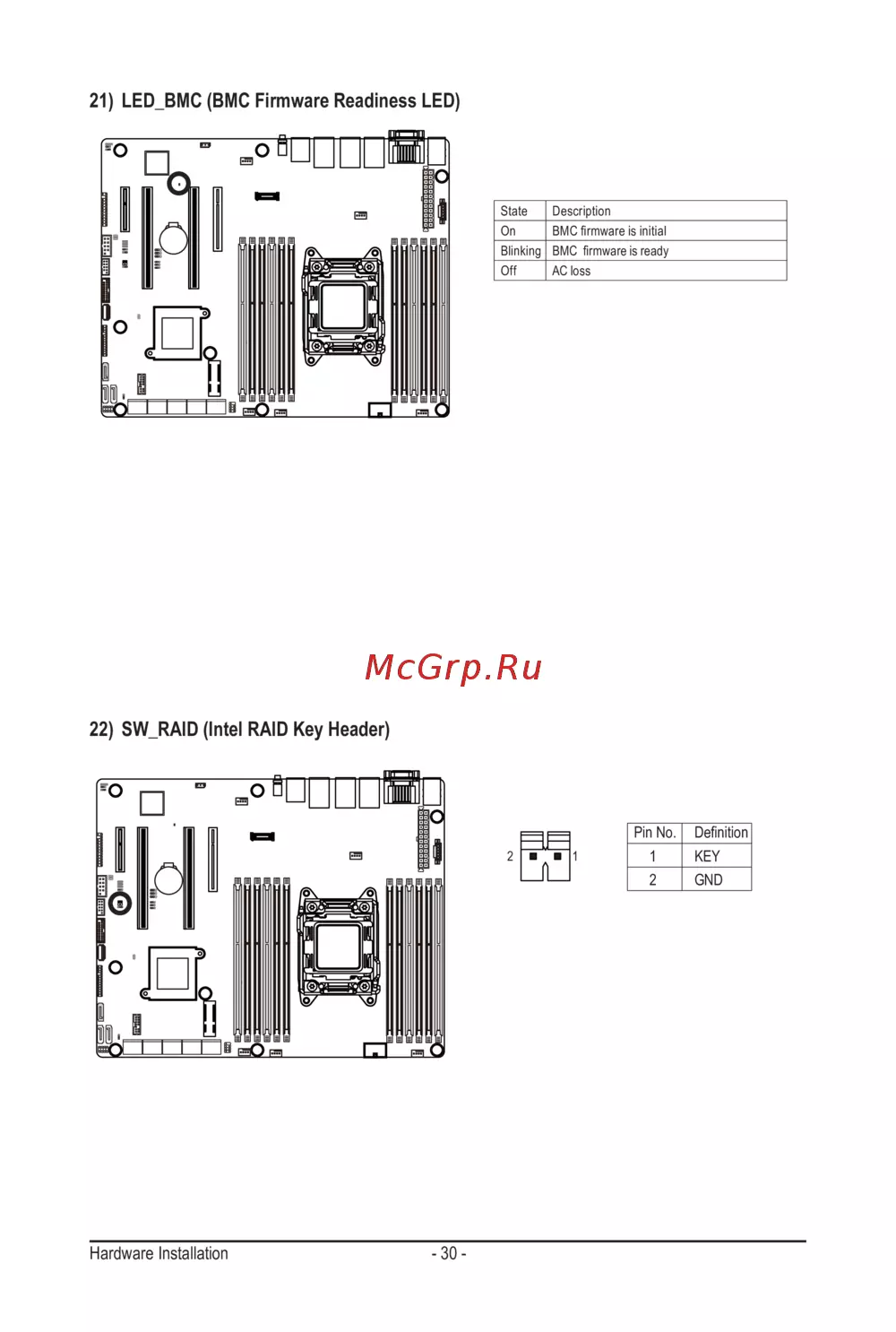

Gigabyte MU70-SU0 (rev. 1.0) [30/125] Sw_raid intel raid key header

Hardware Installation - 30 -

21) LED_BMC (BMC Firmware Readiness LED)

State Description

On BMCrmwareisinitial

Blinking BMCrmwareisready

Off AC loss

PinNo. Denition

1 KEY

2 GND

22) SW_RAID (Intel RAID Key Header)

2 1
