Gigabyte MU70-SU0 (rev. 1.0) [31/125] Case_open chassis intrusion header

- 31 - Hardware Installation

PinNo. Denition

1 LED+

2 LED-

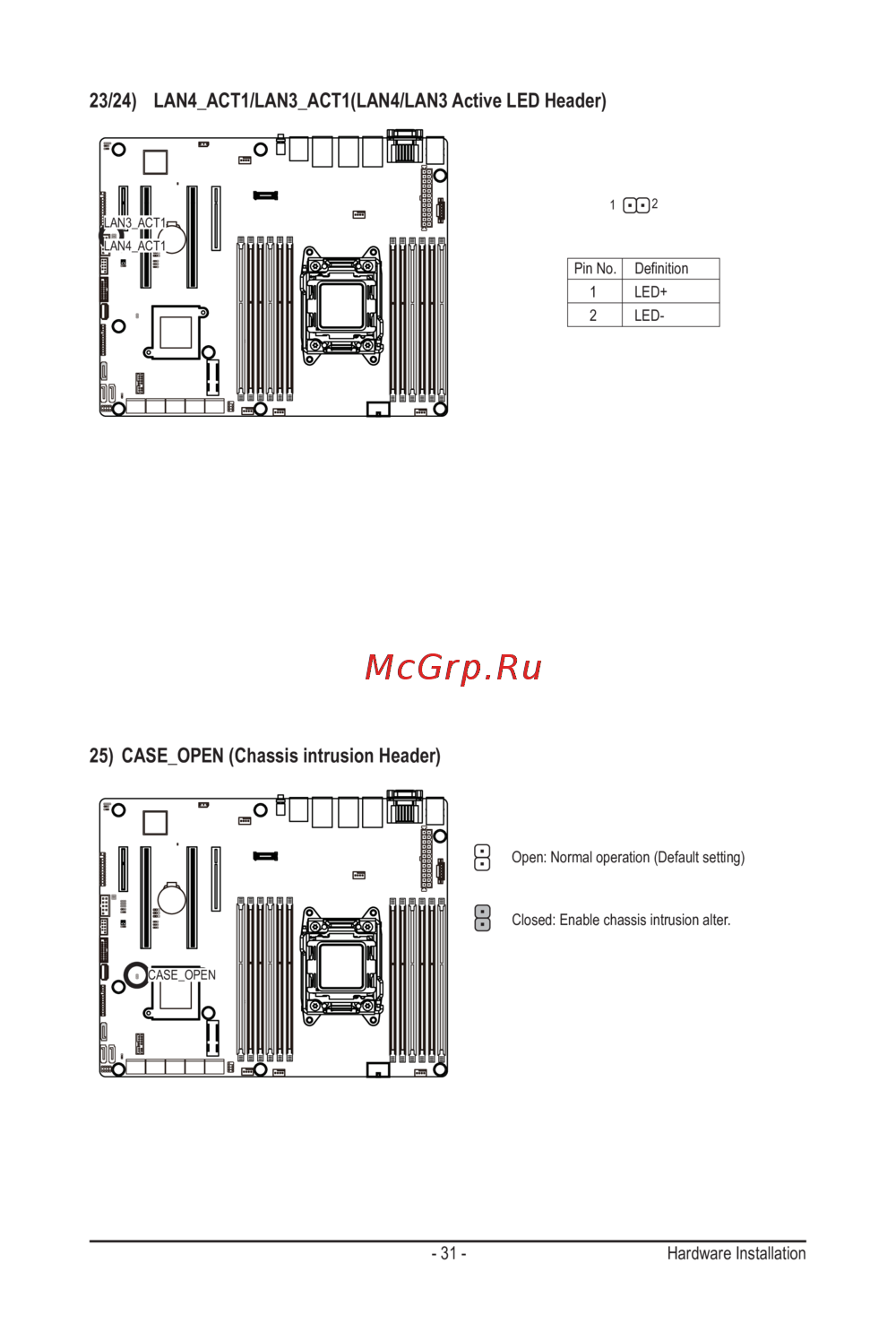

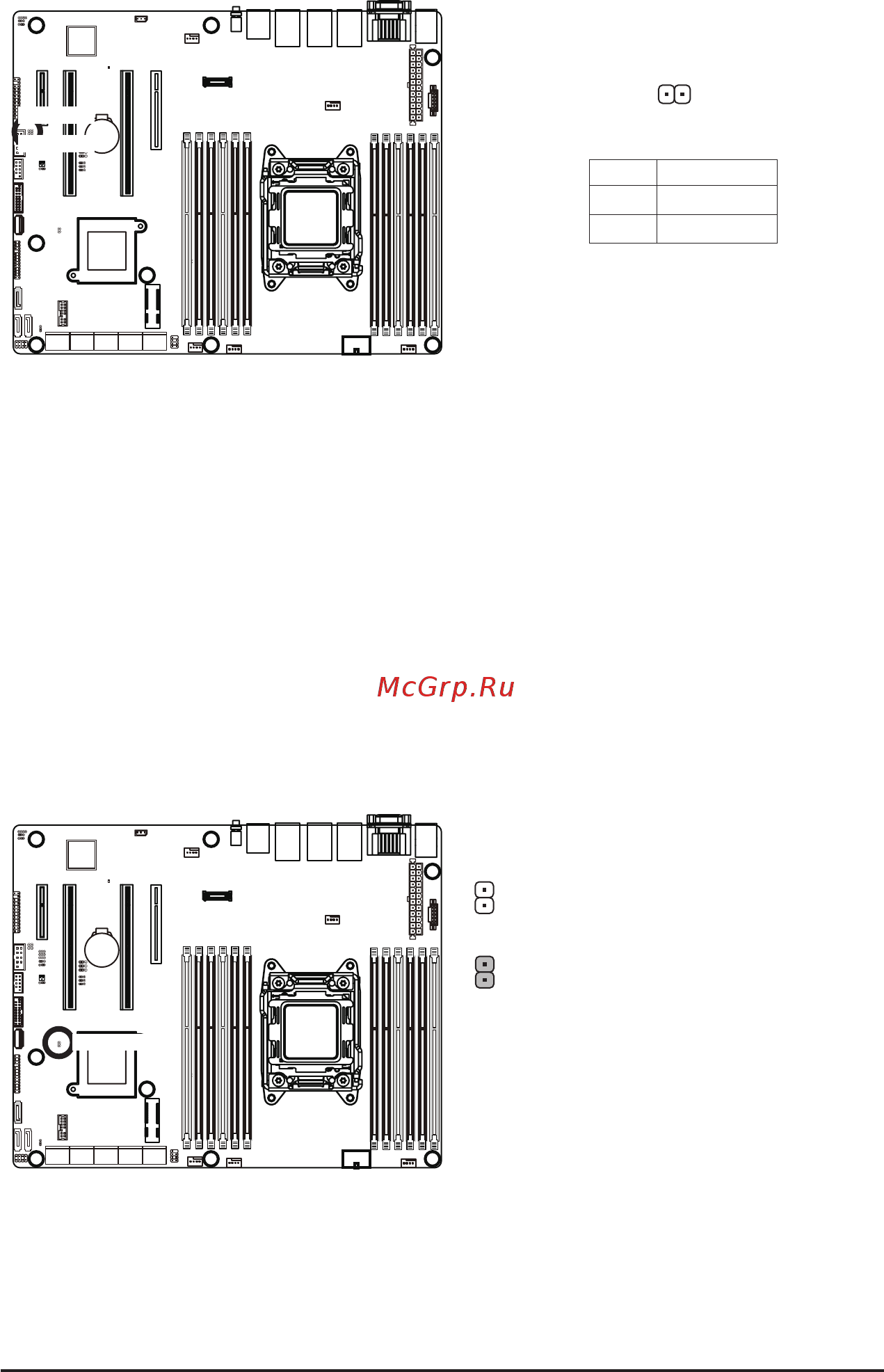

23/24) LAN4_ACT1/LAN3_ACT1(LAN4/LAN3 Active LED Header)

LAN3_ACT1

LAN4_ACT1

25) CASE_OPEN (Chassis intrusion Header)

Open: Normal operation (Default setting)

Closed: Enable chassis intrusion alter.

CASE_OPEN
