- 33 - Hardware Installation

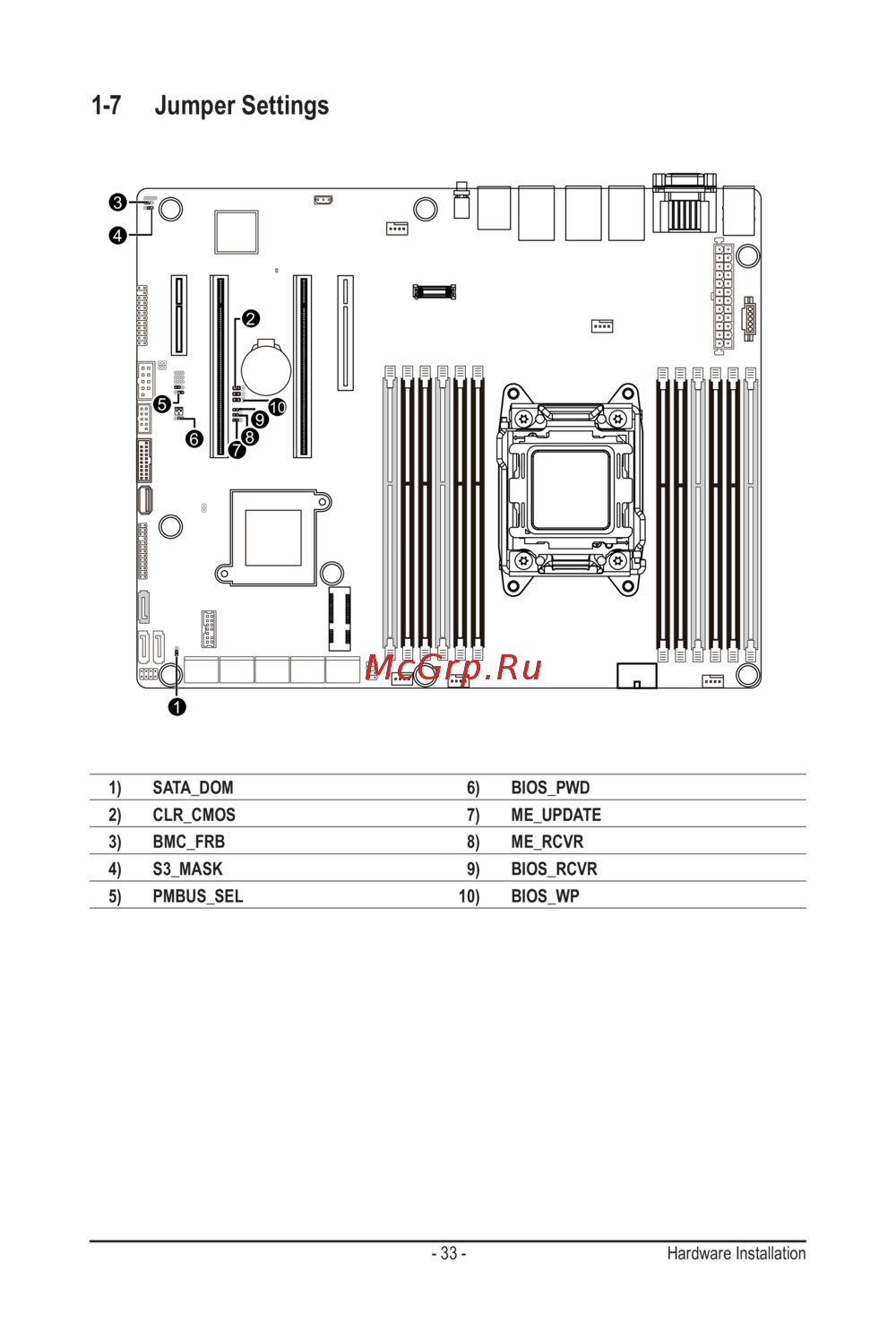

1-7 Jumper Settings

1) SATA_DOM

2) CLR_CMOS

3) BMC_FRB

4) S3_MASK

5) PMBUS_SEL

6) BIOS_PWD

7) ME_UPDATE

8) ME_RCVR

9) BIOS_RCVR

10) BIOS_WP
