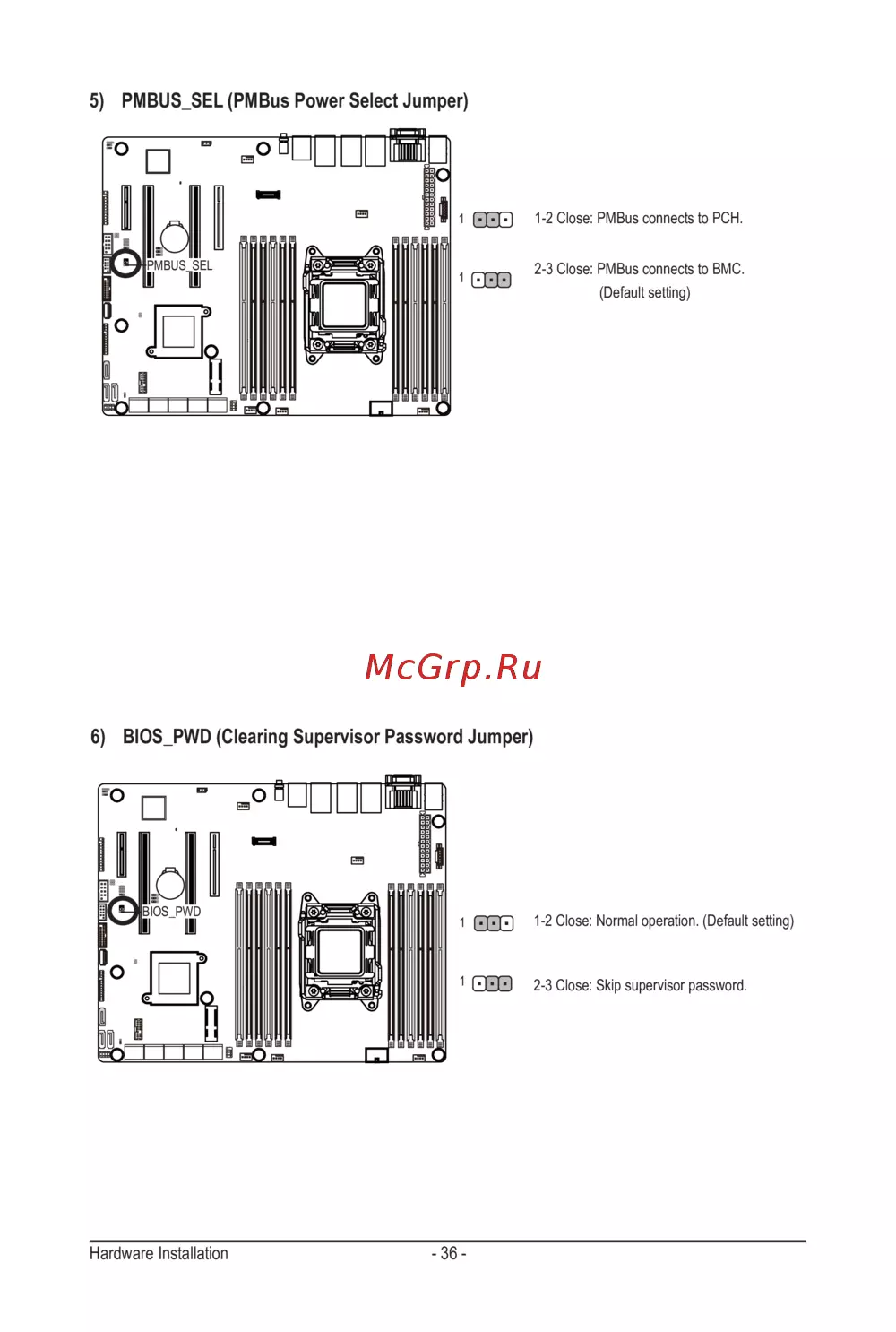

Gigabyte MU70-SU0 (rev. 1.0) [36/125] Pmbus_sel pmbus power select jumper

Hardware Installation - 36 -

2-3 Close: PMBus connects to BMC.

(Default setting)

1-2 Close: PMBus connects to PCH.

5) PMBUS_SEL (PMBus Power Select Jumper)

PMBUS_SEL

6) BIOS_PWD (Clearing Supervisor Password Jumper)

2-3 Close: Skip supervisor password.

1-2 Close: Normal operation. (Default setting)

BIOS_PWD
