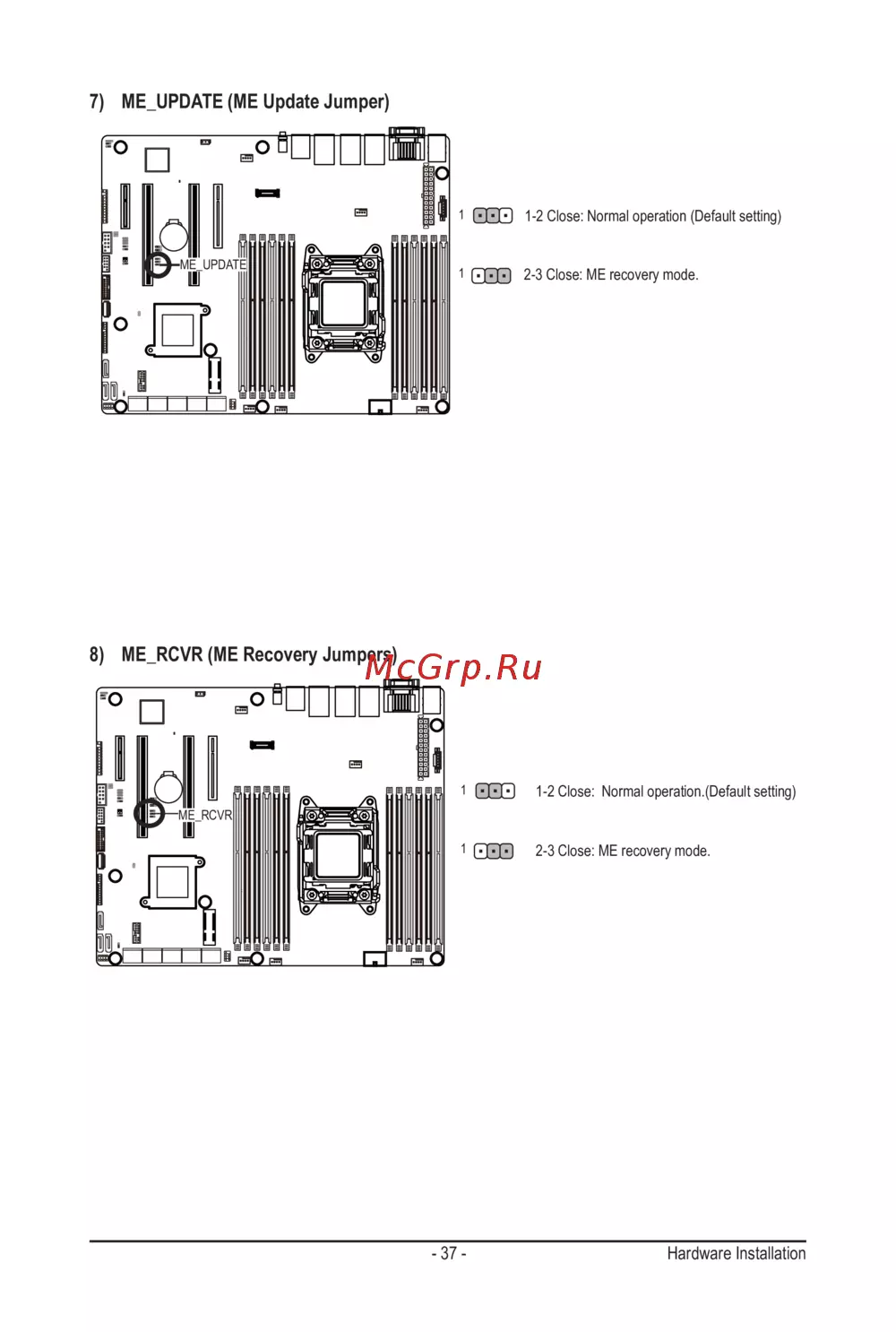

Gigabyte MU70-SU0 (rev. 1.0) [37/125] Me_update me update jumper

- 37 - Hardware Installation

7) ME_UPDATE (ME Update Jumper)

1-2 Close: Normal operation (Default setting)

2-3 Close: ME recovery mode.

ME_UPDATE

8) ME_RCVR (ME Recovery Jumpers)

1-2 Close: Normal operation.(Default setting)

2-3 Close: ME recovery mode.

ME_RCVR
