Gigabyte MU70-SU0 (rev. 1.0) [38/125] Hardware installation 38

Hardware Installation - 38 -

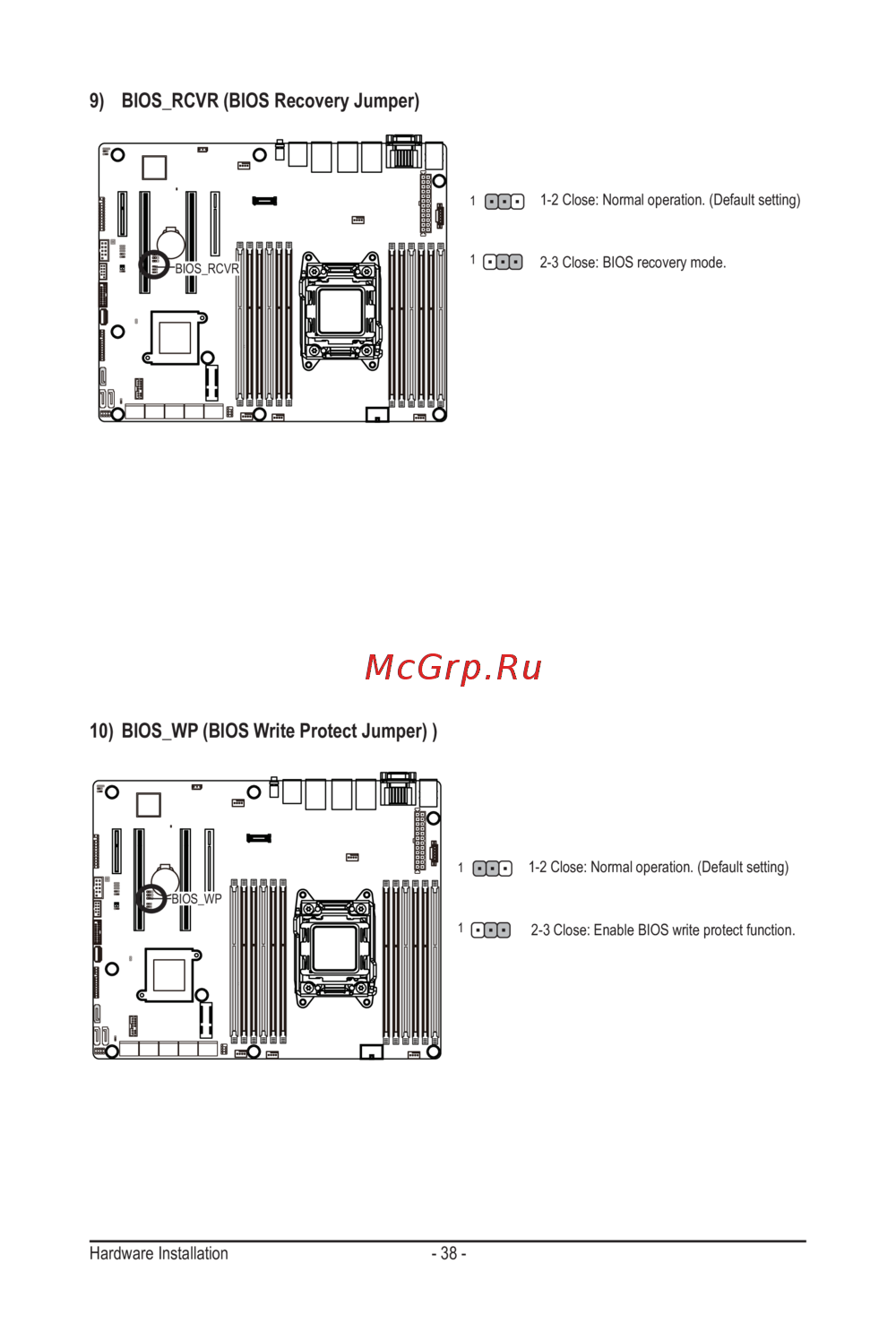

9) BIOS_RCVR (BIOS Recovery Jumper)

BIOS_WP

1-2 Close: Normal operation. (Default setting)

2-3 Close: Enable BIOS write protect function.

10) BIOS_WP (BIOS Write Protect Jumper) )

2-3 Close: BIOS recovery mode.

1-2 Close: Normal operation. (Default setting)

BIOS_RCVR
