Gigabyte MU70-SU0 (rev. 1.0) [43/125] System date

- 43 - BIOS Setup

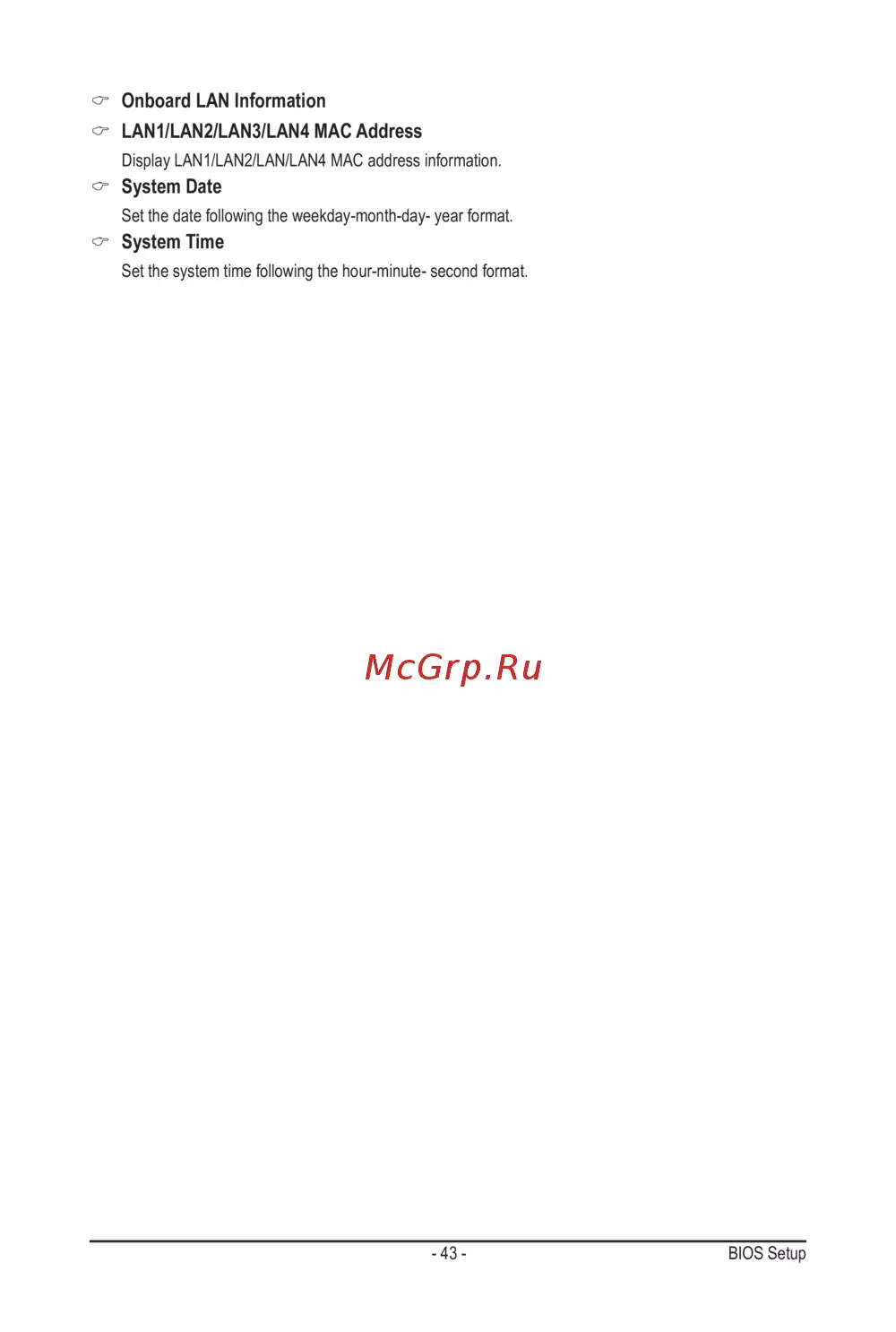

Onboard LAN Information

LAN1/LAN2/LAN3/LAN4 MAC Address

Display LAN1/LAN2/LAN/LAN4 MAC address information.

System Date

Set the date following the weekday-month-day- year format.

System Time

Set the system time following the hour-minute- second format.
