Gigabyte MU70-SU0 (rev. 1.0) [44/125] 2 advanced menu

BIOS Setup - 44 -

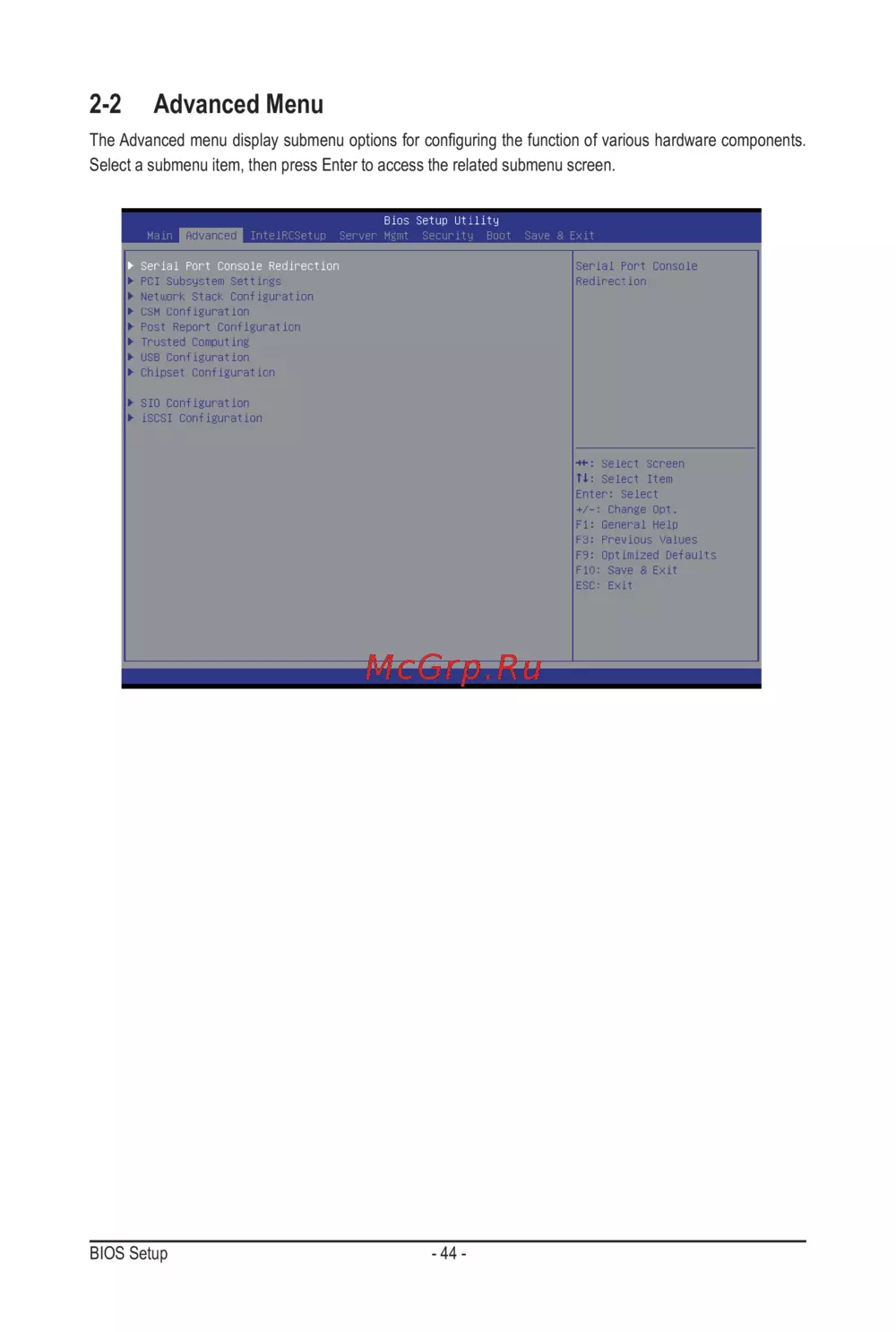

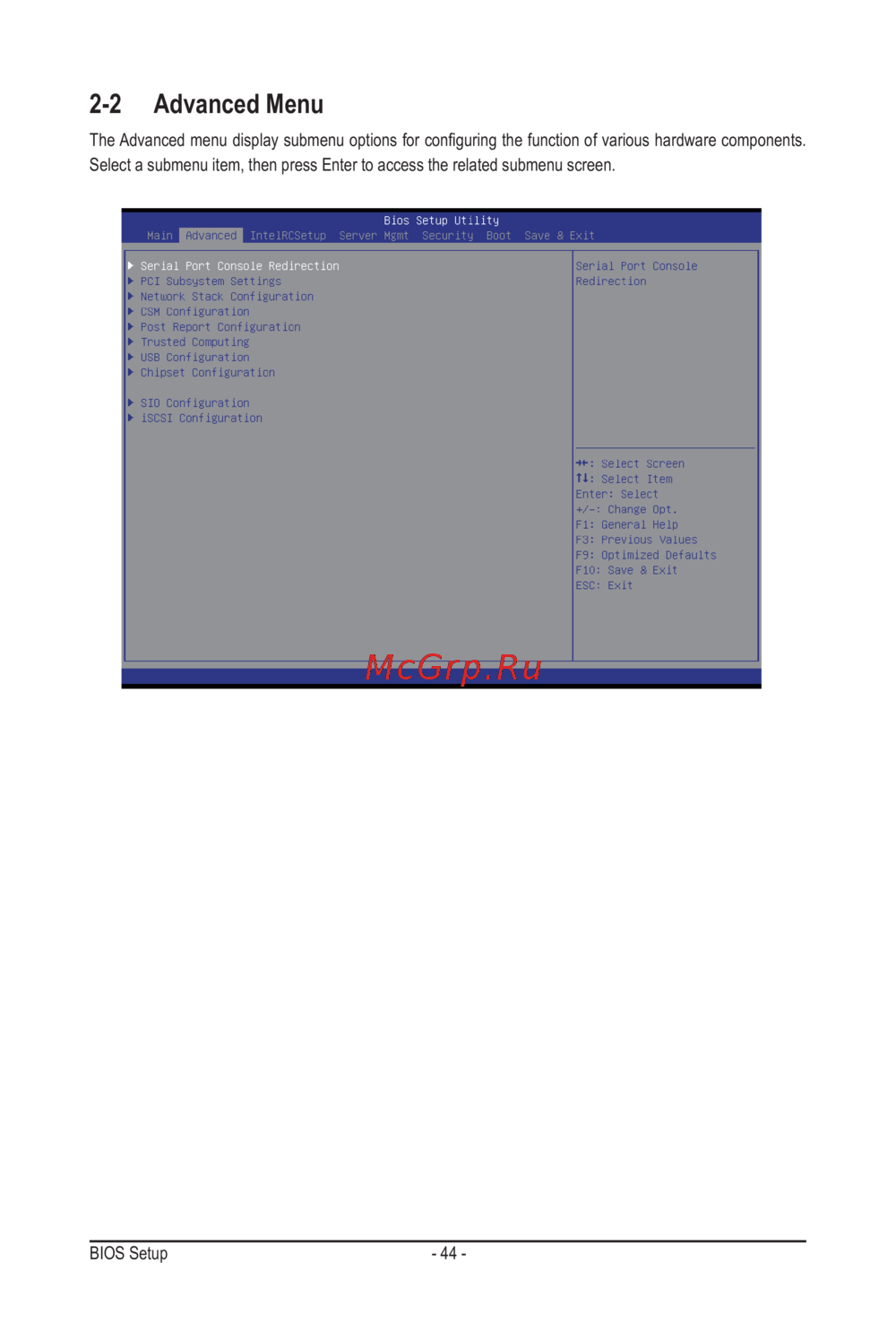

2-2 Advanced Menu

TheAdvancedmenudisplaysubmenuoptionsforconguringthefunctionofvarioushardwarecomponents.

Select a submenu item, then press Enter to access the related submenu screen.
