Gigabyte MU70-SU0 (rev. 1.0) [56/125] Post report configuration error message report post error message

BIOS Setup - 56 -

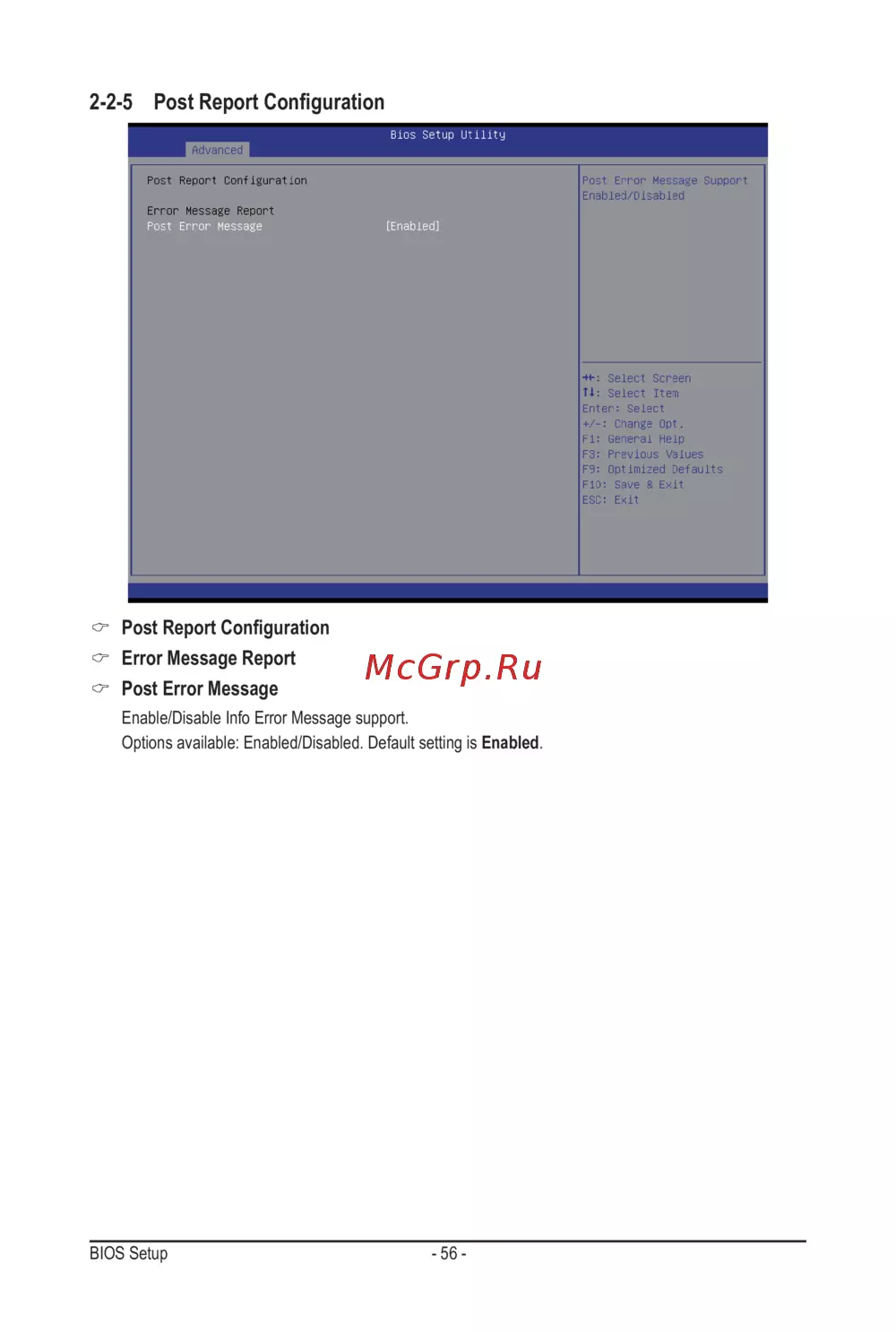

2-2-5 Post Report Conguration

Post Report Conguration

Error Message Report

Post Error Message

Enable/Disable Info Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
