Gigabyte MU70-SU0 (rev. 1.0) [64/125] Iscsi initiator name add an attempts

BIOS Setup - 64 -

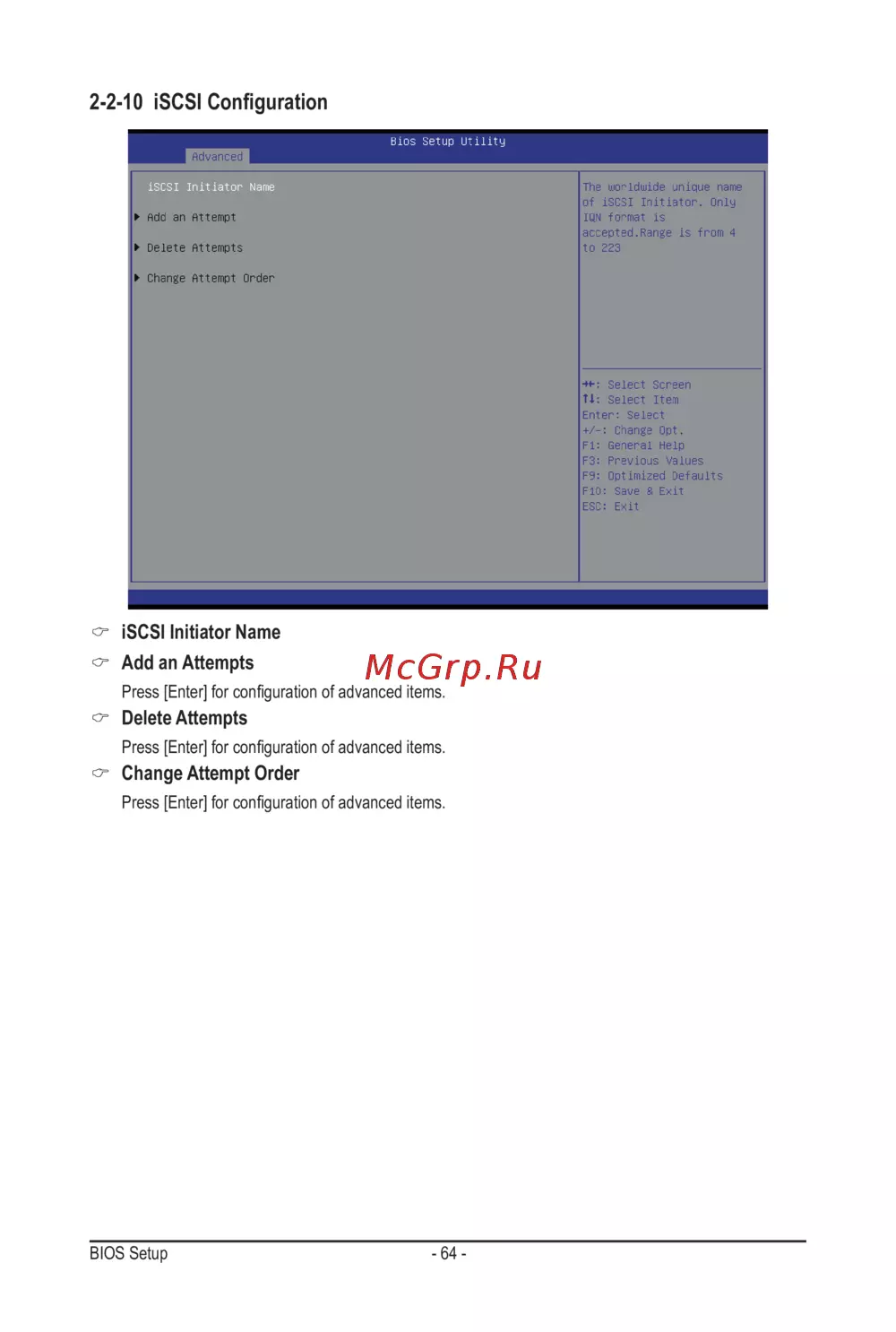

2-2-10 iSCSI Conguration

iSCSI Initiator Name

Add an Attempts

 Press[Enter]forcongurationofadvanceditems.

Delete Attempts

 Press[Enter]forcongurationofadvanceditems.

Change Attempt Order

 Press[Enter]forcongurationofadvanceditems.
