Gigabyte MU70-SU0 (rev. 1.0) [65/125] Rc revision

- 65 - BIOS Setup

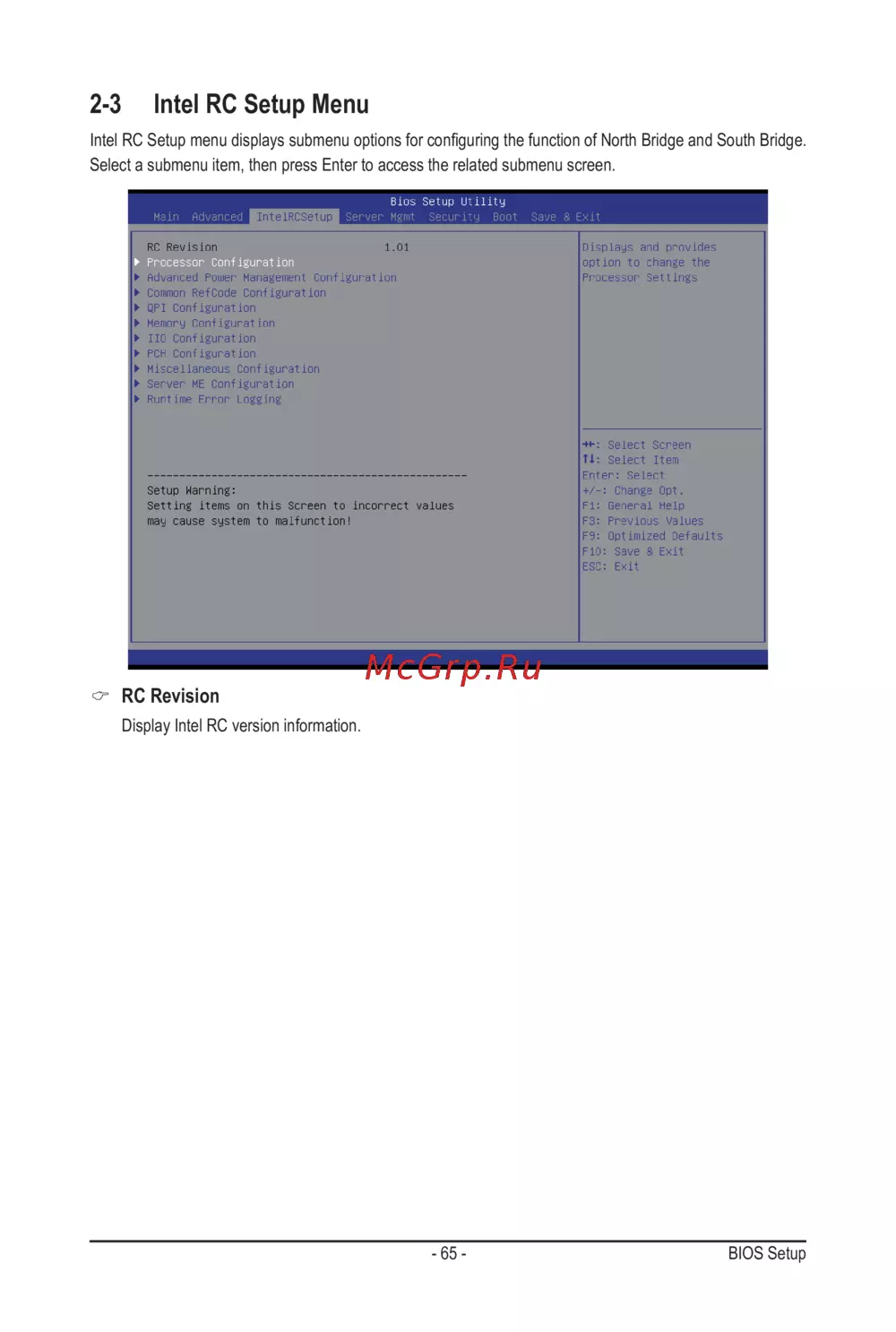

2-3 Intel RC Setup Menu

IntelRCSetupmenudisplayssubmenuoptionsforconguringthefunctionofNorthBridgeandSouthBridge.

Select a submenu item, then press Enter to access the related submenu screen.

RC Revision

Display Intel RC version information.
